Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66090 |

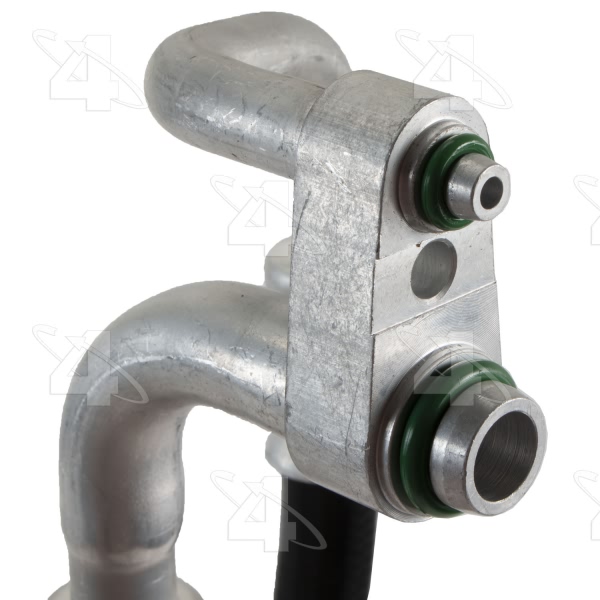

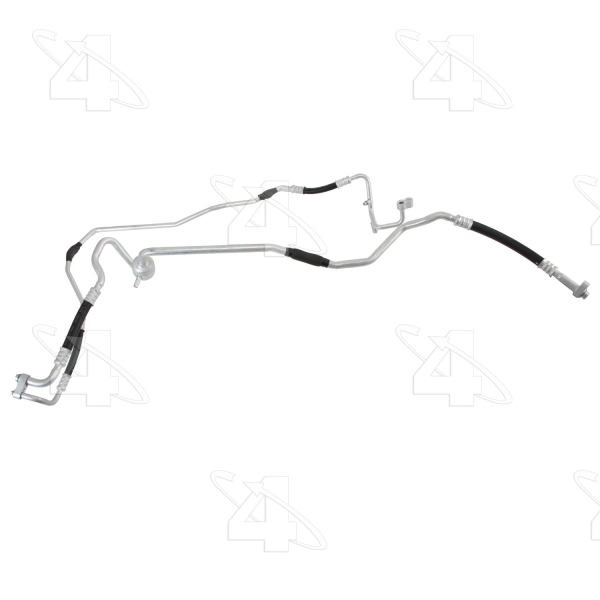

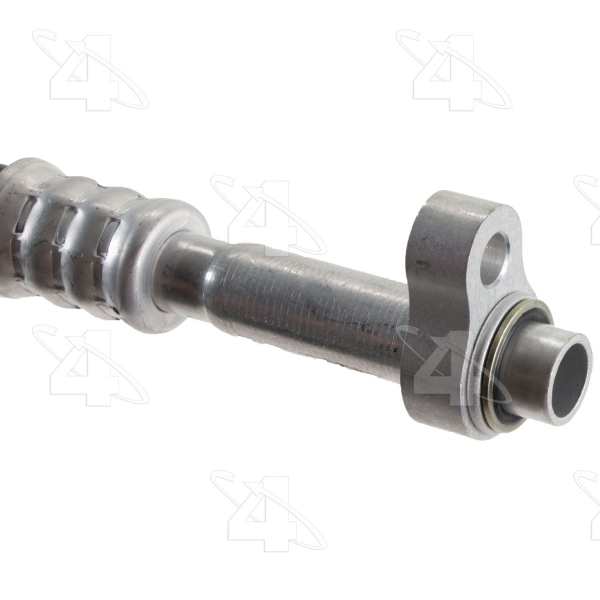

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/ Muffler |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24606] / Green O-Ring |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |

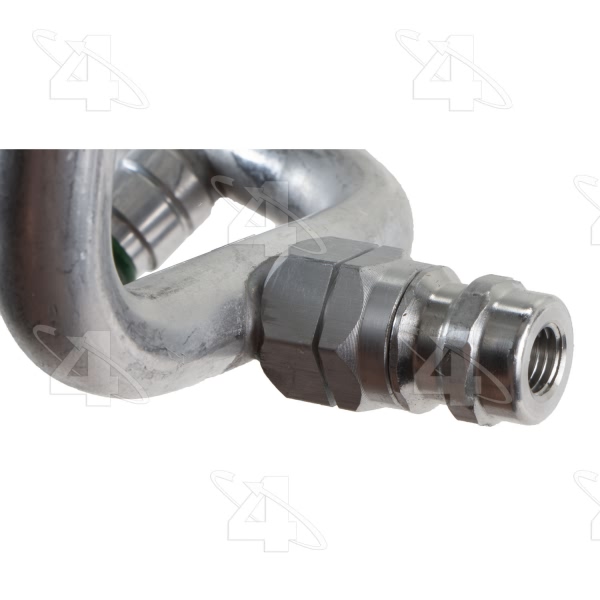

Service Port Type | QDC |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 10 |
Suction End Type | Male Springlock |
Sve Port Low Side | Low Side |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361094185 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Saturn L100 | All Trims | All Engines |
2001-2003 Saturn L200 | All Trims | All Engines |
2001-2005 Saturn L300 | All Trims | All Engines |
2000 Saturn LS | All Trims | All Engines |
2000 Saturn LS1 | All Trims | All Engines |
2000 Saturn LS2 | All Trims | All Engines |
2000 Saturn LW1 | All Trims | All Engines |
2000 Saturn LW2 | All Trims | All Engines |
2001-2003 Saturn LW200 | All Trims | All Engines |
2001-2003 Saturn LW300 | All Trims | All Engines |
