Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56903 |

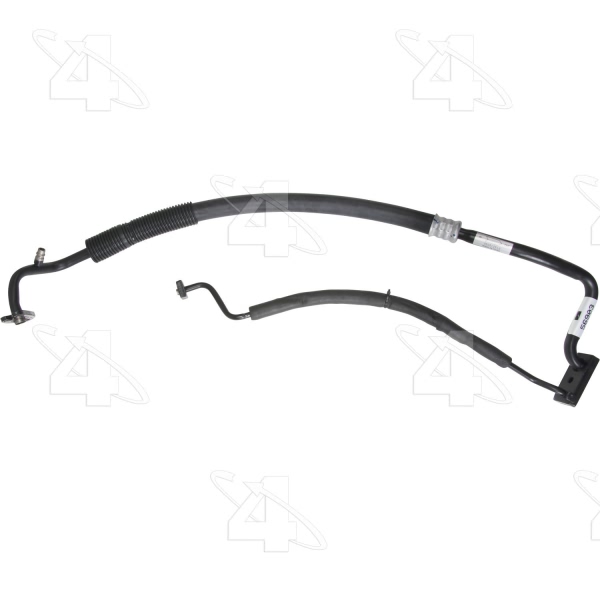

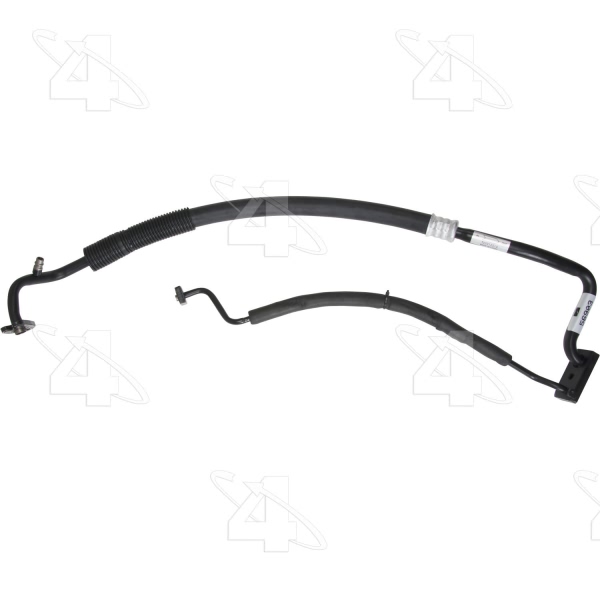

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | Block |
End 2 Type | Sealing Washer |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/ Manifold |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24124] / Filter Drier Flange Port Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24138] / Gasket |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24134] / Compressor Manifold Port Gasket |
O-Ring C Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Suction, Liquid |
Suction End Type | Flange |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361569034 |
Year Make Model | Trim | Engine |
---|---|---|
1991-1993 Chrysler Daytona | All Trims | 6 Cyl 3.0L |
1991-1994 Chrysler LeBaron | All Trims | 6 Cyl 3.0L |
1995 Chrysler LeBaron | All Trims | All Engines |
1991-1993 Dodge Daytona | All Trims | 6 Cyl 3.0L |
1992-1994 Dodge Shadow | All Trims | 6 Cyl 3.0L |
1991 Dodge Spirit | All Trims | 6 Cyl 3.0L |
1993-1994 Dodge Spirit | All Trims | 6 Cyl 3.0L |
1994 Plymouth Acclaim | All Trims | 6 Cyl 3.0L |
1992-1994 Plymouth Sundance | All Trims | 6 Cyl 3.0L |
