Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56889 |

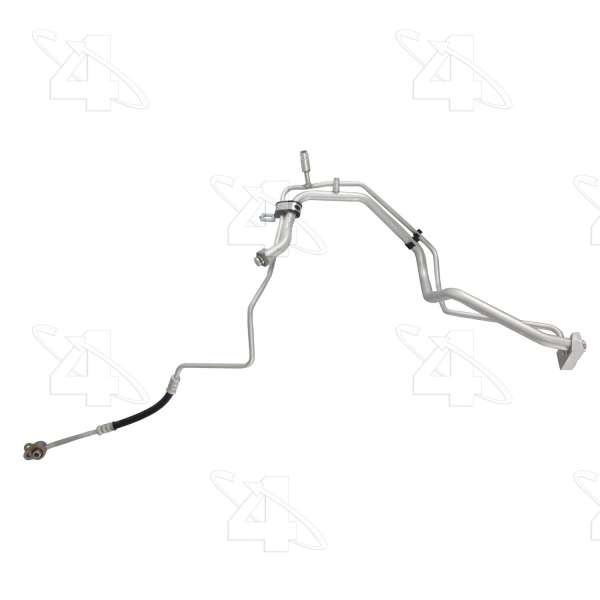

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | Capture O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24069] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24404] / Slimline Washer |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24402] / Slimline Washer |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 2 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 10 |
Suction End Type | Male P-Nut |
Svc Port High Side | High Side |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361072619 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2014 Ford F-150 | All Trims | All Engines |
2011-2014 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
2011-2014 Ford F-350 | All Trims | All Engines |
2011-2014 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
2011-2014 Ford Lobo | All Trims | All Engines |
