Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56799 |

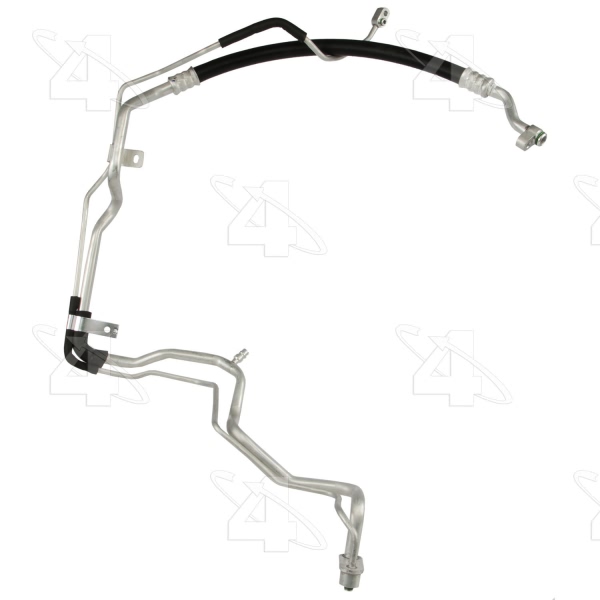

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | Captured O-Ring |
Manifold | w/ Manifold |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24681] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24611] / Green O-Ring |
O-Ring B Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |

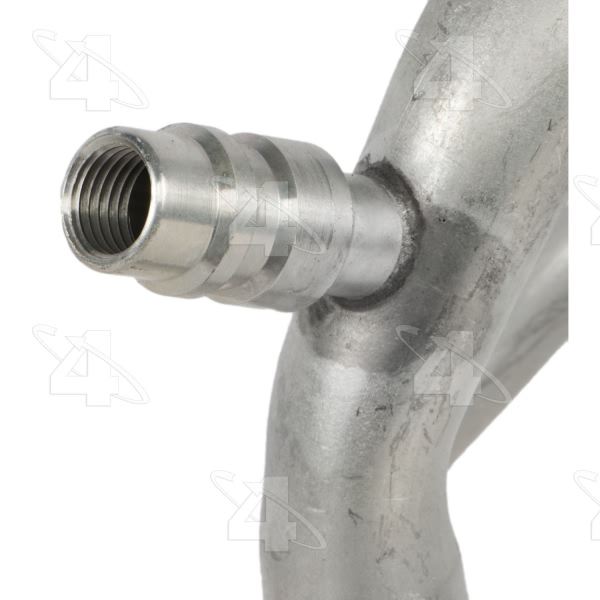

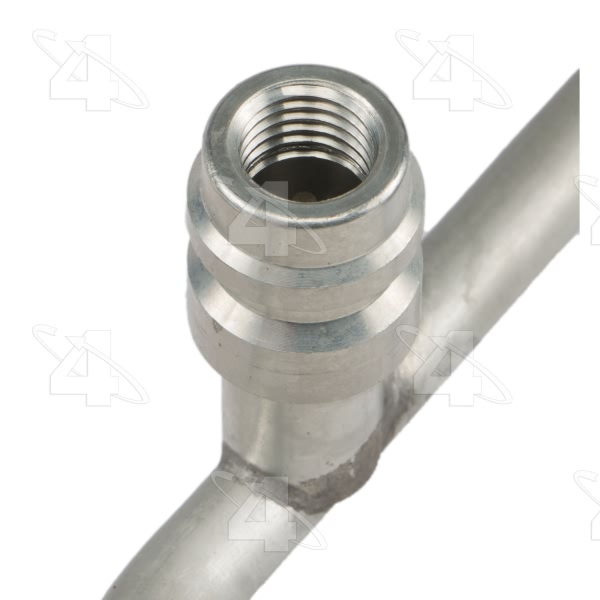

Service Port | w/ Service Port |
Service Port Type | QDC |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 10 |
Suction End Type | P-Nut Fitting |
Svc Port High Side | High Side |
Sve Port Low Side | Low Side |
Switch Port Quantity | 2 |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361567993 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Honda Civic | All Trims | 4 Cyl 1.3L |
