Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56574 |

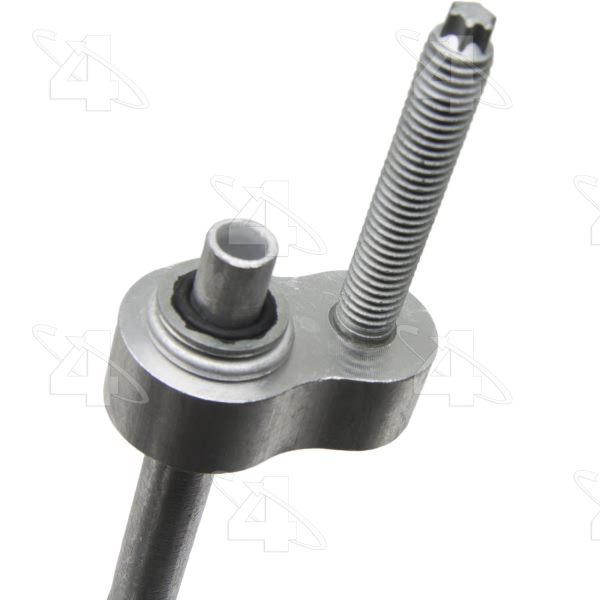

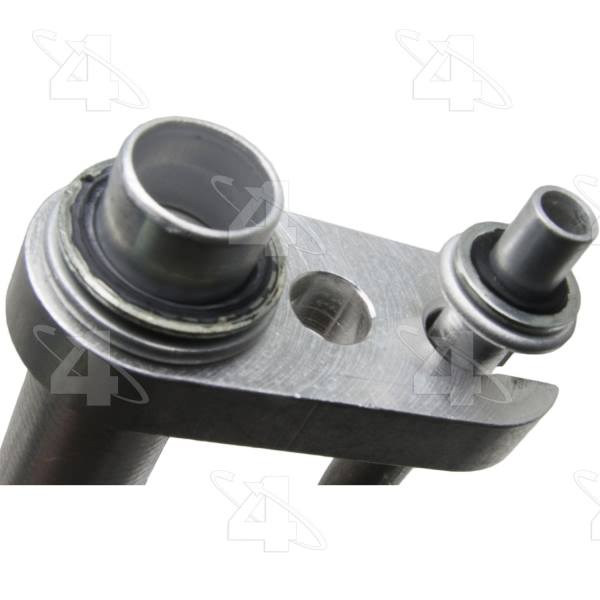

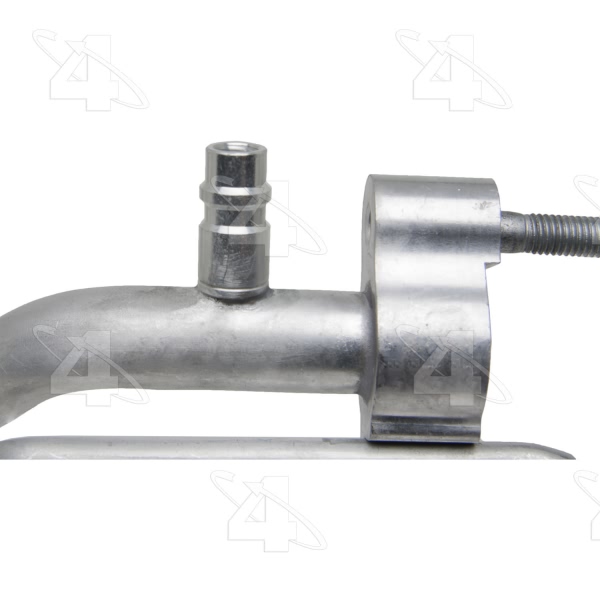

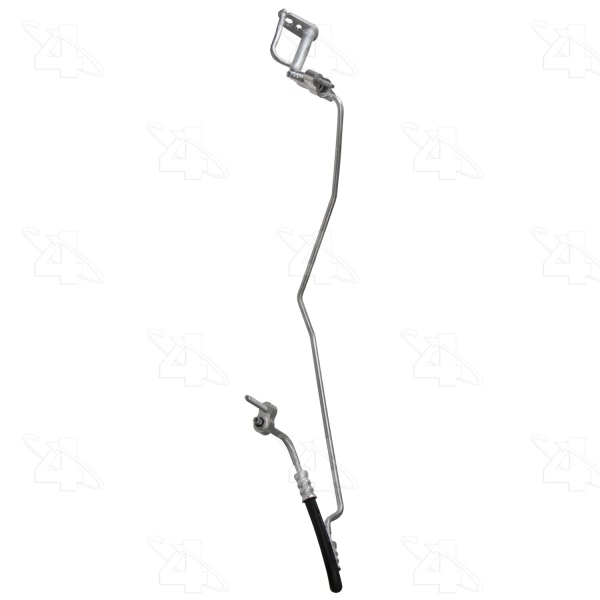

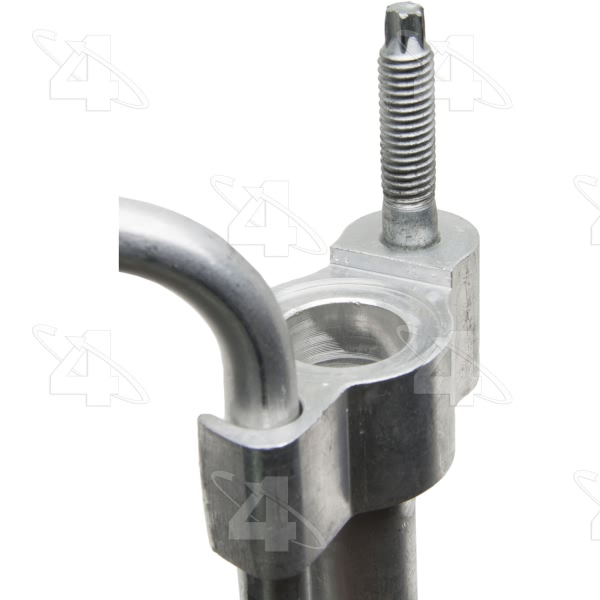

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 12 |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361565746 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2013 Chevrolet Camaro | All Trims | All Engines |
2014-2015 Chevrolet Camaro | All Trims | 6 Cyl 3.6L |
2014-2015 Chevrolet Camaro | All Trims | 8 Cyl 6.2L |
