Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56505 |

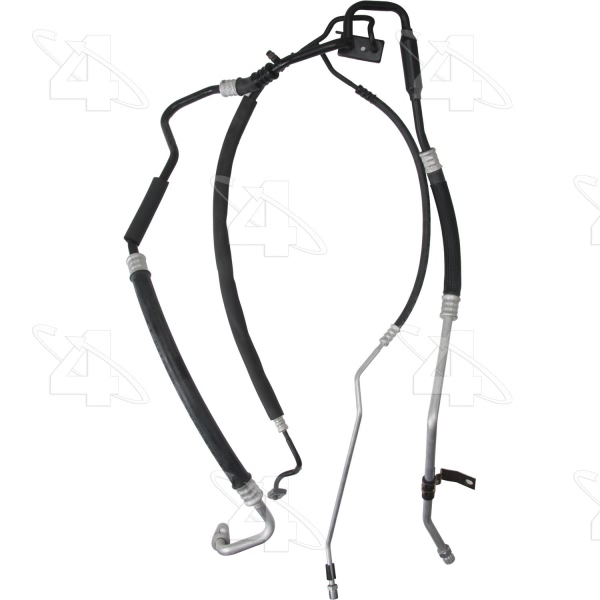

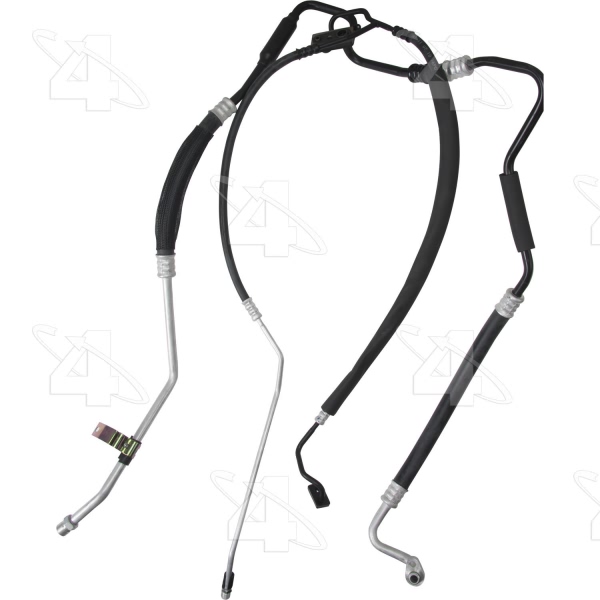

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | Male O-Ring |
End 2 Type | Male Insert O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/o Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 2 |
O-Ring C Number/Desc | [24124] / Filter Drier Flange Port Gasket |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24138] / Gasket |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |

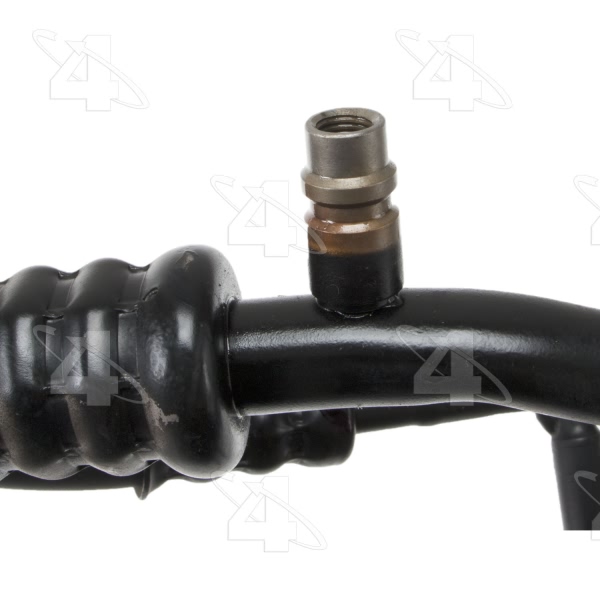

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 8 |

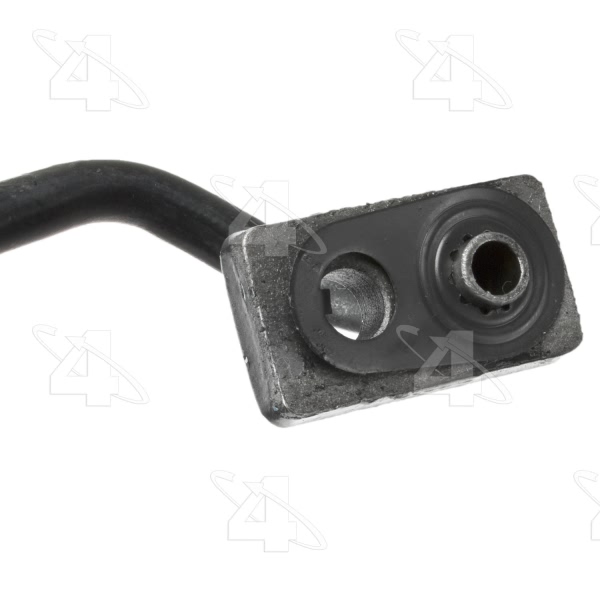

Suction End Type | Block |
Sve Port Low Side | Low Side |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361565050 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Dodge Caravan | All Trims | 6 Cyl 3.3L |
1995 Dodge Grand Caravan | All Trims | 6 Cyl 3.3L |
1995 Plymouth Grand Voyager | All Trims | 6 Cyl 3.3L |
1995 Plymouth Voyager | All Trims | 6 Cyl 3.3L |
