Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56280 |

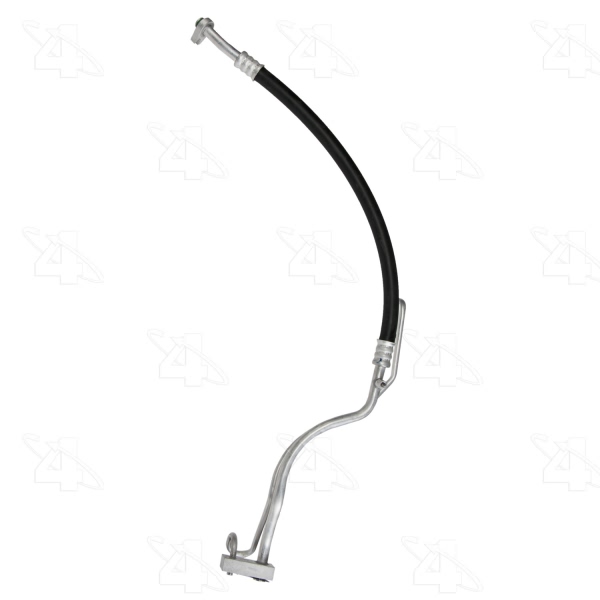

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |

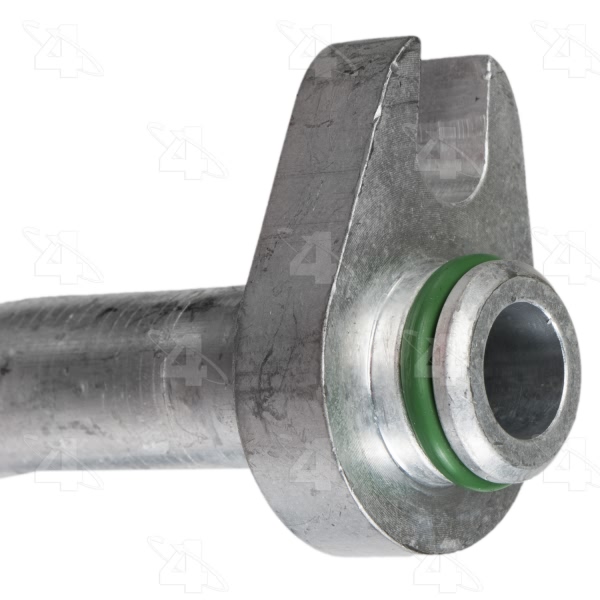

End 1 Type | Flange |

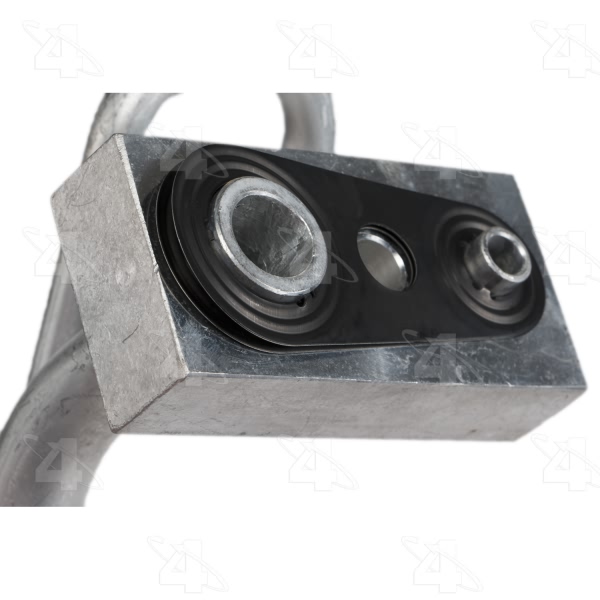

End 2 Type | Block |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |

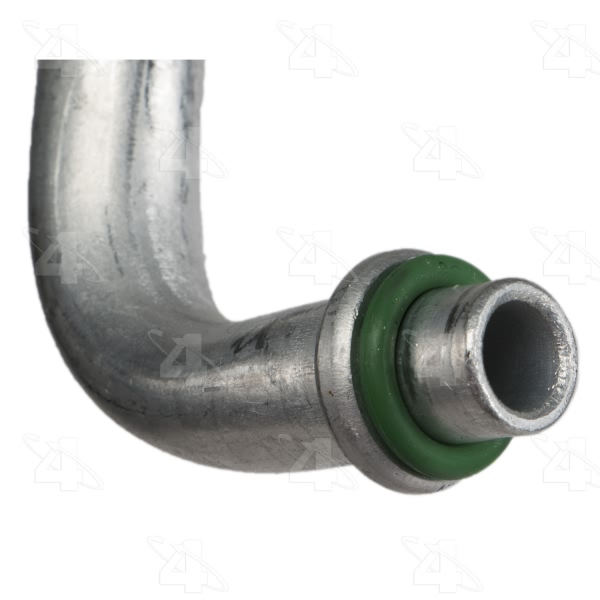

O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24150] / Black O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24138] / Gasket |
O-Ring C Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |

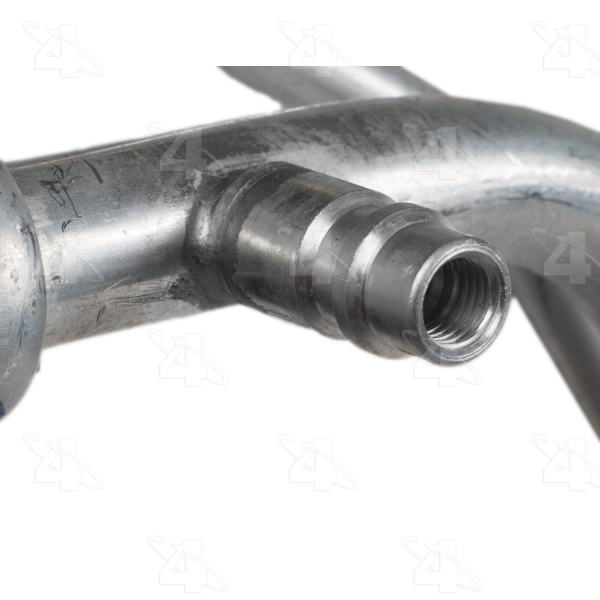

Service Port | w/ Service Port |
Service Port Qty | 1 |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 10 |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361562806 |
Year Make Model | Trim | Engine |
---|---|---|
1997-1999 Dodge Neon | All Trims | All Engines |
1997-1999 Plymouth Neon | All Trims | All Engines |
