Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56042 |

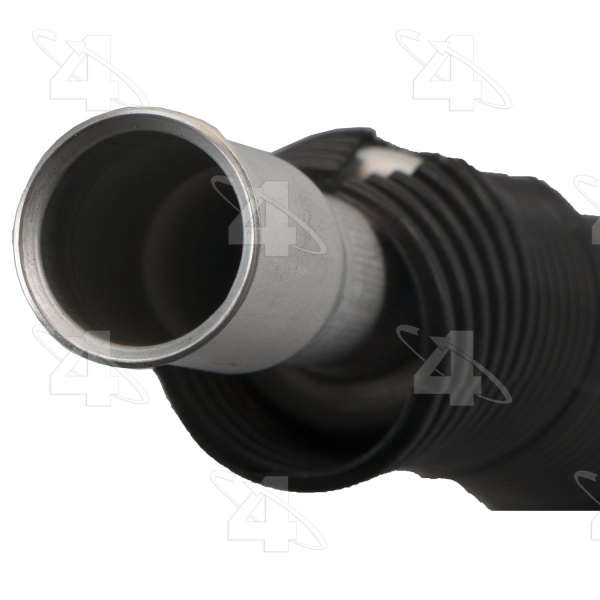

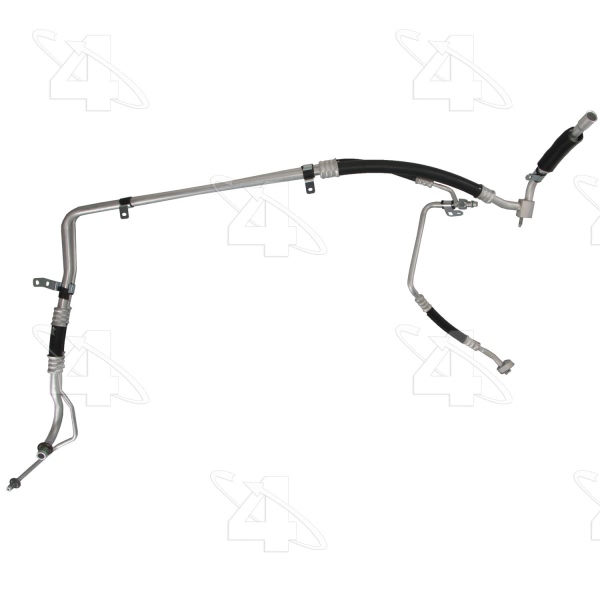

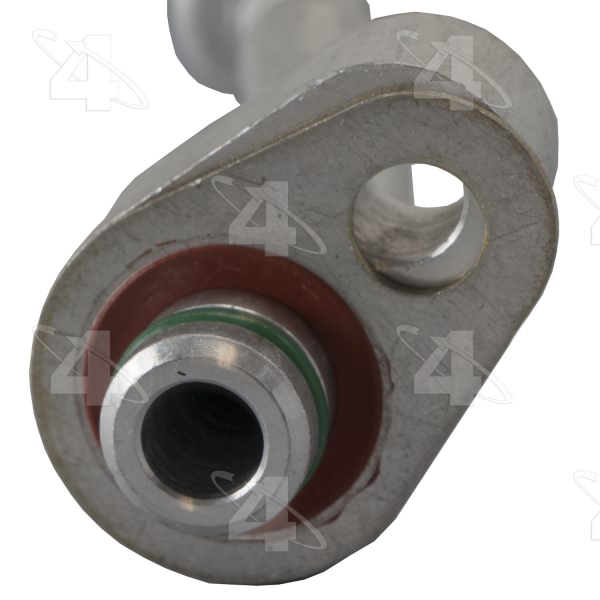

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |

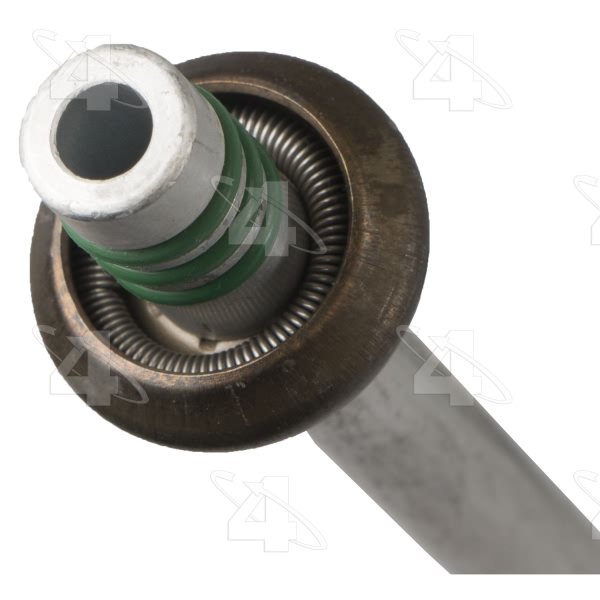

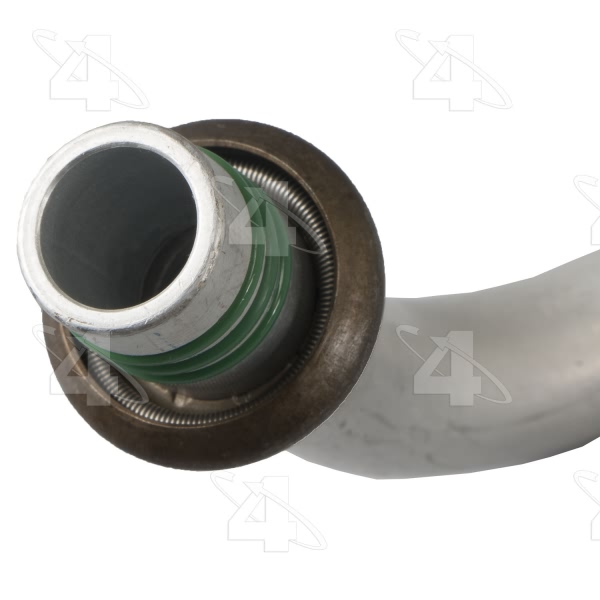

End 1 Type | Springlock |
End 2 Type | Female Springlock |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/o Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24611] / Green O-Ring |
O-Ring B Quantity | 3 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 12 |
Suction End Type | Springlock |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361072756 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2009 Ford E-150 | All Trims | 8 Cyl 4.6L |
2010 Ford E-150 | All Trims | All Engines |
2011 Ford E-150 | All Trims | 8 Cyl 4.6L |
2012-2014 Ford E-150 | All Trims | All Engines |
2008-2009 Ford E-250 | All Trims | 8 Cyl 4.6L |
2010 Ford E-250 | All Trims | All Engines |
2011 Ford E-250 | All Trims | 8 Cyl 4.6L |
2012-2014 Ford E-250 | All Trims | All Engines |
2008-2012 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2010 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
