Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55900 |

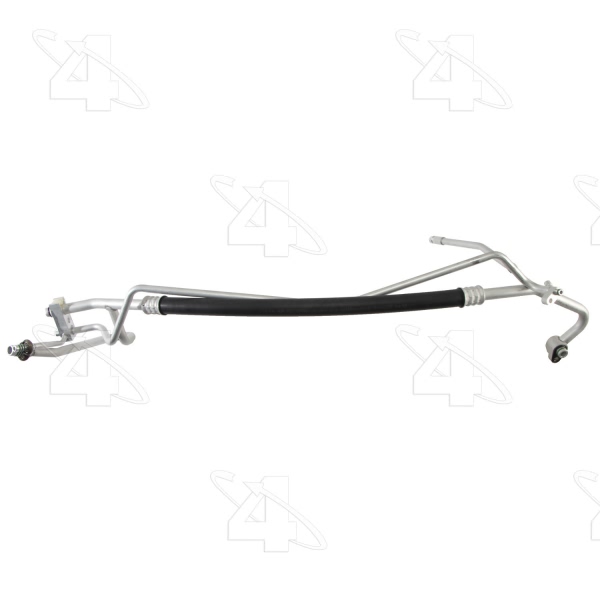

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | Male P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Gender | Male |
Liquid Line Style | P-Nut Fitting |

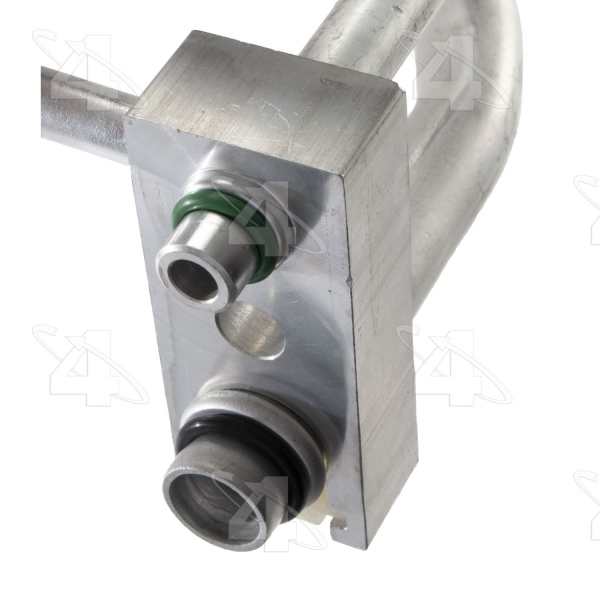

Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24344] / Gasket |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24622] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24606] / Green O-Ring |
O-Ring C Quantity | 3 |
O-Ring D Quantity | 1 |
O-Ring E Number/Desc | [24610] / Green O-Ring |
O-Ring E Quantity | 3 |
O-Ring F Number/Desc | [24220] / Spring |
O-Ring F Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 10 |
Suction End Type | Male Springlock |
Svc Port High Side | High Side |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361101838 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2006 Dodge Durango | All Trims | 8 Cyl 4.7L |
