Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66172 |

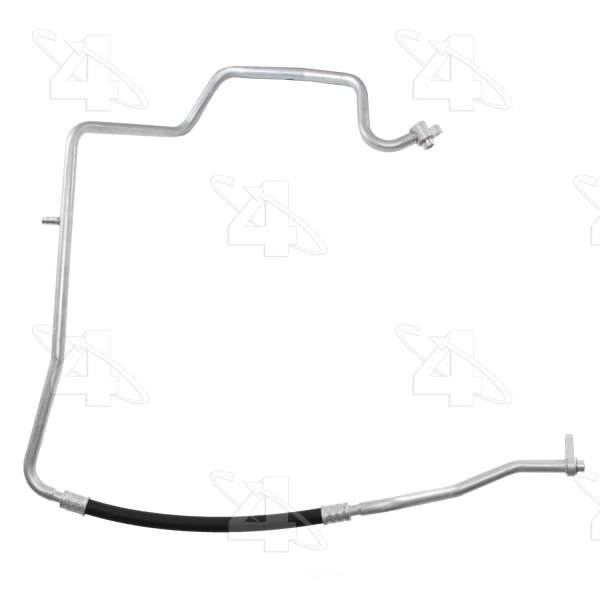

Part Description | A C Refrigerant Suction Hose |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24255] / Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24404] / Slimline Washer |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134a |

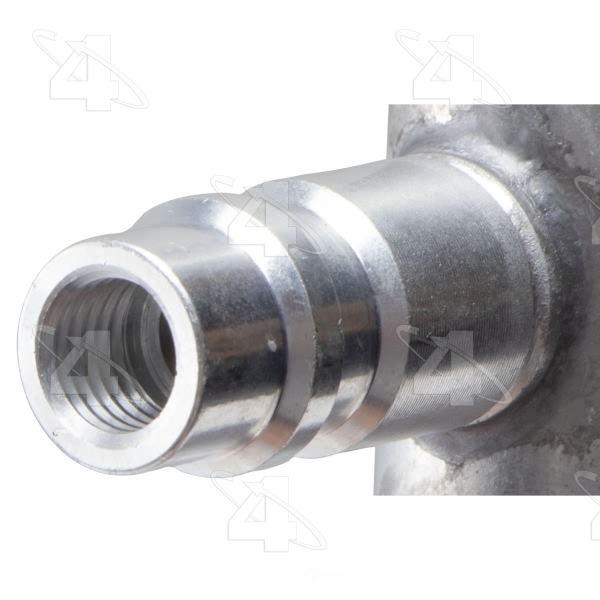

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361141452 |
Year Make Model | Trim | Engine |
---|---|---|
2014-2015 Ram 1500 | All Trims | 8 Cyl 5.7L |
2013-2018 Ram 2500 | All Trims | 8 Cyl 5.7L |
2013-2018 Ram 3500 | All Trims | 8 Cyl 5.7L |
2014-2015 Ram 4000 | All Trims | All Engines |
