Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66016 |

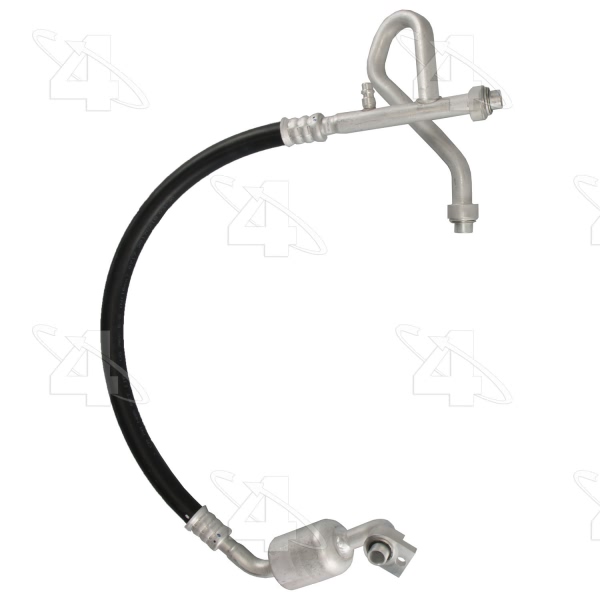

Part Description | A C Refrigerant Suction Hose |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | Sealing Washer |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/ Muffler |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361072688 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2018 Cadillac Escalade | All Trims | All Engines |
2015-2018 Cadillac Escalade ESV | All Trims | All Engines |
2015 Chevrolet Suburban | All Trims | All Engines |
2016-2019 Chevrolet Suburban | All Trims | 8 Cyl 5.3L |
2019 Chevrolet Suburban | All Trims | 8 Cyl 6.2L |
2020 Chevrolet Suburban | All Trims | All Engines |
2015-2020 Chevrolet Tahoe | All Trims | All Engines |
2015 GMC Yukon | All Trims | All Engines |
2016-2017 GMC Yukon | All Trims | 8 Cyl 5.3L |
2018 GMC Yukon | All Trims | All Engines |
