Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83346 |

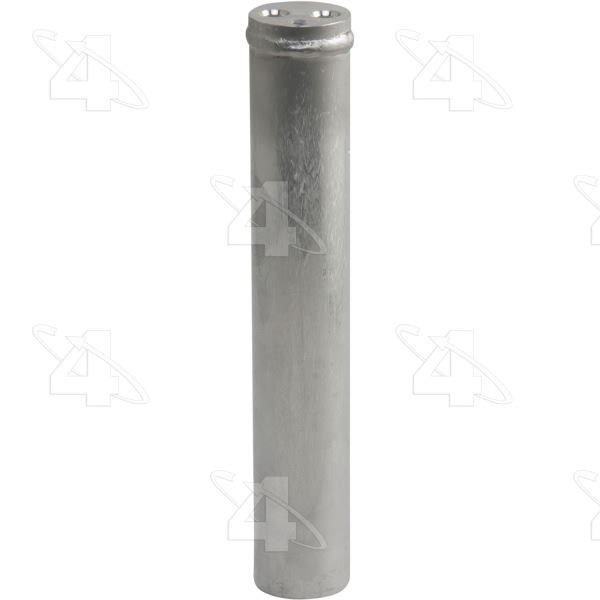

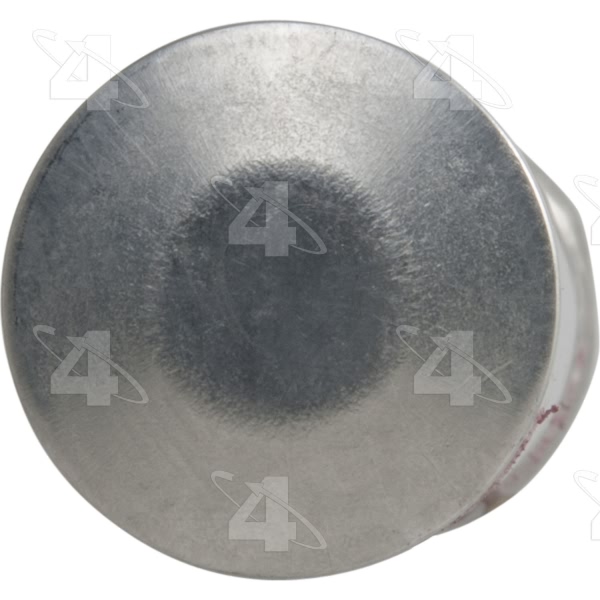

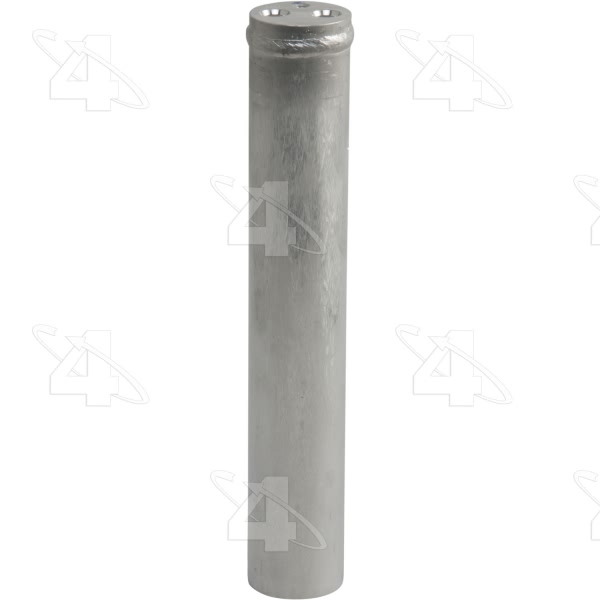

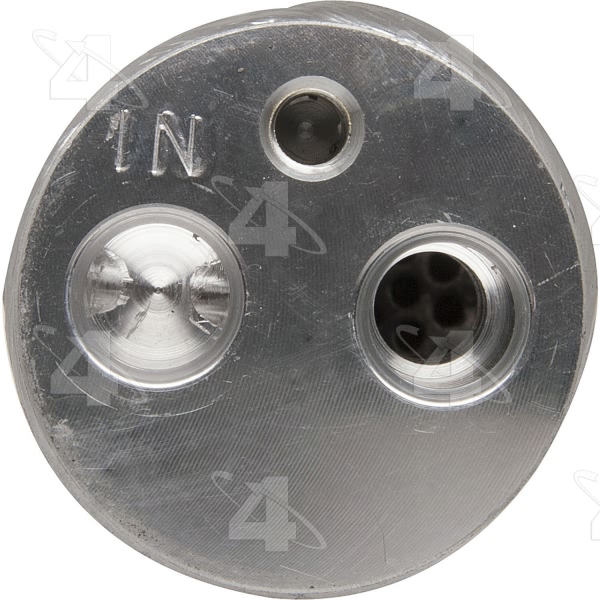

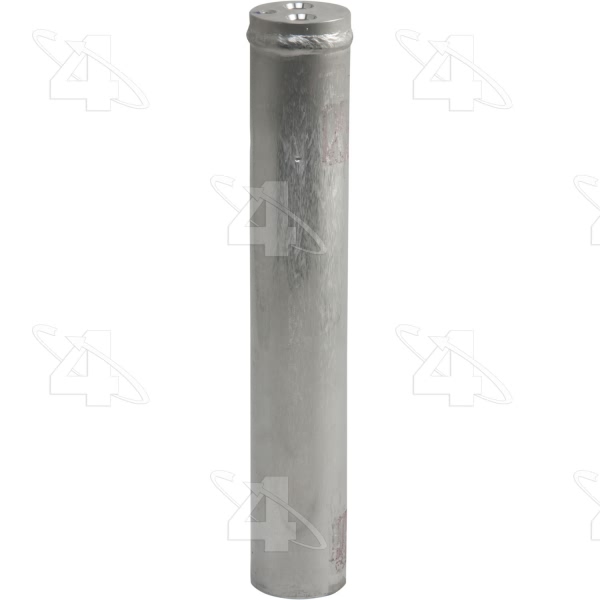

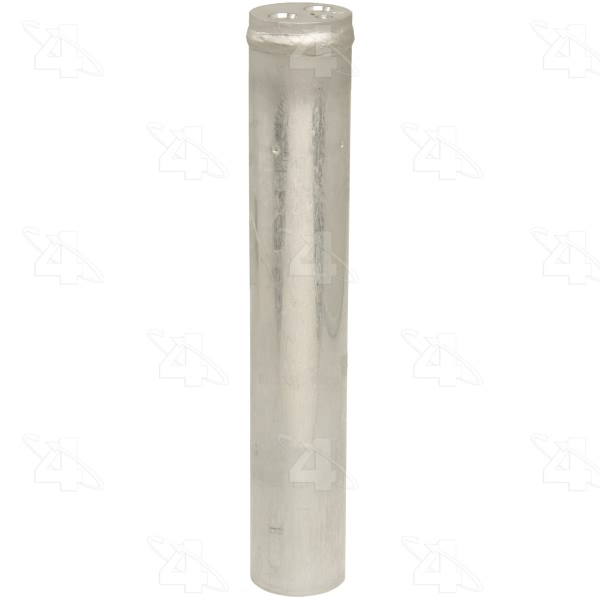

Part Description | A C Receiver Drier |
Body Diameter | 1.500 |
Body Length | 9.64 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .402 |
Inlet Fraction | 3/8 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24611] / Green O-Ring |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 3/8 |
Outlet IN | .402 |
Overall Depth IN | 9.64 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361833463 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2009 Chevrolet Aveo | All Trims | All Engines |
2006-2009 Chevrolet Aveo5 | All Trims | All Engines |
