Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83249 |

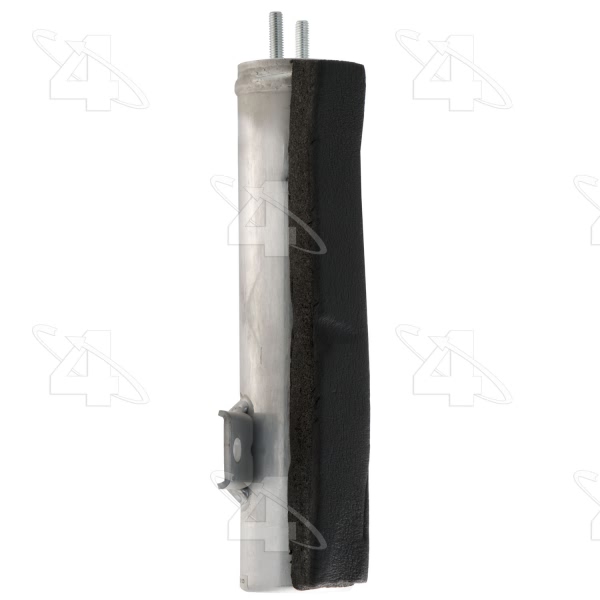

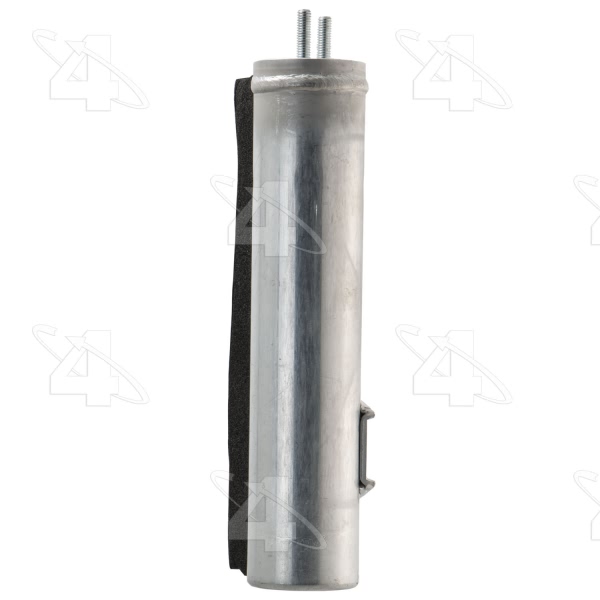

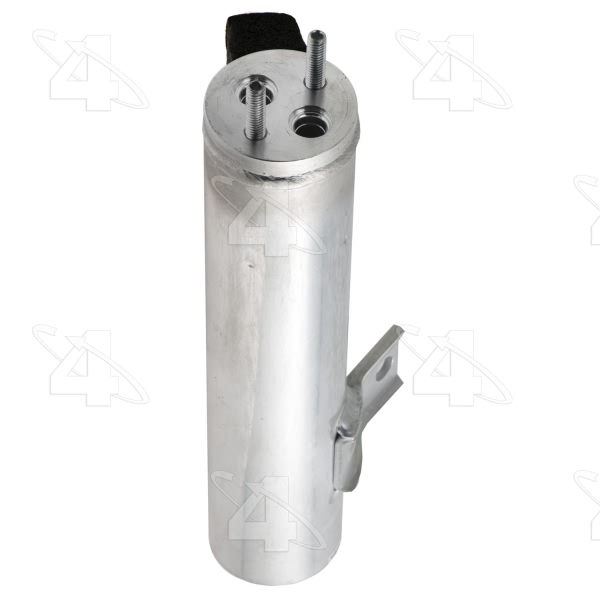

Part Description | A C Receiver Drier |
Body Diameter | 1.750 |
Body Length | 8.250 |
Bracket | w/ Bracket |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | 0.500 |
Inlet Fraction | 1/2 |
Inlet IN | 0.500 |
Inlet MM | 12.700 |
Length MM | 210.000 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.700 |
Overall Depth IN | 9.000 |
Overall Depth MM | 228.600 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361832497 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2009 Hyundai Tucson | All Trims | 6 Cyl 2.7L |
