Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83084 |

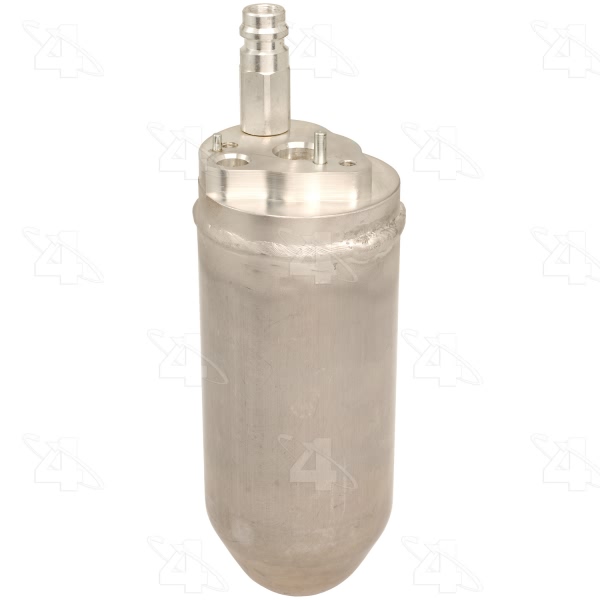

Part Description | A C Receiver Drier |
Body Diameter | 2.625 |
Body Length | 6.500 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 66.675 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .402 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 3/8 |
Length MM | 165.100 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24611] / Green O-Ring |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 5/8 |
Outlet IN | .614 |
Overall Depth IN | 6.500 |
Pad Mount | w/ Pad Mount |
Service Port | w/ Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361830844 |
Year Make Model | Trim | Engine |
---|---|---|
1997-2006 Jaguar XK8 | All Trims | All Engines |
2000-2006 Jaguar XKR | All Trims | All Engines |
