Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83062 |

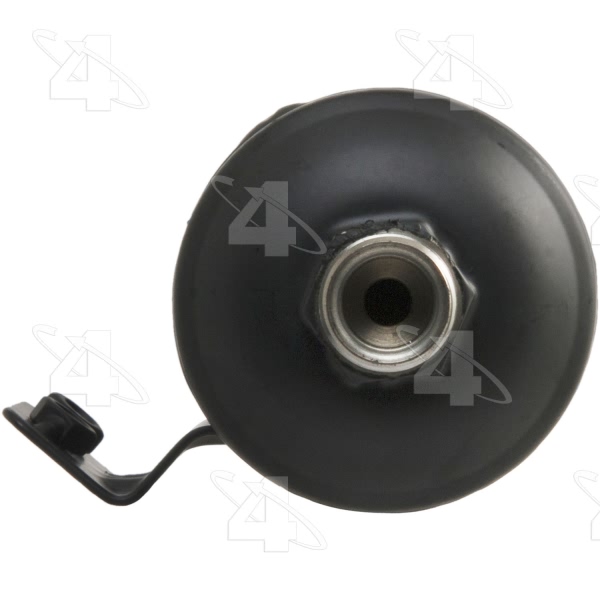

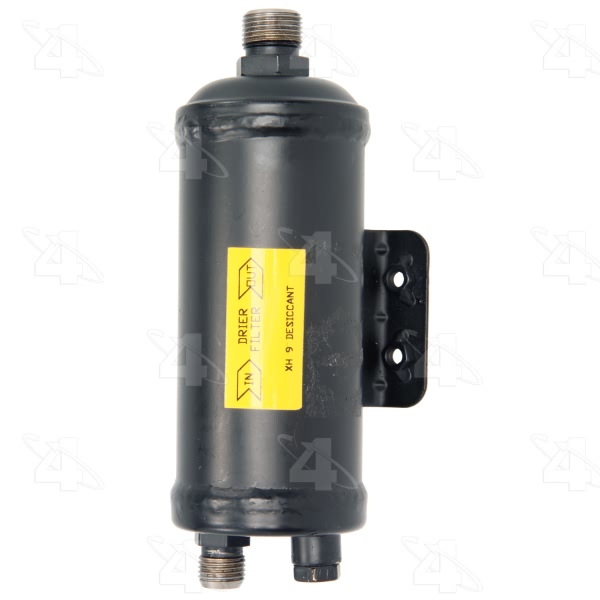

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 4.000 |
Bracket | w/ Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 13/16 |
Inlet IN | 0.78125 |
Inlet MM | 20.000 |
Length MM | 101.600 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24616] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24131] / Green O-Ring |
O-Ring C Quantity | 1 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet IN | .547 |
Overall Depth IN | 4.000 |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
UPC | 096361830622 |
Year Make Model | Trim | Engine |
---|---|---|
1999-2002 Hyundai Sonata | All Trims | All Engines |
2001 Hyundai XG300 | All Trims | All Engines |
2002 Hyundai XG350 | All Trims | All Engines |
2001 Kia Optima | All Trims | All Engines |
