Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33718 |

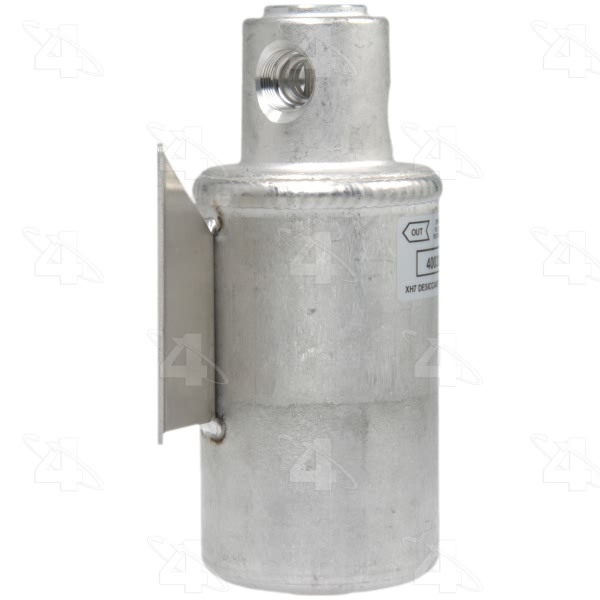

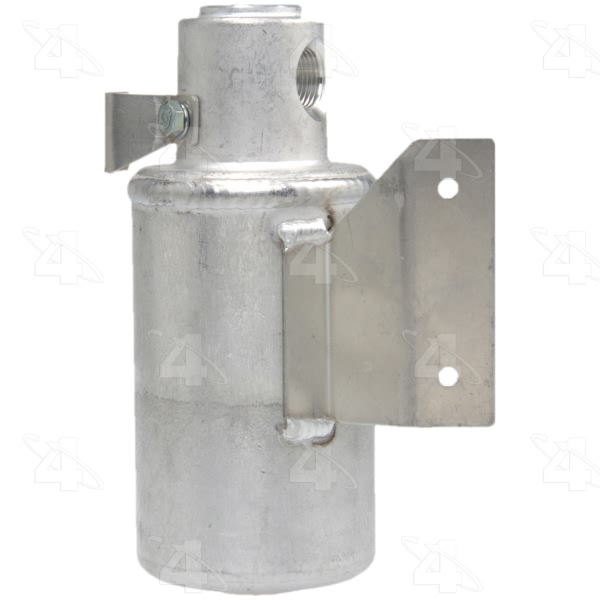

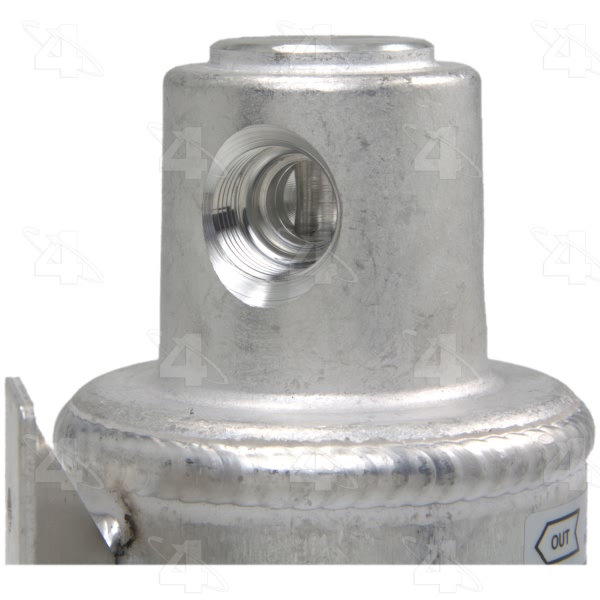

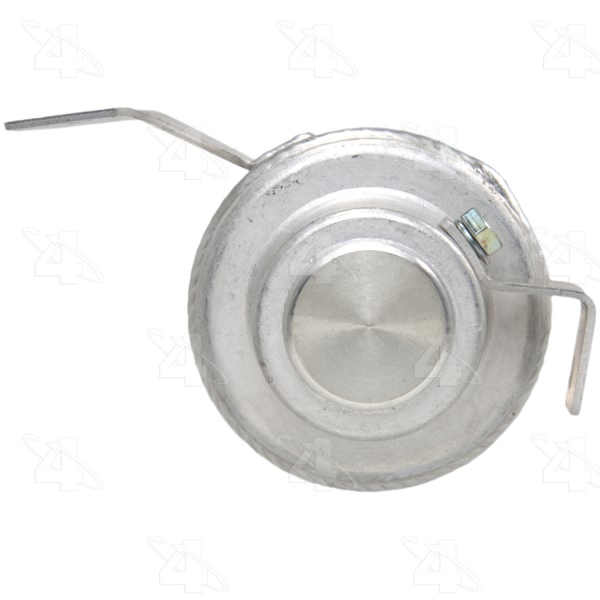

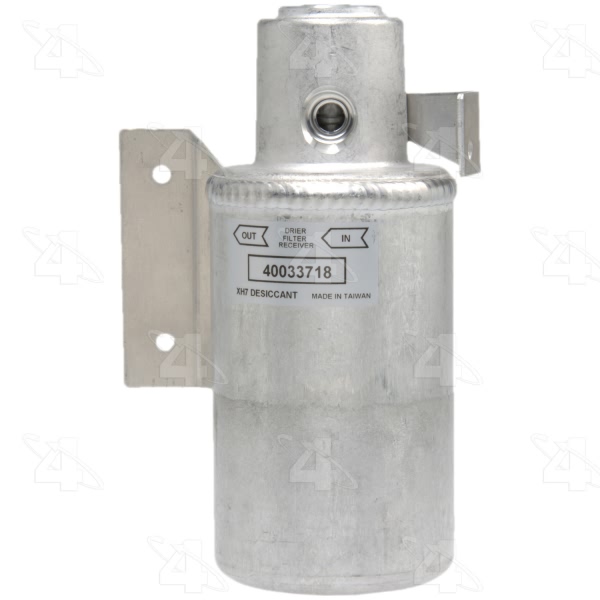

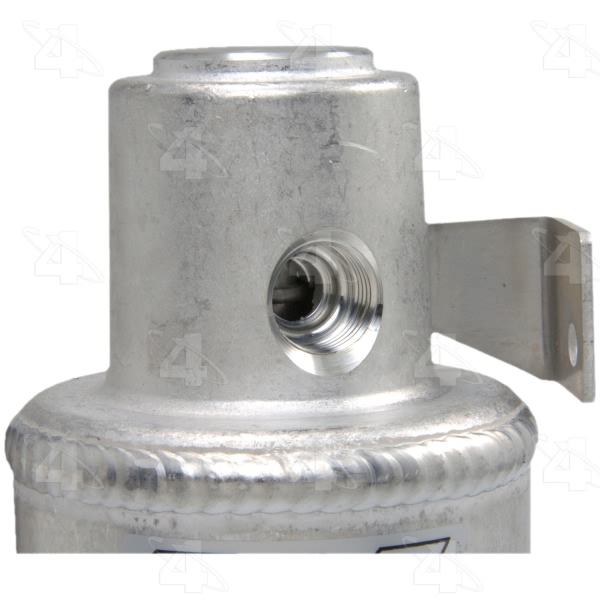

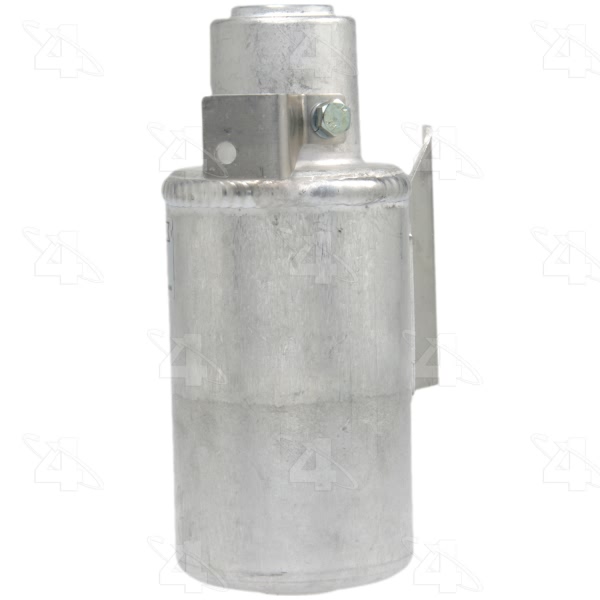

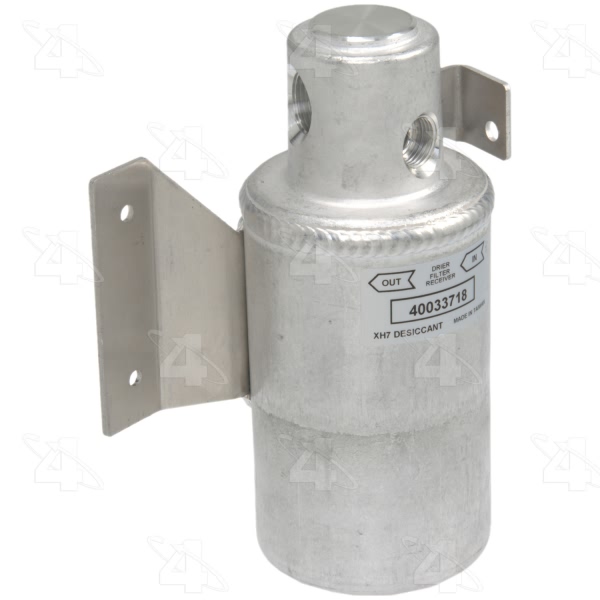

Part Description | A C Receiver Drier |
Body Diameter | 3.000 |
Body Length | 7.000 |
Bracket | w/ Bracket |
Connector B Type | Female O-Ring |
Connector Type | Female O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 76.200 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Female |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Female O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 177.800 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Female O-Ring |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.700 |
Overall Depth IN | 7.000 |
P. R. V. | No |
Pad Mount | w/o Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/o Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361337183 |
Year Make Model | Trim | Engine |
---|---|---|
1995-1997 Volkswagen Passat | All Trims | All Engines |
