Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33662 |

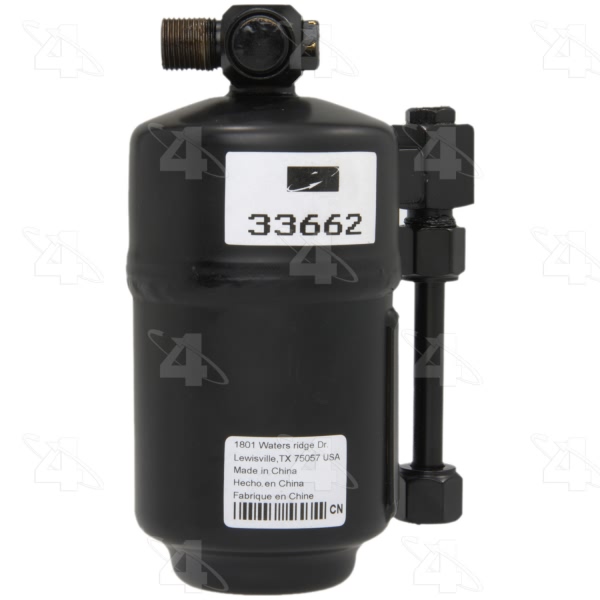

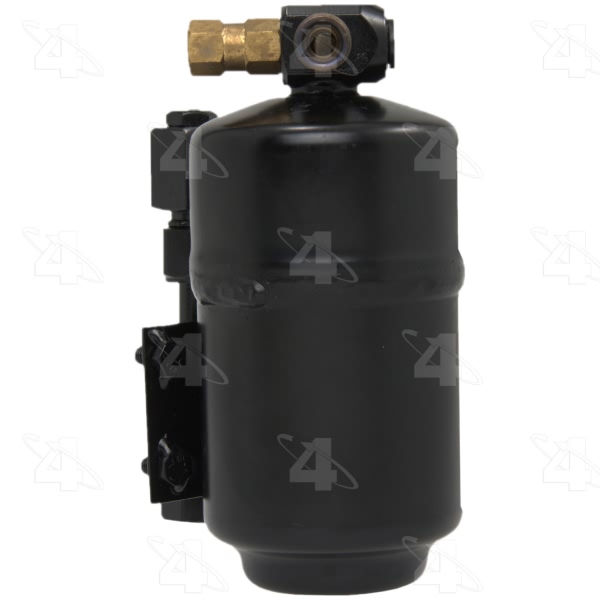

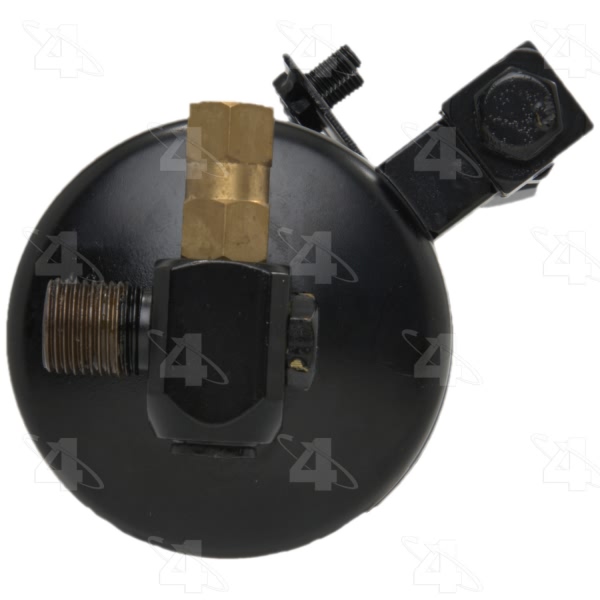

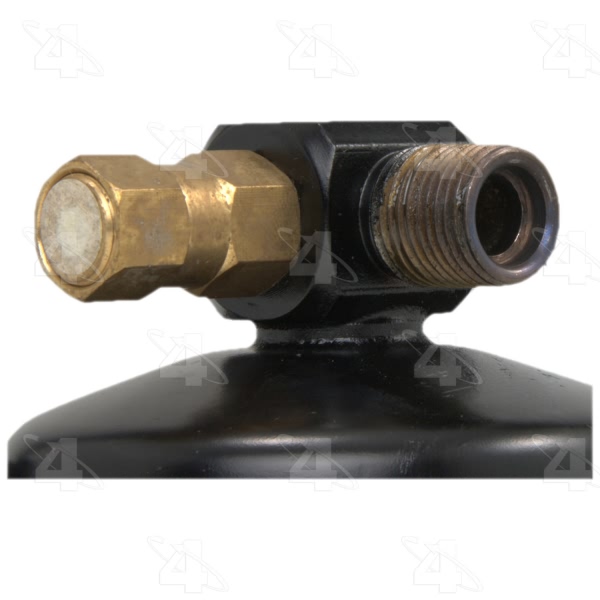

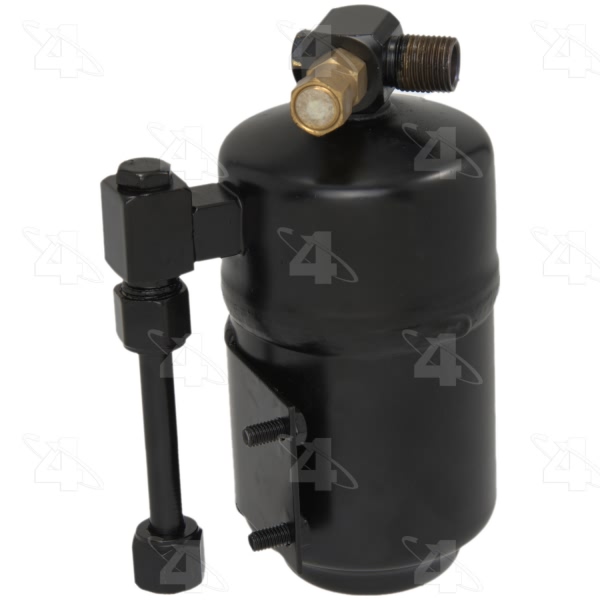

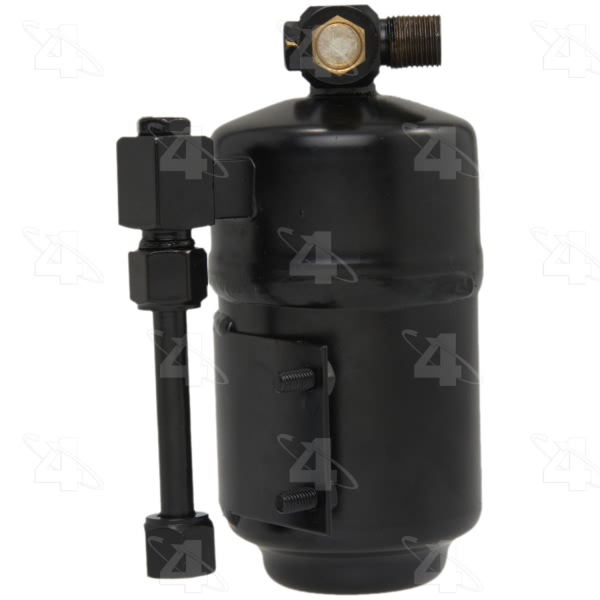

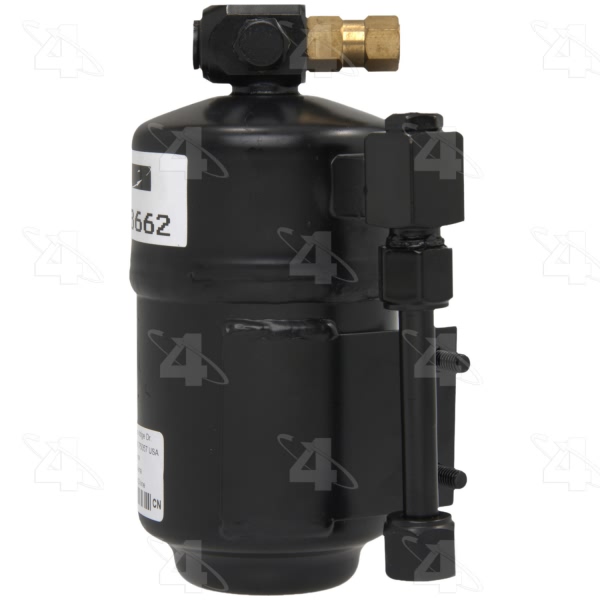

Part Description | A C Receiver Drier |
Body Diameter | 2.875 |
Body Length | 7.000 |
Connector B Type | Female Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 73.025 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 177.800 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |

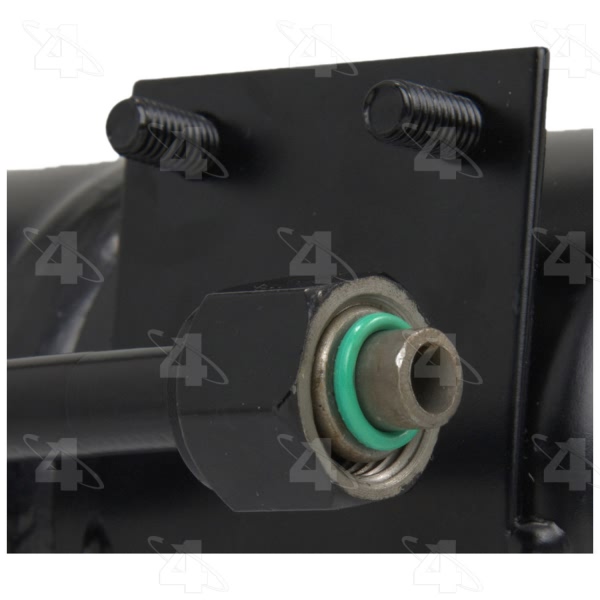

O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Female Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 7.000 |
Service Port | w/ Service Port |
Sight Glass | Yes |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361336629 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1989 Mercedes-Benz 560SL | All Trims | All Engines |
