Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33590 |

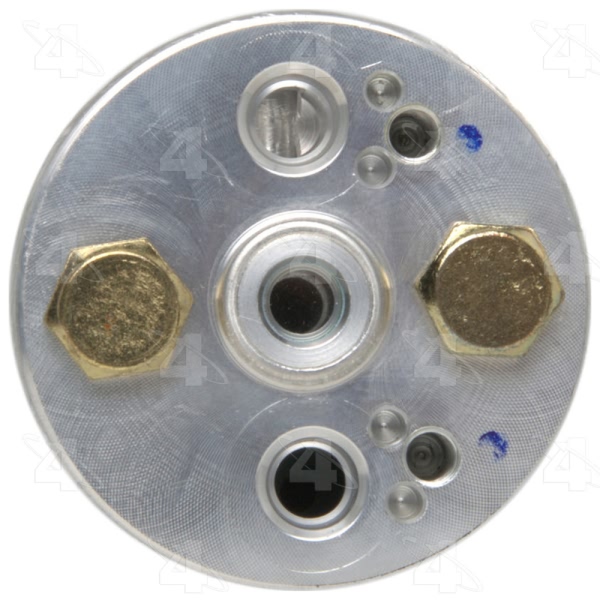

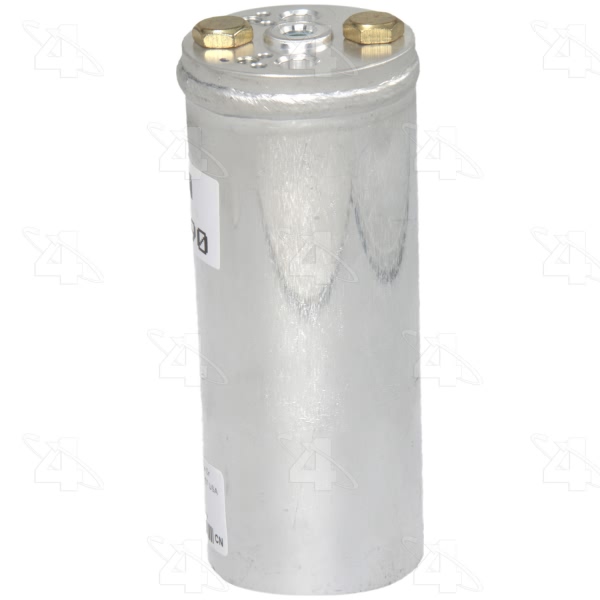

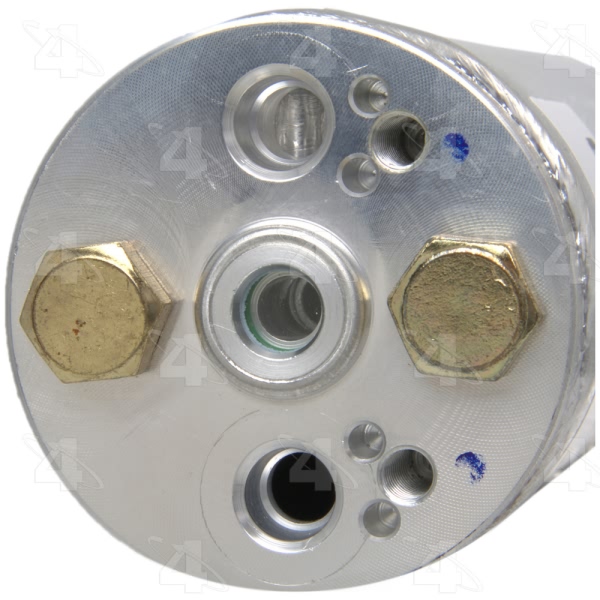

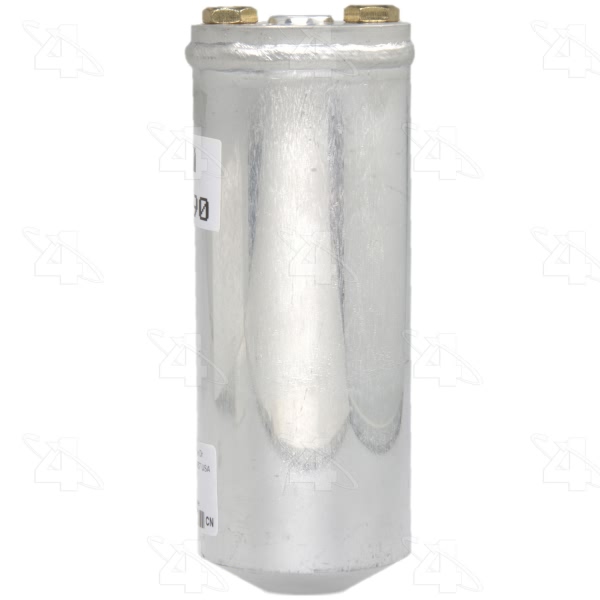

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 6.625 |
Bracket | w/o Bracket |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .350 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 165.100 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24607] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 3/8 |
Outlet IN | .350 |
Outlet MM | 9.525 |
Overall Depth IN | 6.625 |
Overall Depth MM | 165.000 |
P. R. V. | No |
Pad Mount | w/ Pad Mount |
Service Port | w/ Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/ Switch Port |
Switch Type | NPT |
UPC | 096361335905 |
Year Make Model | Trim | Engine |
---|---|---|
1996-1997 Acura SLX | All Trims | All Engines |
1992-1993 Geo Storm | All Trims | 4 Cyl 1.6L |
1994-1997 Honda Passport | All Trims | All Engines |
1991-1993 Infiniti G20 | All Trims | All Engines |
1990-1992 Infiniti M30 | All Trims | All Engines |
1993-1994 Isuzu Amigo | All Trims | All Engines |
1990-1992 Isuzu Impulse | All Trims | All Engines |
1993-1995 Isuzu Pickup | All Trims | All Engines |
1993-1997 Isuzu Rodeo | All Trims | All Engines |
1991-1993 Isuzu Stylus | All Trims | All Engines |
