Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33585 |

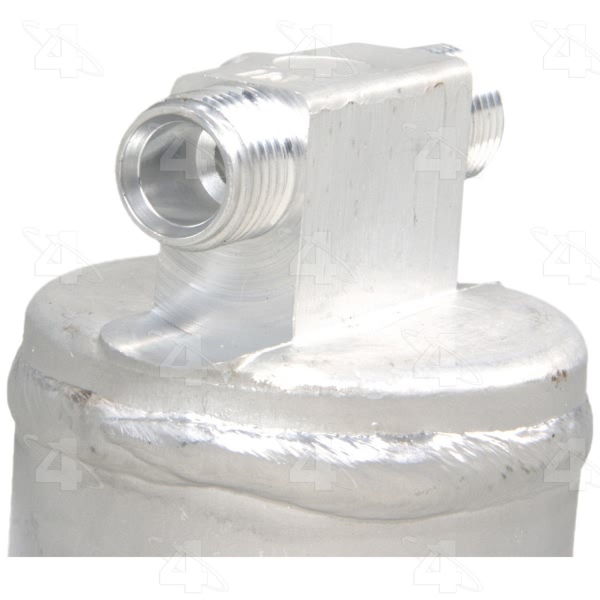

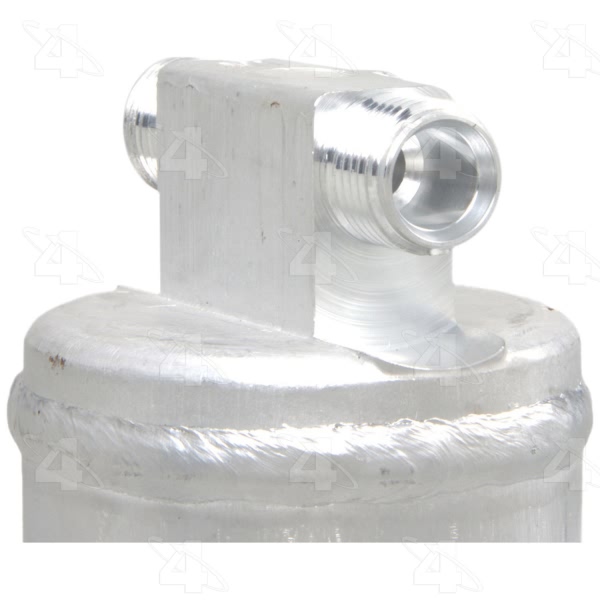

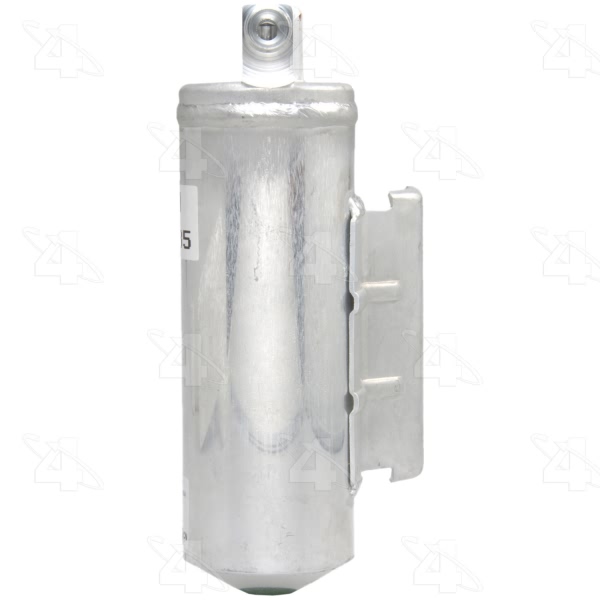

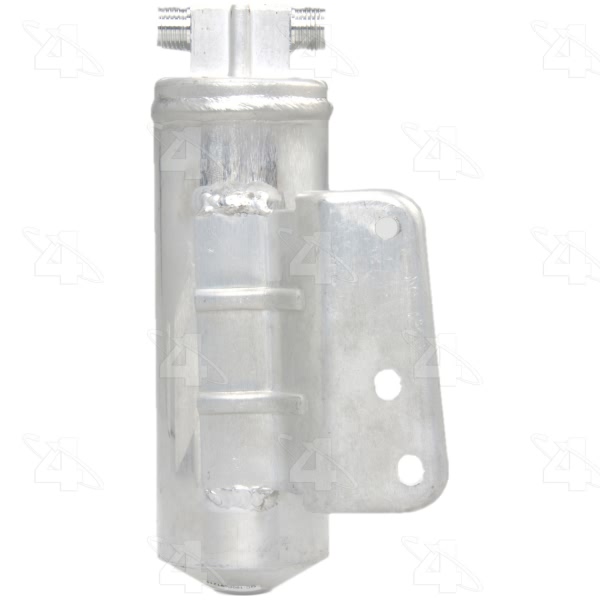

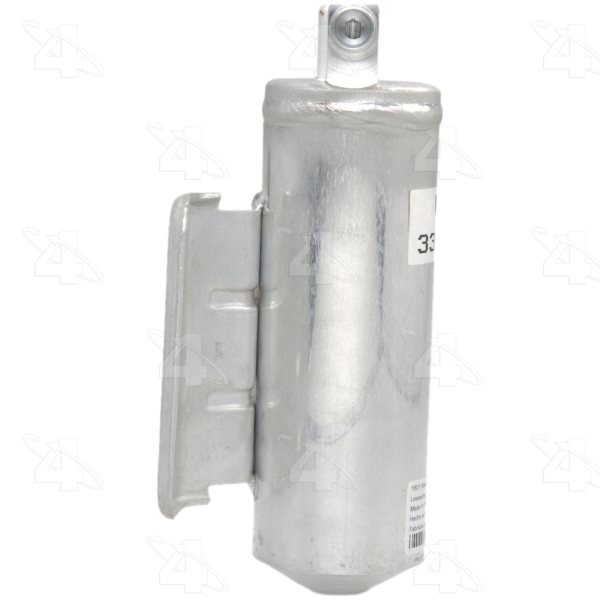

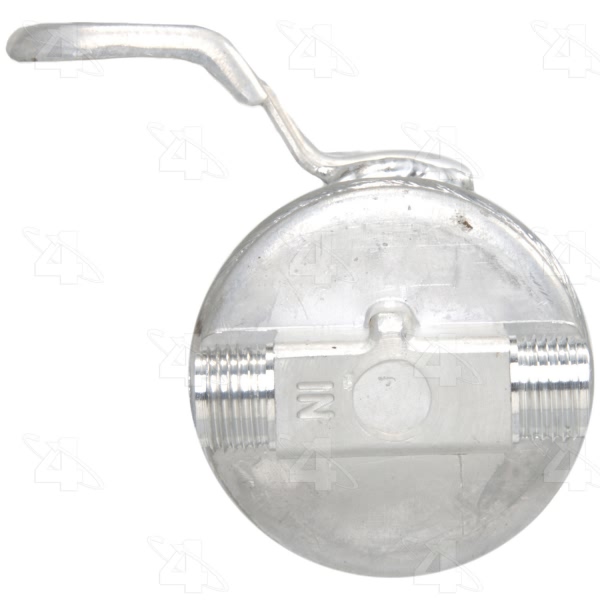

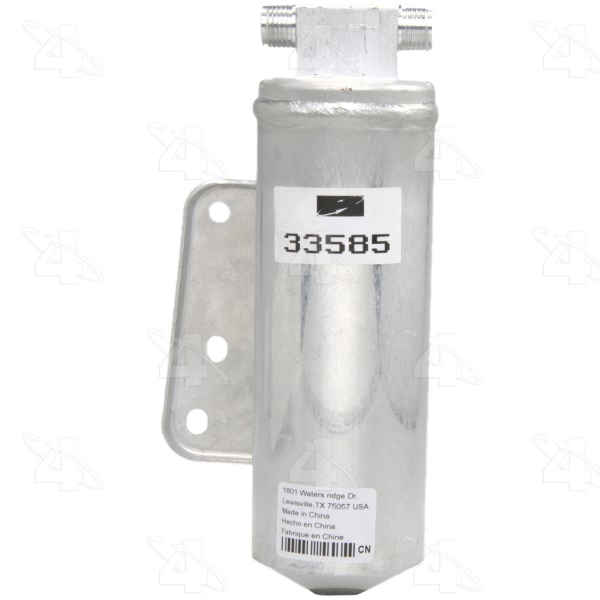

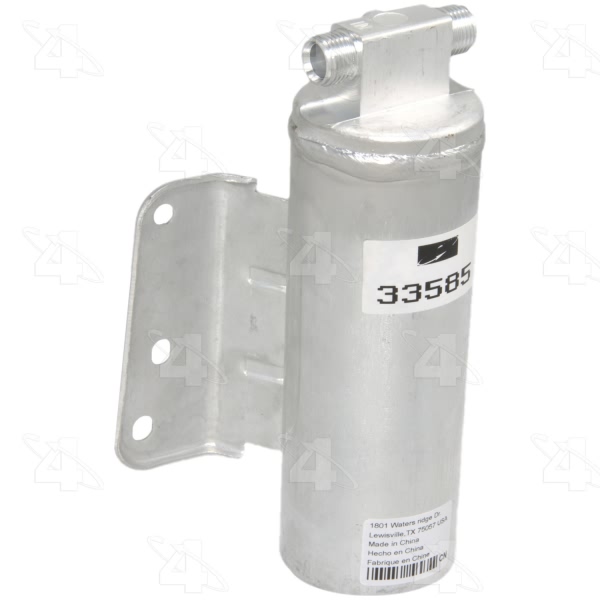

Part Description | A C Receiver Drier |
Body Diameter | 2.375 |
Body Length | 8.000 |
Bracket | w/ Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 60.325 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Length MM | 203.200 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24662] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet IN | 0.375 |
Overall Depth IN | 8.000 |
P. R. V. | No |
Pad Mount | w/o Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/o Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361335851 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1997 Mazda Miata | All Trims | All Engines |
