Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33583 |

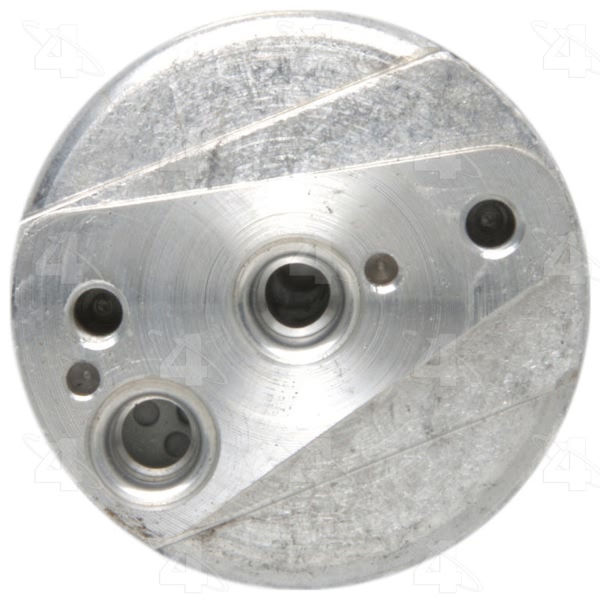

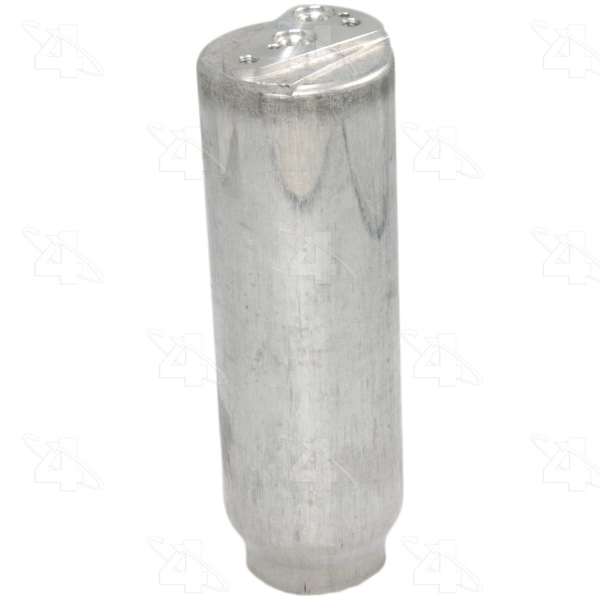

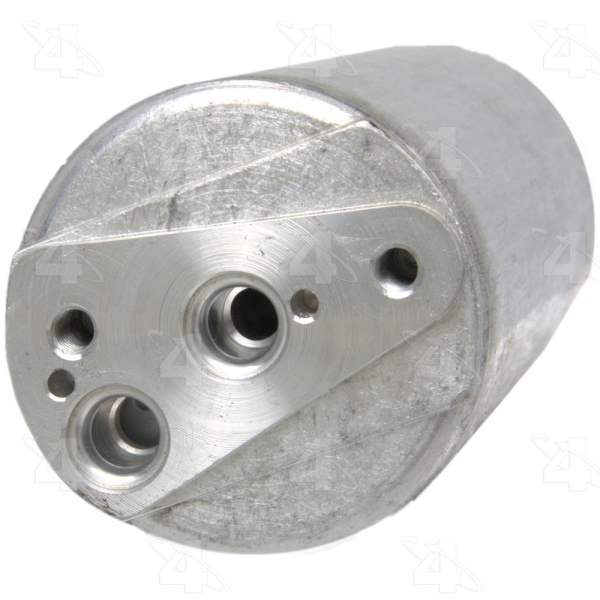

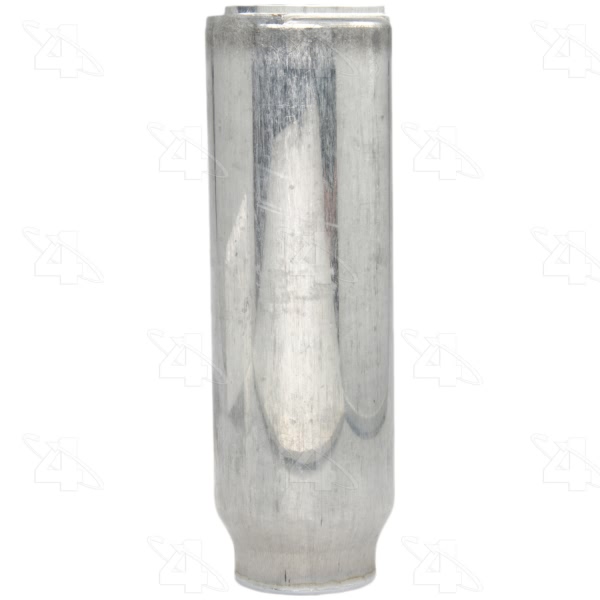

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 7.500 |
Bracket | w/o Bracket |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | 0.500 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 1/2 |
Inlet IN | 0.500 |
Length MM | 190.500 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24646] / Green Round O/Ring |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.26 |
Overall Depth IN | 7.500 |
Overall Depth MM | 190.500 |
P. R. V. | No |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361335837 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Lexus ES300 | All Trims | All Engines |
1990-1992 Lexus LS400 | All Trims | All Engines |
1992-1993 Lexus SC400 | All Trims | All Engines |
1990-1994 Mitsubishi Eclipse | All Trims | 4 Cyl 1.8L |
1990-1994 Mitsubishi Eclipse | All Trims | 4 Cyl 2.0L |
1992-1993 Mitsubishi Expo | All Trims | 4 Cyl 2.4L |
1992-1993 Mitsubishi Expo LRV | All Trims | 4 Cyl 1.8L |
1993 Mitsubishi Expo LRV | All Trims | 4 Cyl 2.4L |
1992-1993 Mitsubishi Montero | All Trims | 6 Cyl 3.0L |
1990-1994 Plymouth Laser | All Trims | All Engines |
