Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33566 |

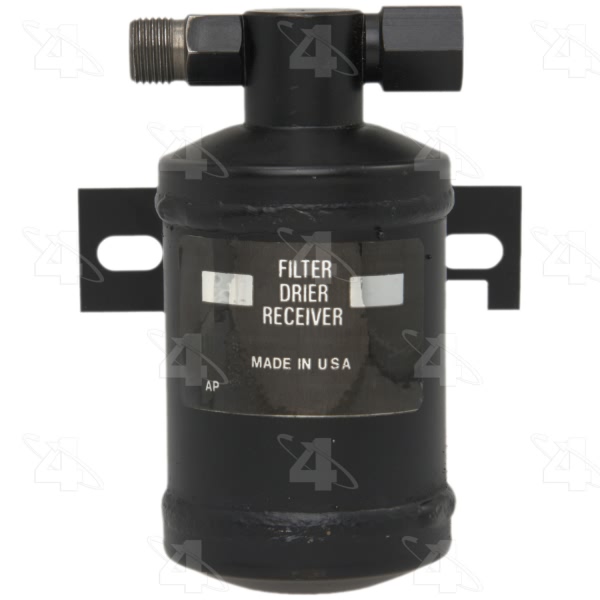

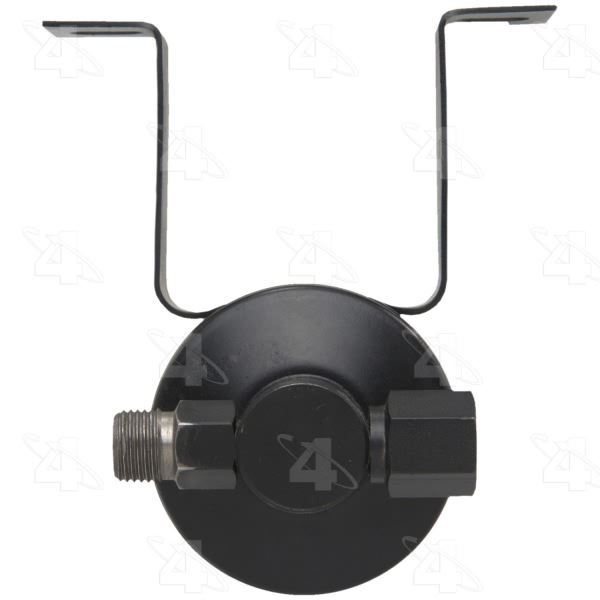

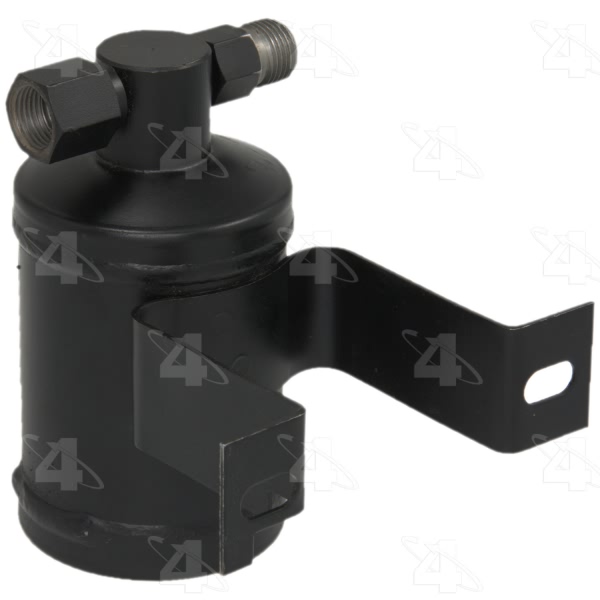

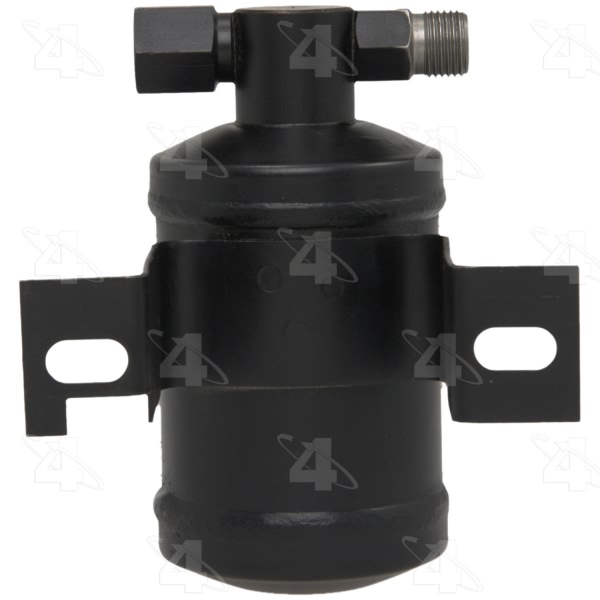

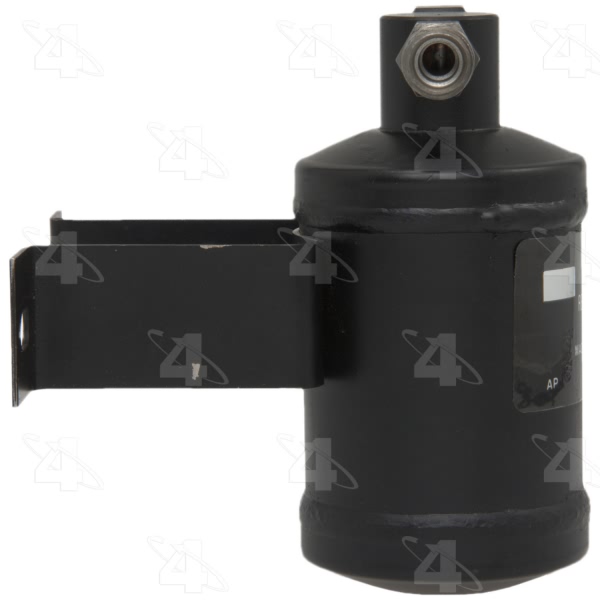

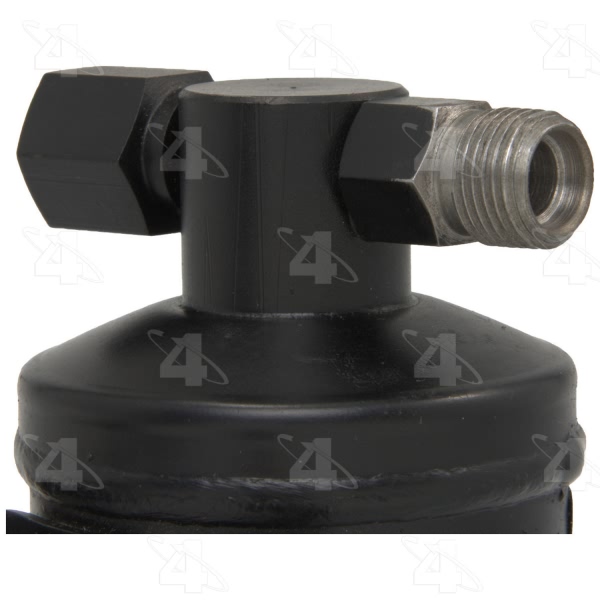

Part Description | A C Receiver Drier |
Body Diameter | 2.250 |
Body Length | 4.000 |
Bracket | w/ Bracket |
Connector B Type | Female O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 57.150 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 101.600 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24216] / Spring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24666] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24216] / Spring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24666] / Green O-Ring |
O-Ring D Quantity | 3 |
O-Ring E Number/Desc | [24606] / Green O-Ring |
O-Ring E Quantity | 2 |
Outlet Fitting Type | Female O-Ring |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.700 |
Overall Depth IN | 4.000 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/o Switch Port |
UPC | 096361335660 |
Year Make Model | Trim | Engine |
---|---|---|
1994 Dodge B150 | All Trims | All Engines |
1995-1997 Dodge B1500 | All Trims | All Engines |
1994 Dodge B250 | All Trims | All Engines |
1995-1997 Dodge B2500 | All Trims | All Engines |
1994 Dodge B350 | All Trims | All Engines |
1995-1997 Dodge B3500 | All Trims | All Engines |
1995-1997 Dodge Ram 1500 Van | All Trims | All Engines |
1996-1997 Dodge Ram 2500 Van | All Trims | All Engines |
1996-1997 Dodge Ram 3500 Van | All Trims | All Engines |
