Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33565 |

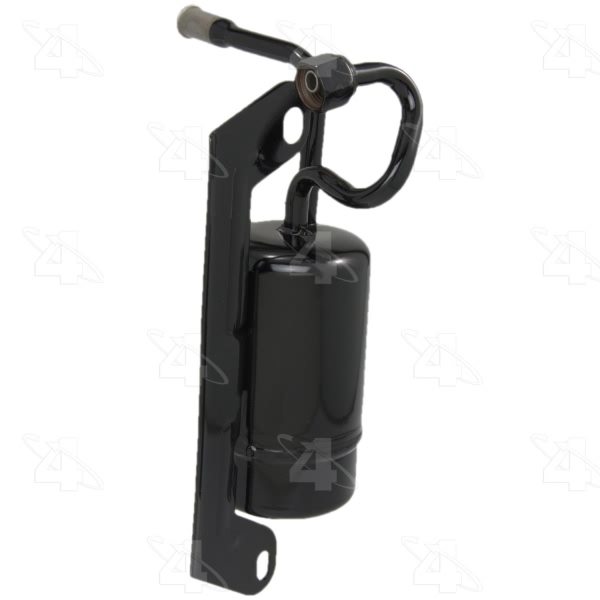

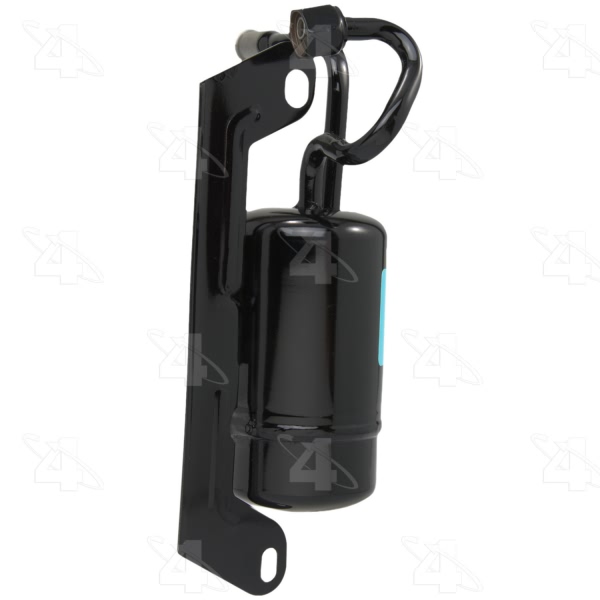

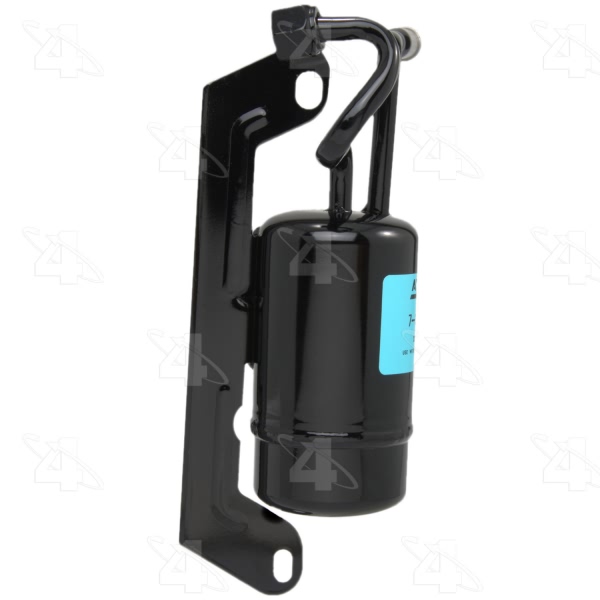

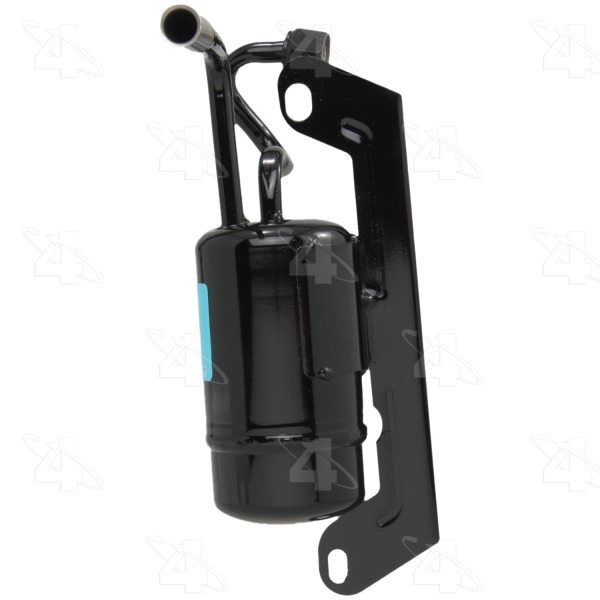

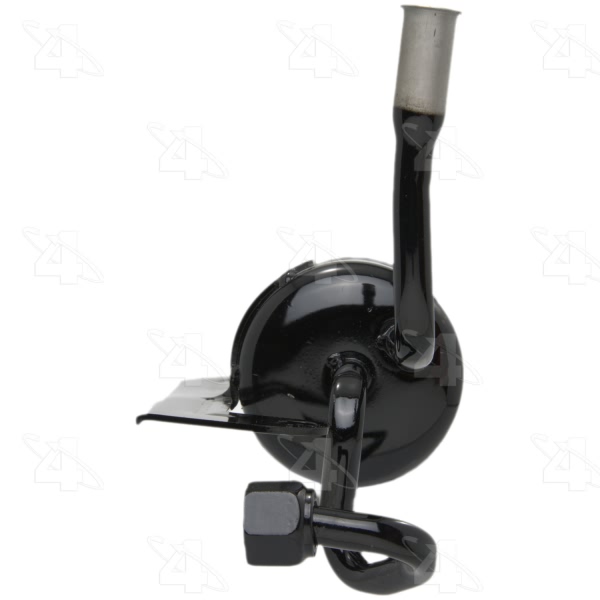

Part Description | A C Receiver Drier |
Body Diameter | 2.250 |
Body Length | 5.000 |
Bracket | w/ Bracket |
Connector B Type | Female Springlock |
Connector Type | Female O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 57.150 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Female |
Inlet Fitting Diameter | 0.375 |

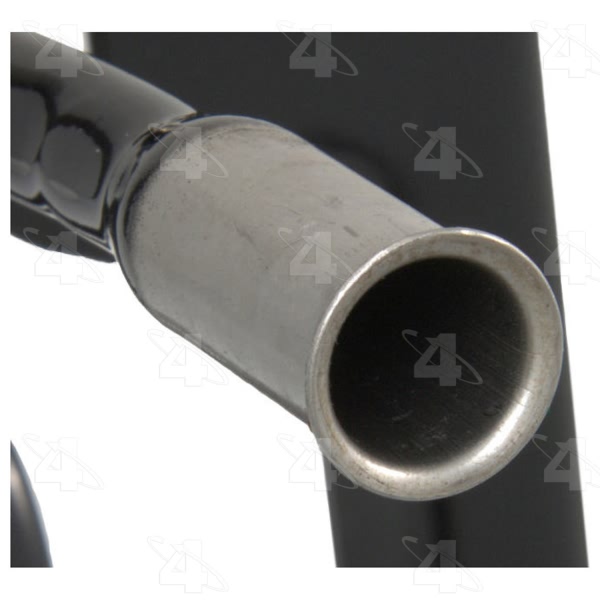

Inlet Fitting Type | Female O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 127.000 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24216] / Spring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24666] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24606] / Green O-Ring |
O-Ring C Quantity | 2 |

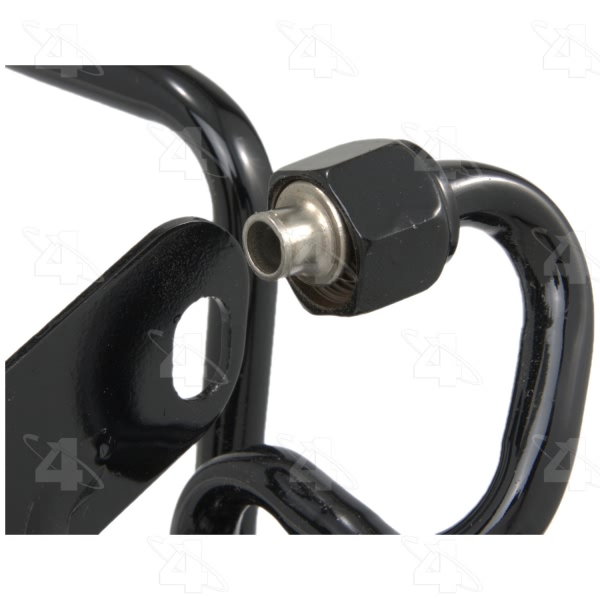

Outlet Fitting Type | Female Springlock |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 4.72 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/o Switch Port |
UPC | 096361335653 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1997 Chrysler Concorde | All Trims | All Engines |
1993-1997 Chrysler Intrepid | All Trims | All Engines |
1994-1997 Chrysler LHS | All Trims | All Engines |
1994 Chrysler New Yorker | All Trims | 6 Cyl 3.5L |
1995-1996 Chrysler New Yorker | All Trims | All Engines |
1993-1997 Dodge Intrepid | All Trims | All Engines |
1993-1997 Eagle Vision | All Trims | All Engines |
