Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33414 |

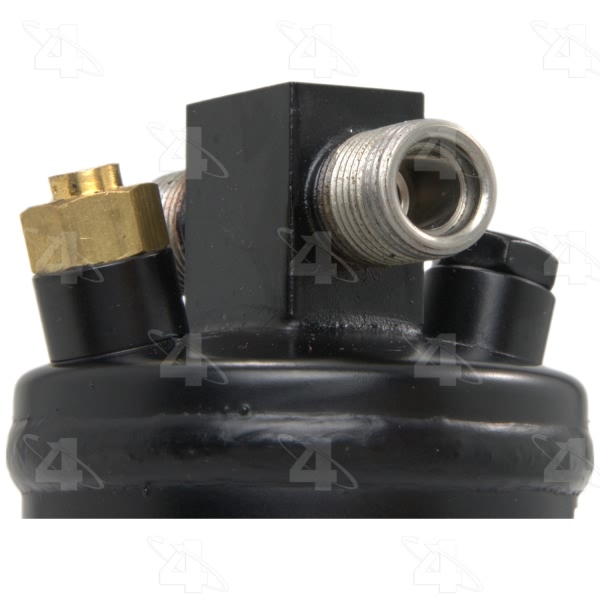

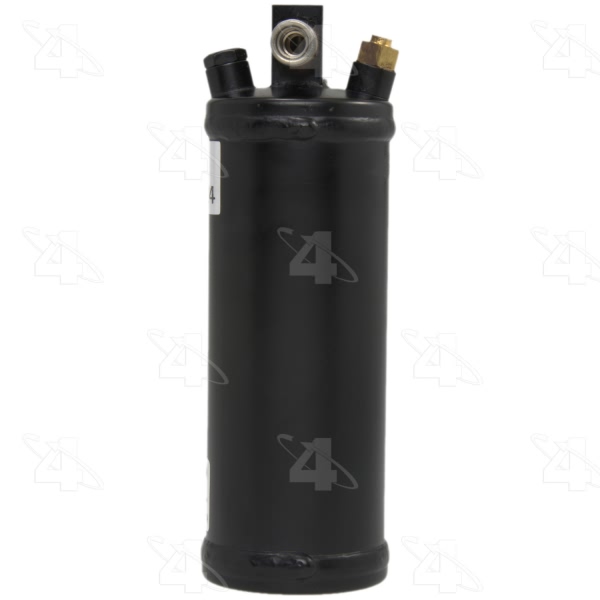

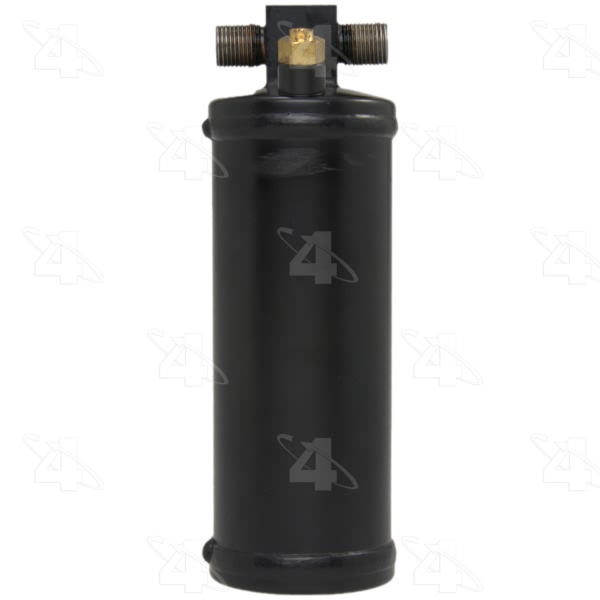

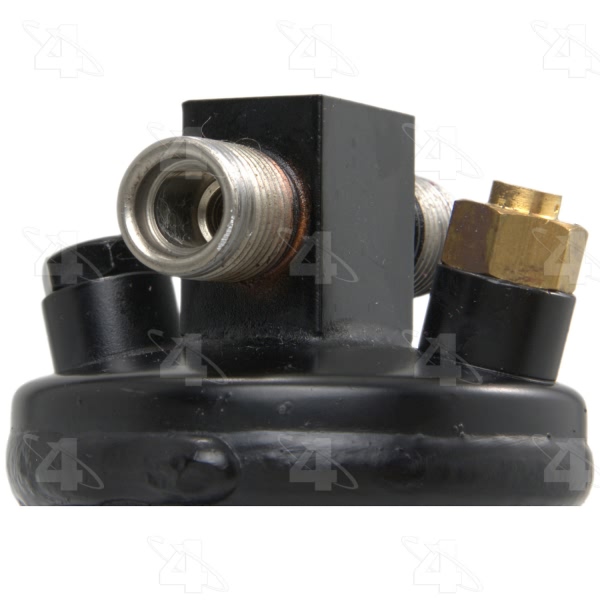

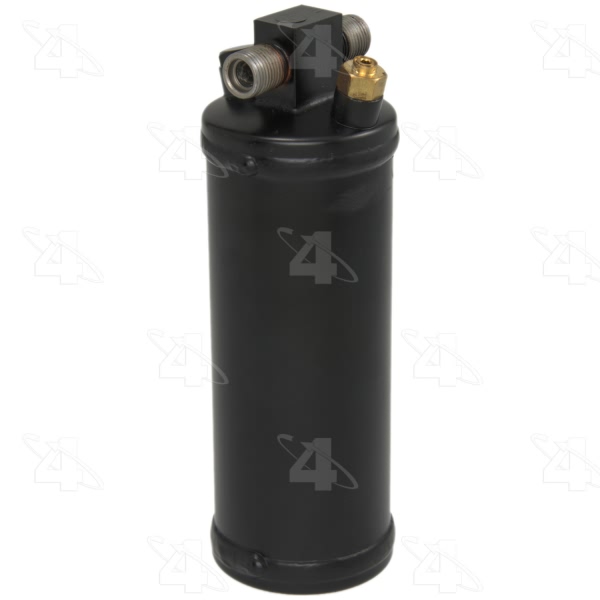

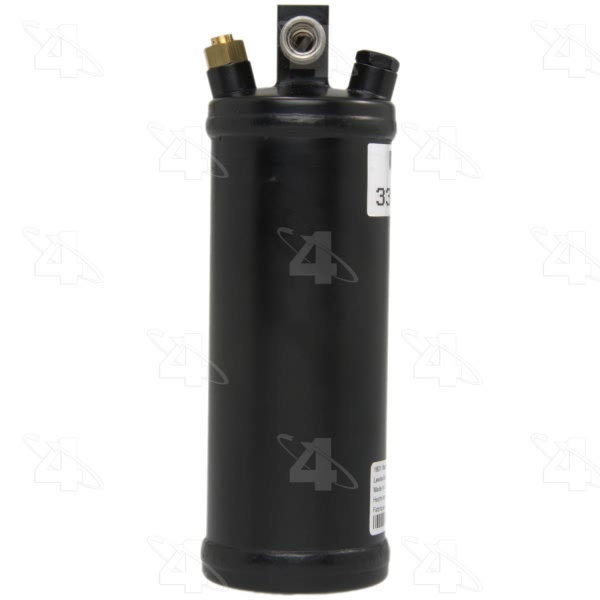

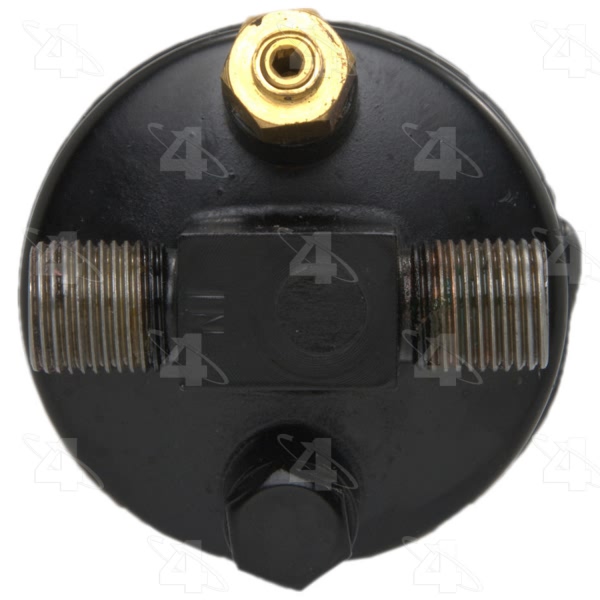

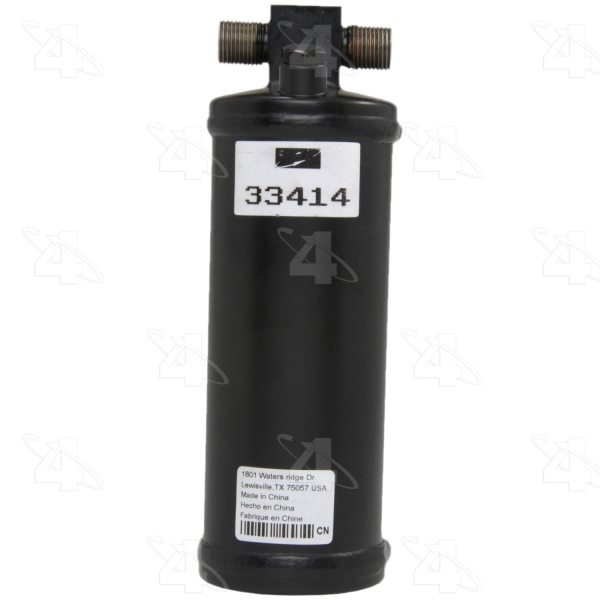

Part Description | A C Receiver Drier |
Body Diameter | 2.625 |
Body Length | 8.000 |
Bracket | w/o Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 66.675 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 203.200 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 8.000 |
Overall Depth MM | 203.200 |
P. R. V. | Yes |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
UPC | 096361334144 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1984 Volvo 242 | All Trims | All Engines |
1975-1984 Volvo 244 | All Trims | All Engines |
1975-1984 Volvo 245 | All Trims | All Engines |
1976 Volvo 262 | All Trims | All Engines |
1978-1979 Volvo 262 | All Trims | All Engines |
1976-1979 Volvo 264 | All Trims | All Engines |
1976-1979 Volvo 265 | All Trims | All Engines |
1984 Volvo DL | All Trims | All Engines |
1984 Volvo GLE | All Trims | All Engines |
1990-1991 Yugo Cabrio | All Trims | All Engines |
