Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33383 |

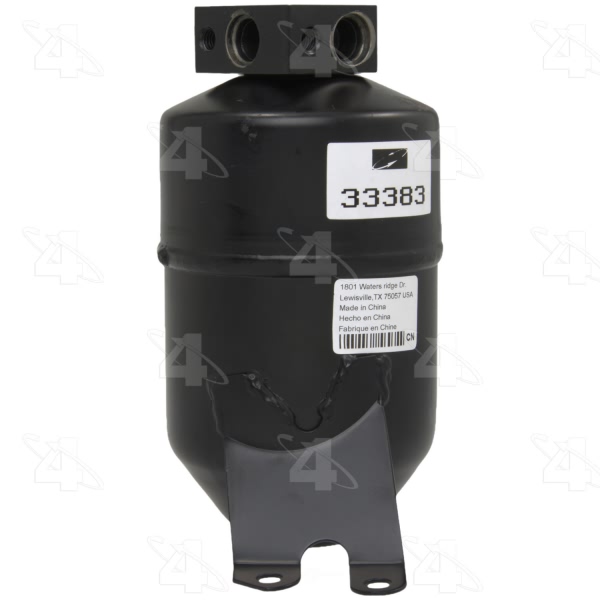

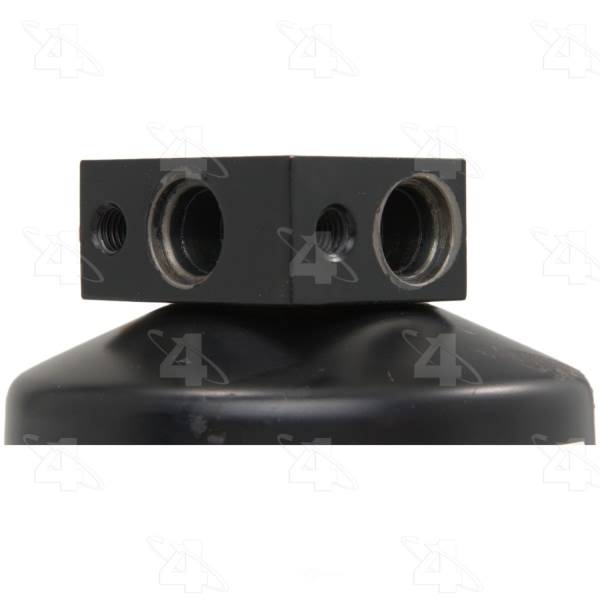

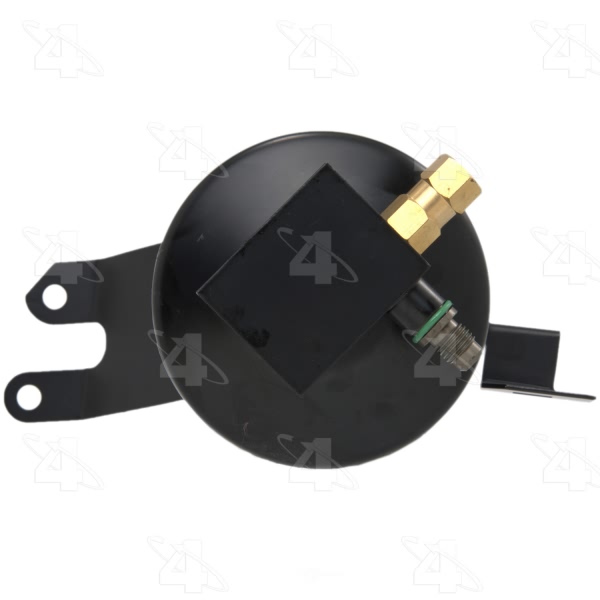

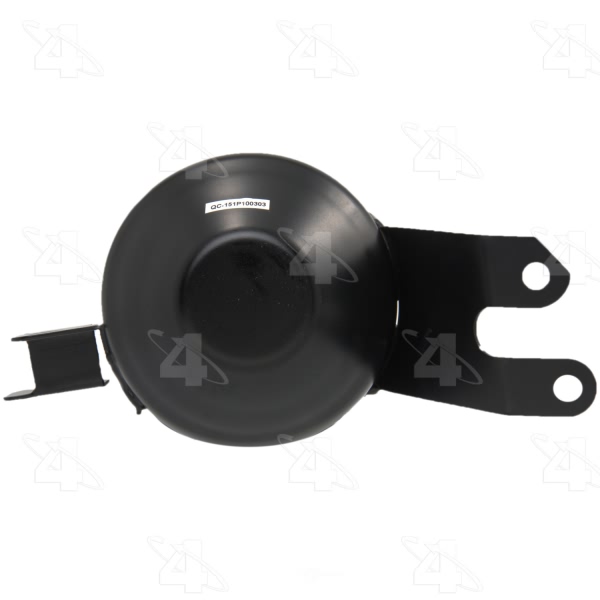

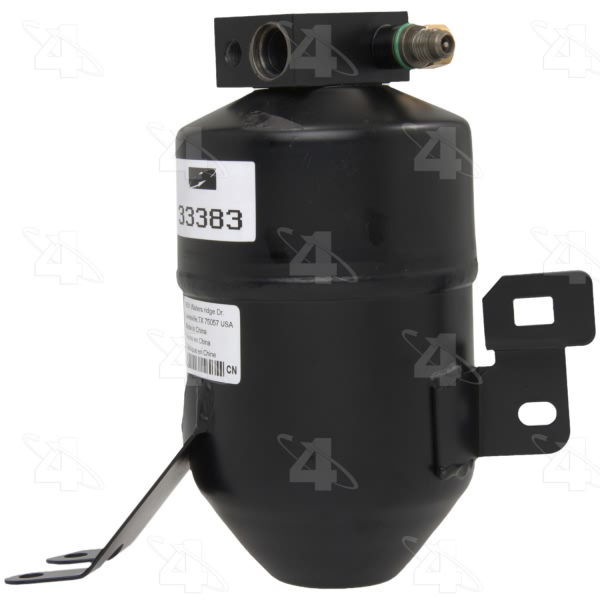

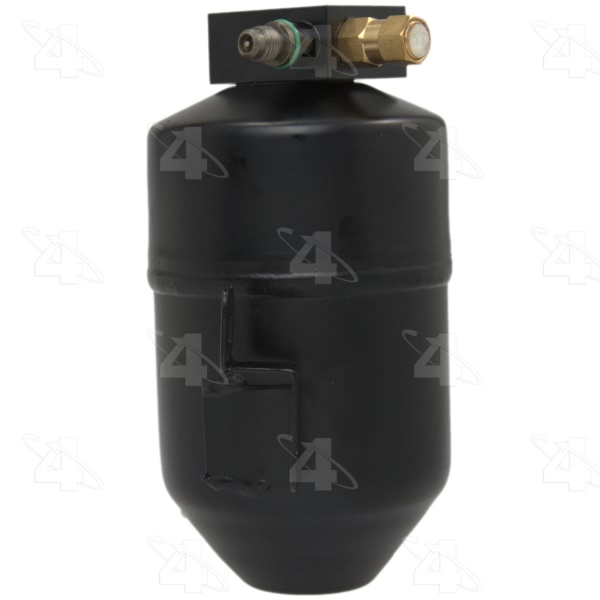

Part Description | A C Receiver Drier |
Body Diameter | 4.000 |
Body Length | 7.500 |
Bracket | w/ Bracket |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 101.600 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Dia. MM | 10.000 |
Inlet Filter Fitting Type | Flange |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 10.000 |
Length MM | 190.500 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24676] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24650] / Green O-Ring |
O-Ring C Quantity | 1 |
Outlet Fitting Type | Flange |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 10.000 |
Overall Depth IN | 7.500 |
P. R. V. | Yes |
Service Port | w/ Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361333833 |
Year Make Model | Trim | Engine |
---|---|---|
1994-1997 BMW 840Ci | All Trims | All Engines |
1994-1995 BMW 850CSi | All Trims | All Engines |
1993-1997 BMW 850Ci | All Trims | All Engines |
1991-1992 BMW 850i | All Trims | All Engines |
1996 BMW Z3 | All Trims | All Engines |
1997 BMW Z3 | All Trims | 4 Cyl 1.9L |
