Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33360 |
Part Description | A C Receiver Drier |
Body Diameter | 3.000 |
Body Length | 6.500 |
Bracket | w/ Bracket |
Connector B Type | Female O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 76.200 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Female |
Inlet Fitting Diameter | 0.375 |

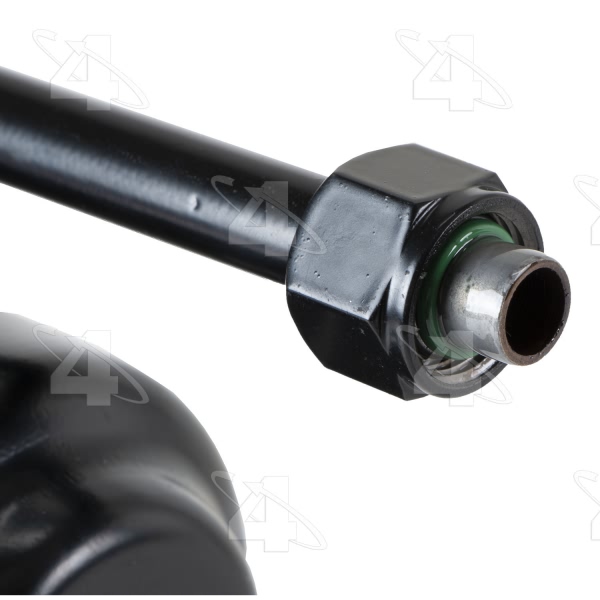

Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 165.100 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24610] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24650] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24606] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24608] / Green O-Ring |
O-Ring D Quantity | 2 |
Outlet Fitting Type | Female O-Ring |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.700 |
Overall Depth IN | 11.750 |
P. R. V. | Yes |
Service Port | w/o Service Port |
Sight Glass | Yes |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361333604 |
Year Make Model | Trim | Engine |
---|---|---|
1978-1985 Porsche 928 | All Trims | All Engines |
1986-1991 Porsche 928 | All Trims | 8 Cyl 5.0L |
