Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33340 |

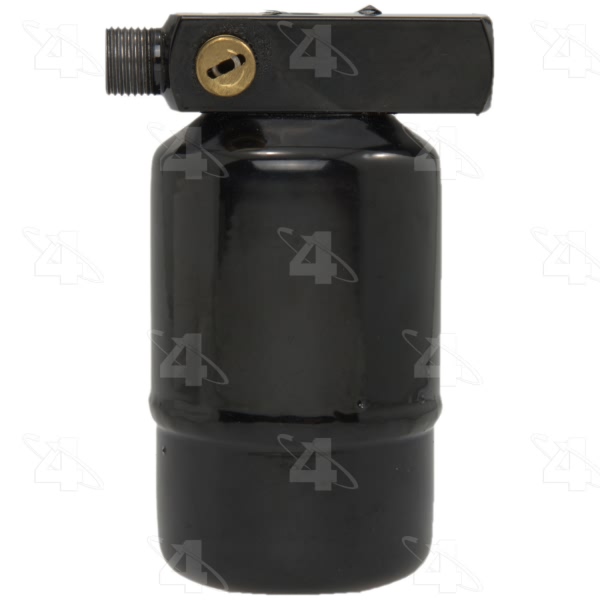

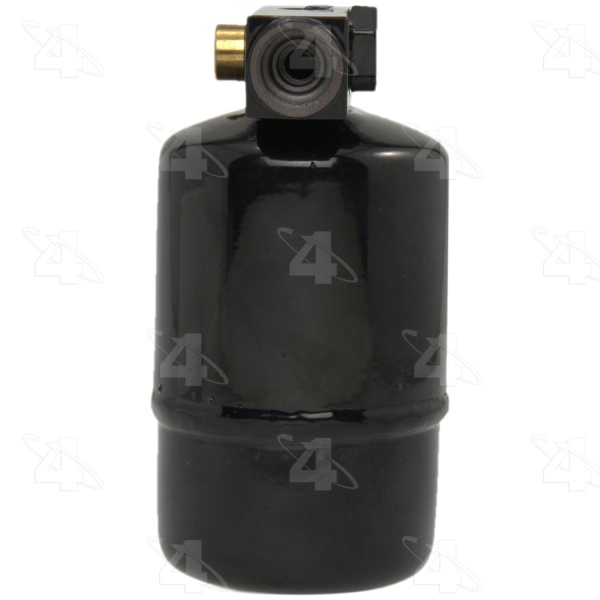

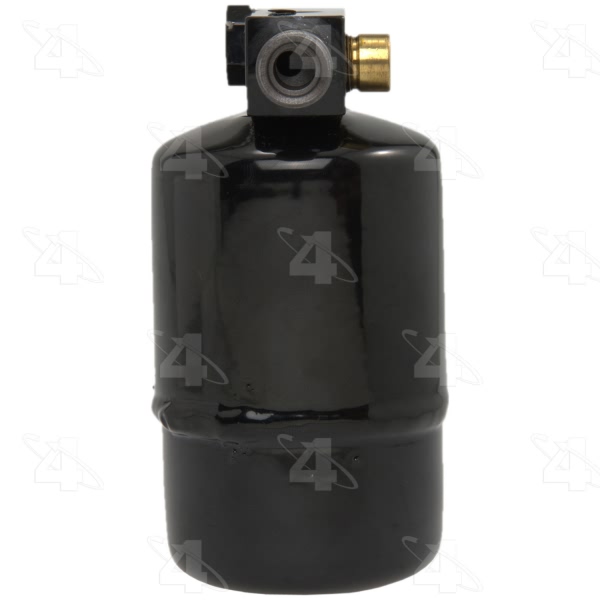

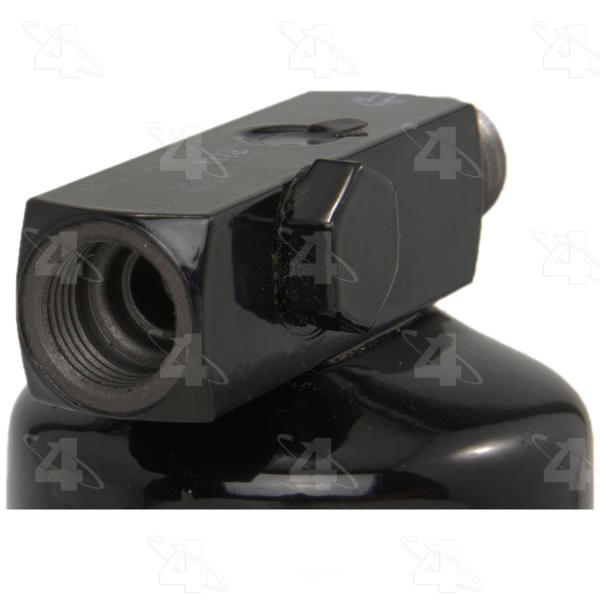

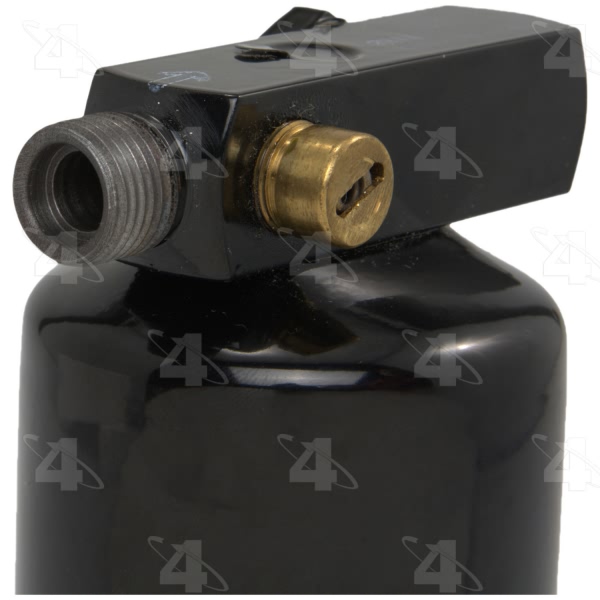

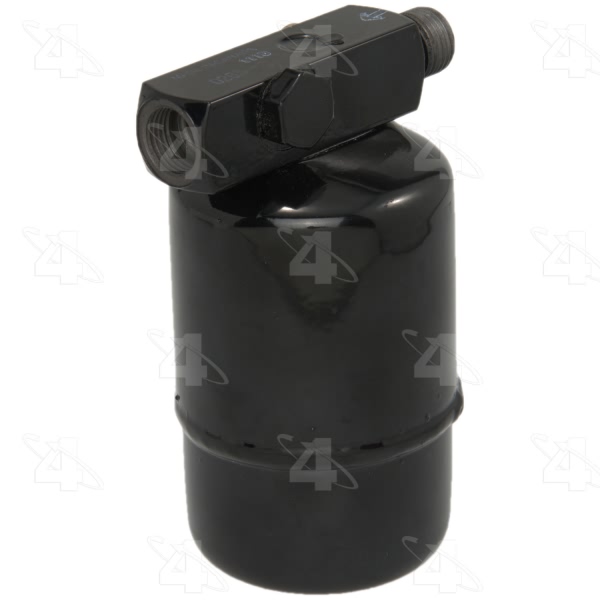

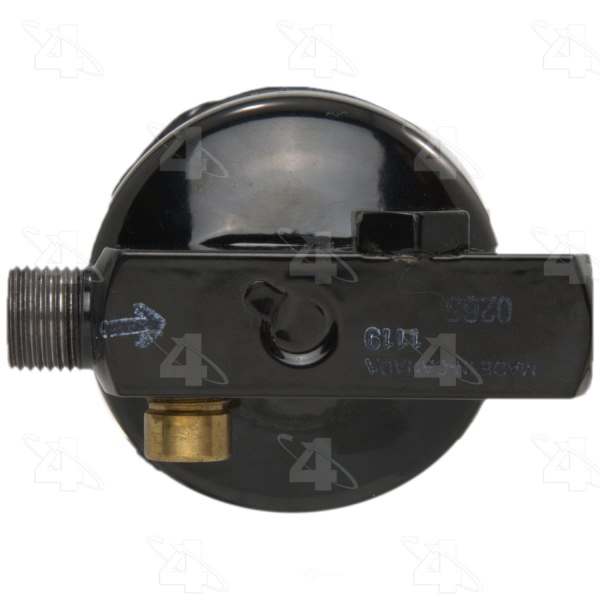

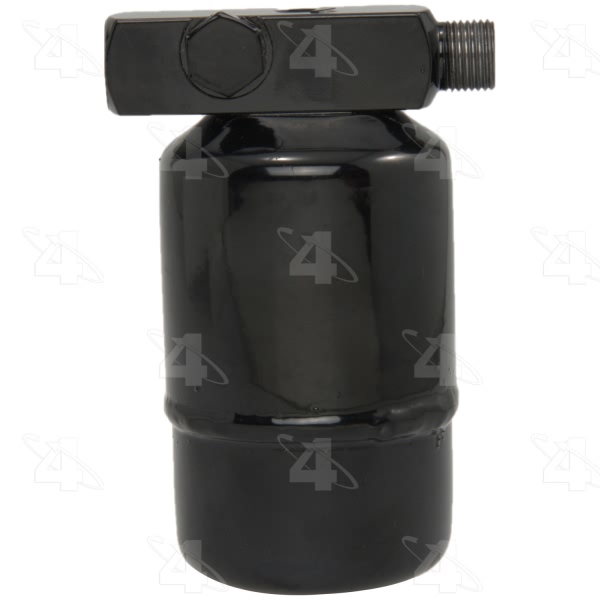

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 6.000 |
Bracket | w/o Bracket |
Connector B Type | Female O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 152.400 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 3 |
Outlet Fitting Type | Female O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 5.08 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361333406 |
Year Make Model | Trim | Engine |
---|---|---|
1986-1988 Chevrolet Sprint | All Trims | 3 Cyl 1.0L |
1976-1978 Chrysler Cordoba | All Trims | All Engines |
1977-1979 Chrysler LeBaron | All Trims | All Engines |
1976 Chrysler New Yorker | All Trims | 8 Cyl 6.6L |
1976 Chrysler New Yorker | All Trims | 8 Cyl 7.2L |
1977 Chrysler New Yorker | All Trims | All Engines |
1978 Chrysler New Yorker | All Trims | 8 Cyl 6.6L |
1978 Chrysler New Yorker | All Trims | 8 Cyl 7.2L |
1976-1978 Chrysler Newport | All Trims | All Engines |
1976 Chrysler Valiant | All Trims | All Engines |
