Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33329 |

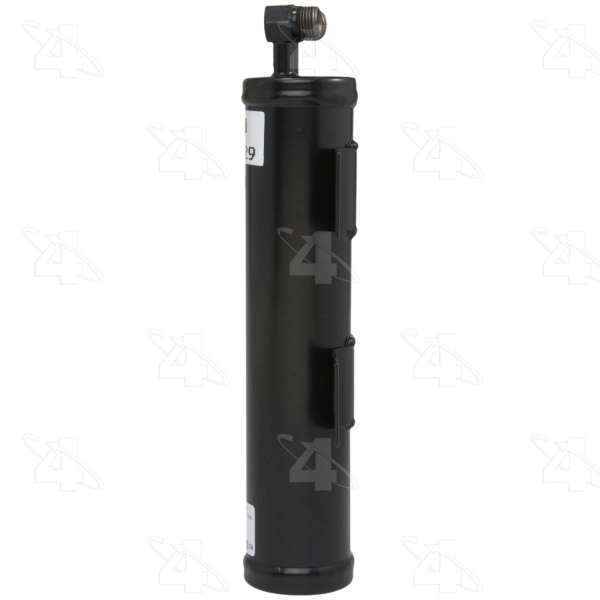

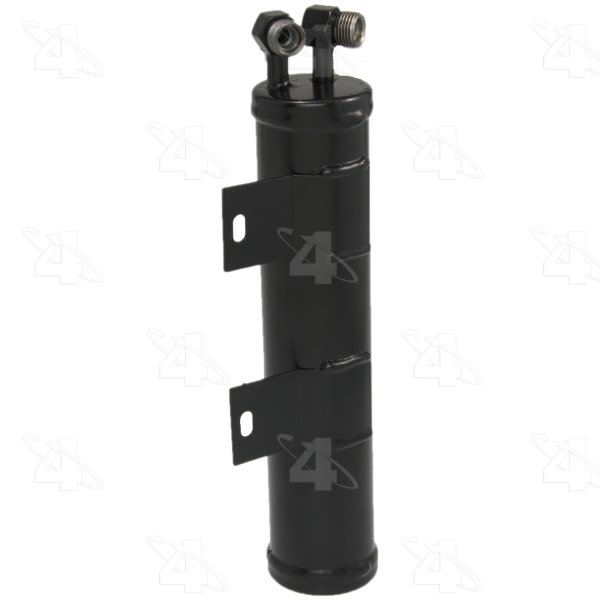

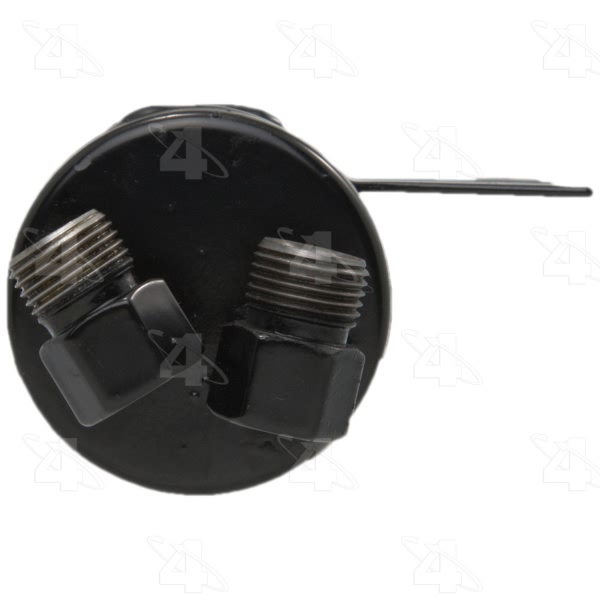

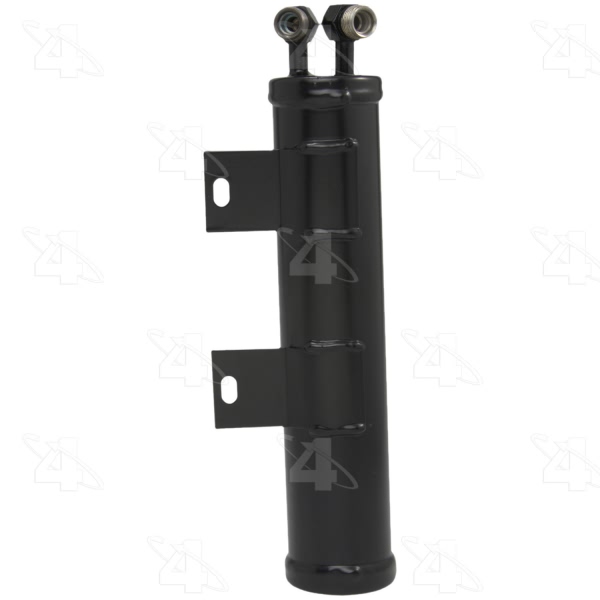

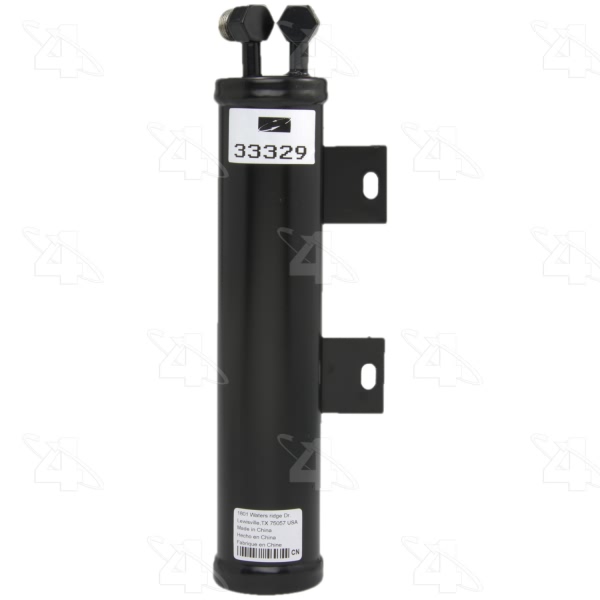

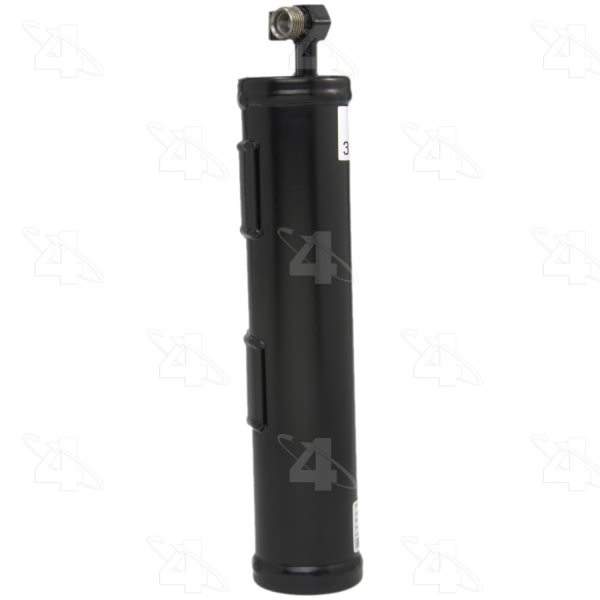

Part Description | A C Receiver Drier |
Body Diameter | 2.000 |
Body Length | 11.000 |
Bracket | w/ Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 50.800 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |

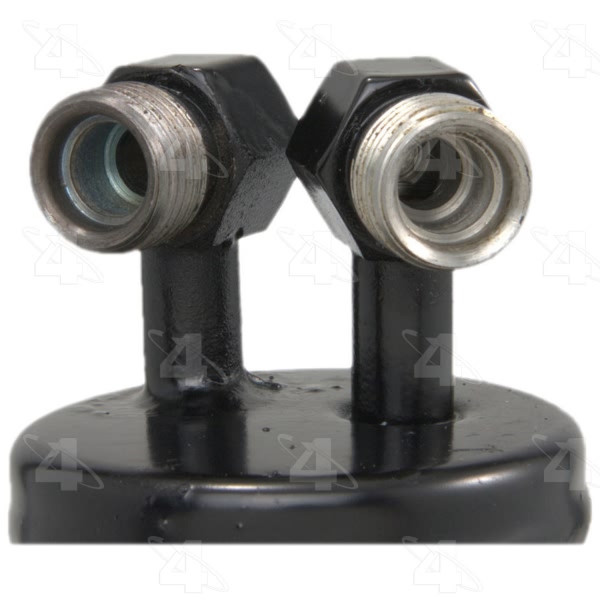

Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 279.400 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 11.000 |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Steel Filter Drier |
Switch Port | w/o Switch Port |
UPC | 096361333291 |
Year Make Model | Trim | Engine |
---|---|---|
1974-1975 Ford Maverick | All Trims | All Engines |
1974-1975 Mercury Comet | All Trims | All Engines |
