Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33321 |

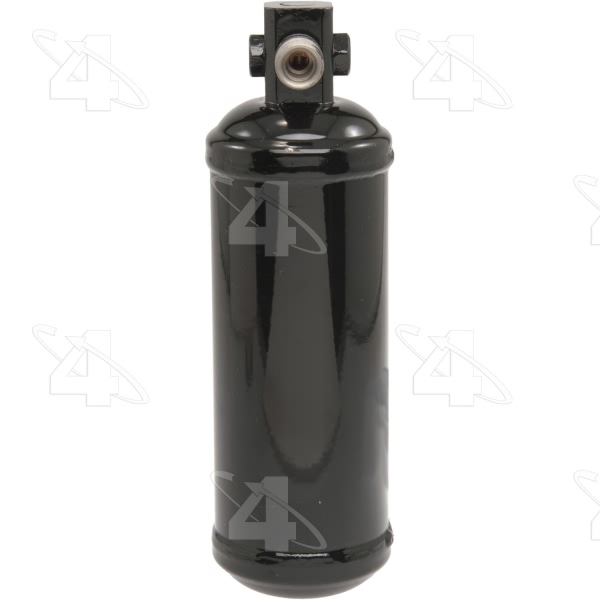

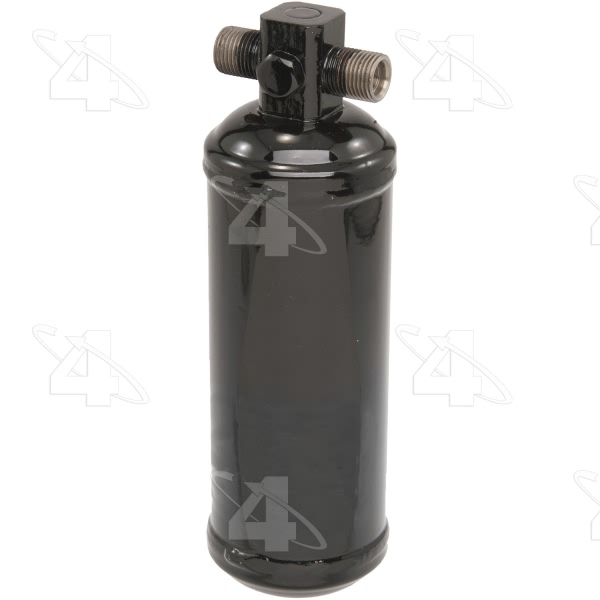

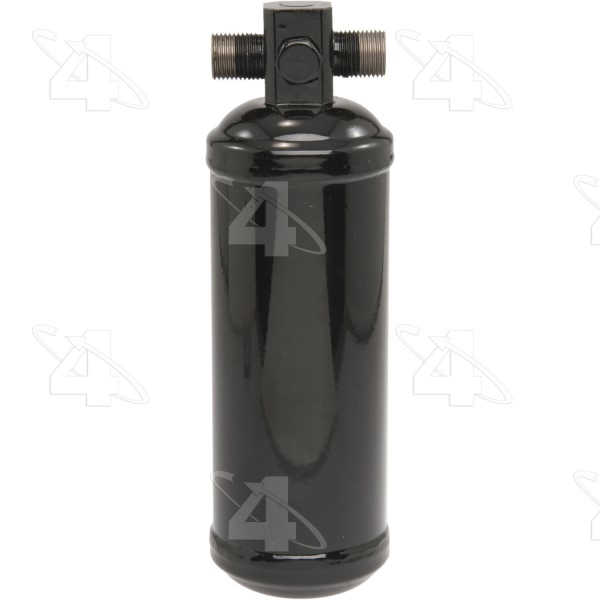

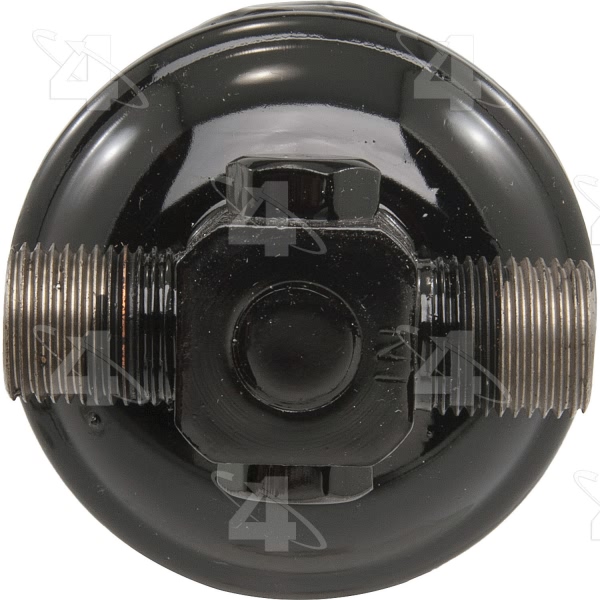

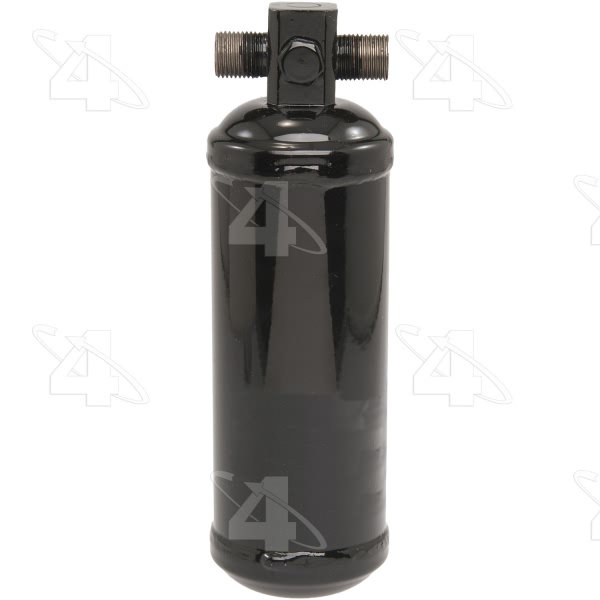

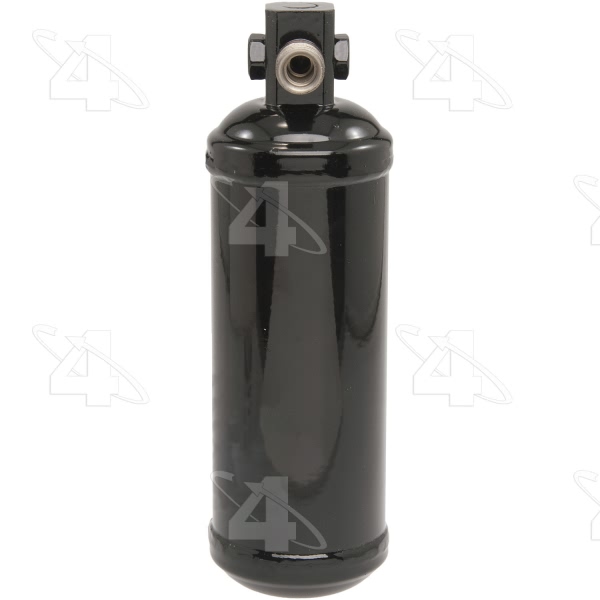

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 8.000 |
Bracket | w/o Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 190.500 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 7.500 |
Overall Depth MM | 190.500 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | Yes |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361333215 |
Year Make Model | Trim | Engine |
---|---|---|
1975-1977 Audi 100 Series | All Trims | All Engines |
1985 Chevrolet Sprint | All Trims | All Engines |
1987-1988 Chevrolet Sprint | All Trims | 3 Cyl 1.0L |
1961-1963 Chrysler 300 | All Trims | All Engines |
1959-1963 Chrysler Imperial | All Trims | 8 Cyl 6.8L |
1976 Chrysler New Yorker | All Trims | 8 Cyl 7.2L |
1961 Chrysler Newport | All Trims | 8 Cyl 5.9L |
1962-1963 Chrysler Newport | All Trims | All Engines |
1994-1995 Land Rover Defender 90 | All Trims | All Engines |
1997 Land Rover Defender 90 | All Trims | All Engines |
