Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33317 |

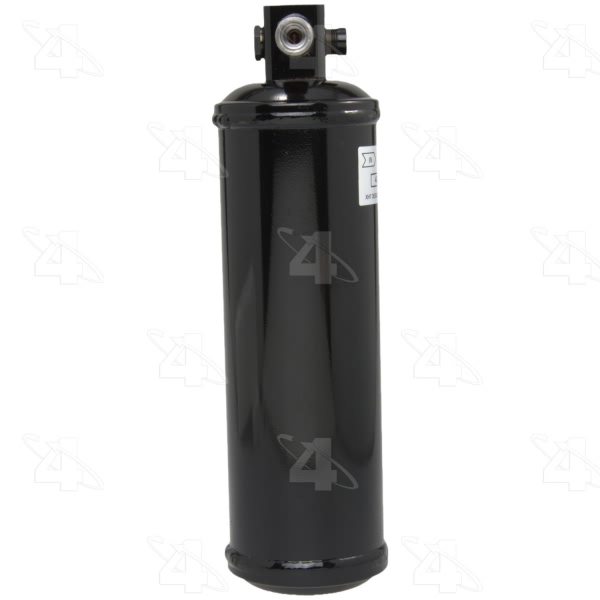

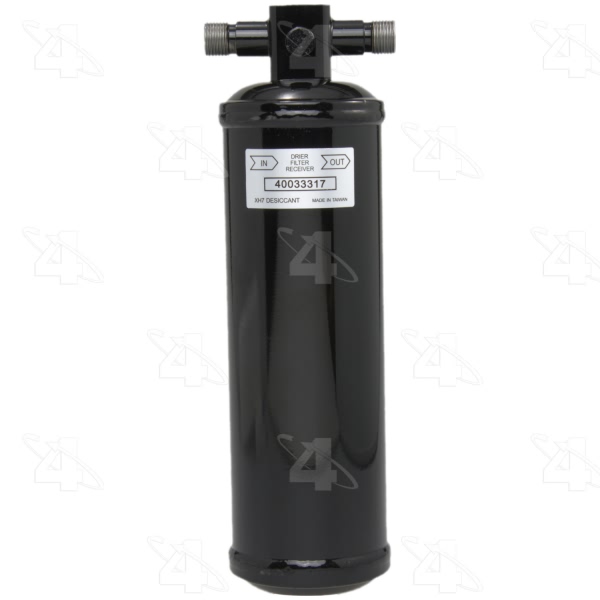

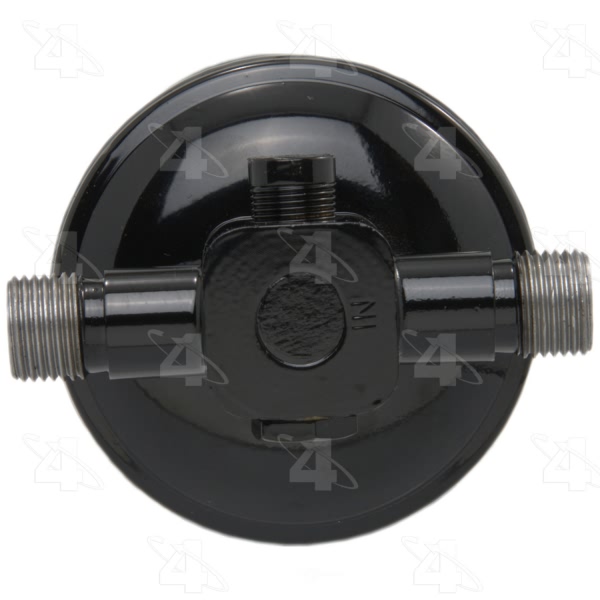

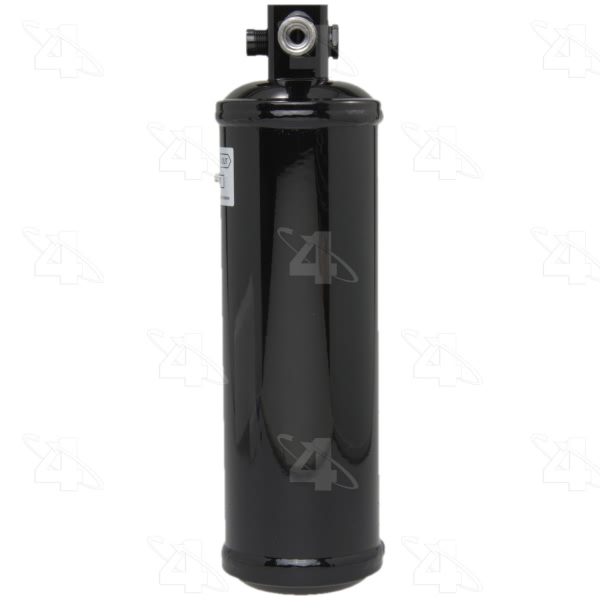

Part Description | A C Receiver Drier |
Body Diameter | 2.750 |
Body Length | 10.250 |
Bracket | w/o Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 69.850 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 260.350 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [35758] / Switch |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24606] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [16746] / Ferrule |
O-Ring C Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 10.25 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |

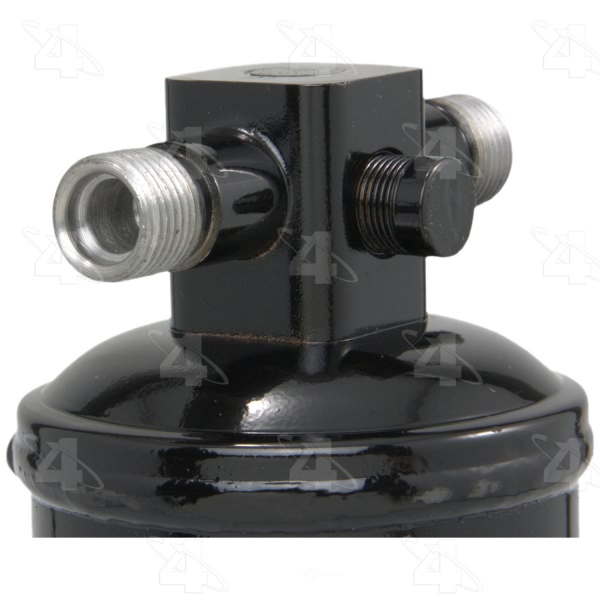

Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361333178 |
Year Make Model | Trim | Engine |
---|---|---|
1964-1970 Chrysler 300 | All Trims | All Engines |
1964-1965 Chrysler Imperial | All Trims | 8 Cyl 6.8L |
1966-1970 Chrysler Imperial | All Trims | All Engines |
1964-1970 Chrysler New Yorker | All Trims | All Engines |
1964 Chrysler Newport | All Trims | All Engines |
1965 Chrysler Newport | All Trims | 8 Cyl 6.3L |
1966-1970 Chrysler Newport | All Trims | All Engines |
1970 Dodge A100 | All Trims | All Engines |
1969-1970 Dodge A100 Truck | All Trims | All Engines |
1969-1970 Dodge A108 Van | All Trims | All Engines |
