Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33280 |

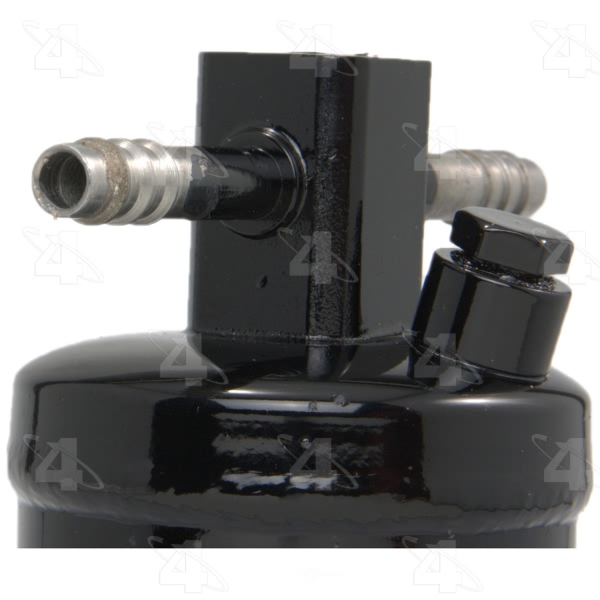

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 8.000 |
Bracket | w/o Bracket |
Connector B Type | Barb Fitting |
Connector Type | Barb Fitting |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Barb Fitting |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 203.200 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24612] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Barb Fitting |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 8.000 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | Yes |
Stud | Yes |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361332805 |
Year Make Model | Trim | Engine |
---|---|---|
1978 American Motors AMX | All Trims | All Engines |
1971 Chrysler 300 | All Trims | All Engines |
1975-1979 Chrysler Cordoba | All Trims | All Engines |
1980 Chrysler Cordoba | All Trims | 6 Cyl 3.7L |
1980 Chrysler Cordoba | All Trims | 8 Cyl 5.2L |
1980 Chrysler Cordoba | All Trims | 8 Cyl 5.9L |
1981-1983 Chrysler Cordoba | All Trims | All Engines |
1977-1981 Chrysler LeBaron | All Trims | All Engines |
1976 Chrysler New Yorker | All Trims | 8 Cyl 6.6L |
1977 Chrysler New Yorker | All Trims | All Engines |
