Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33276 |

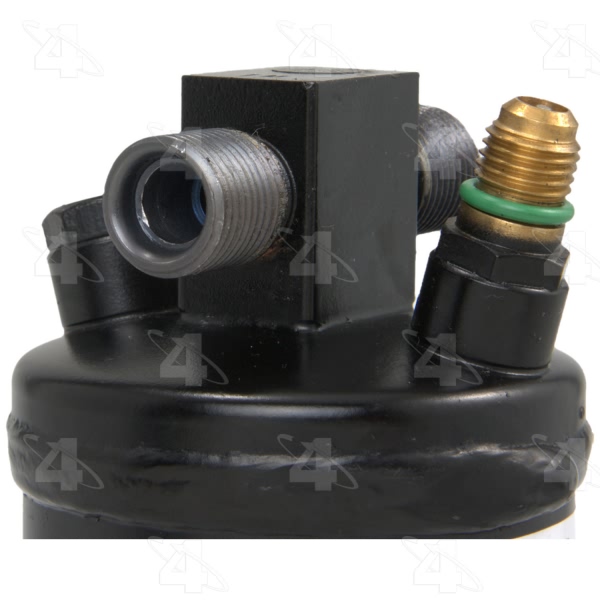

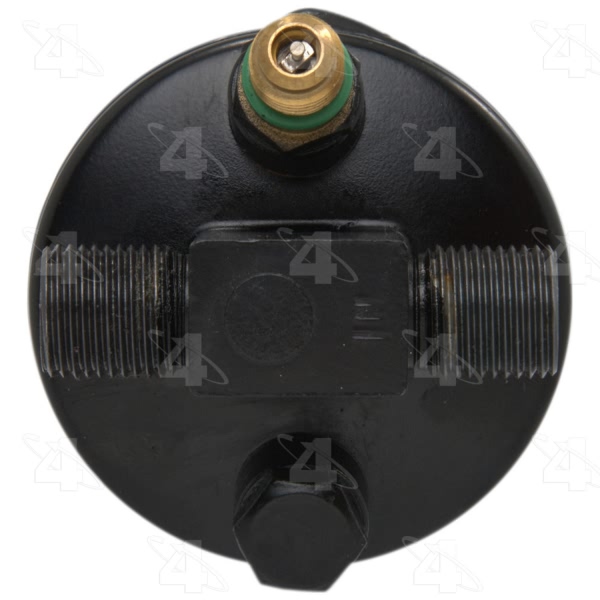

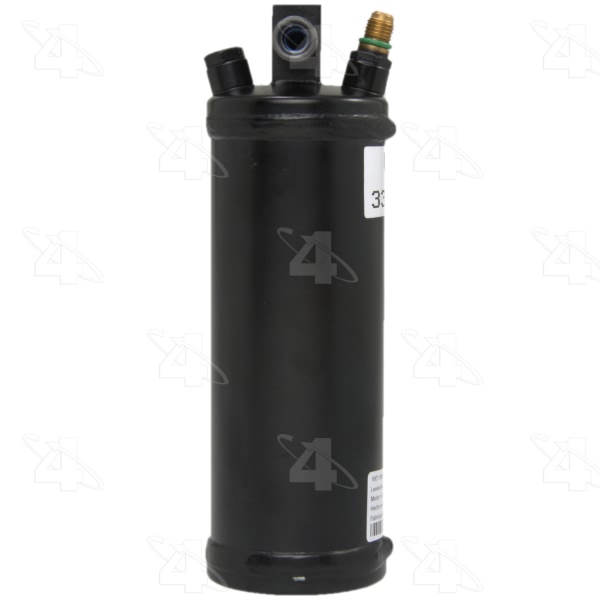

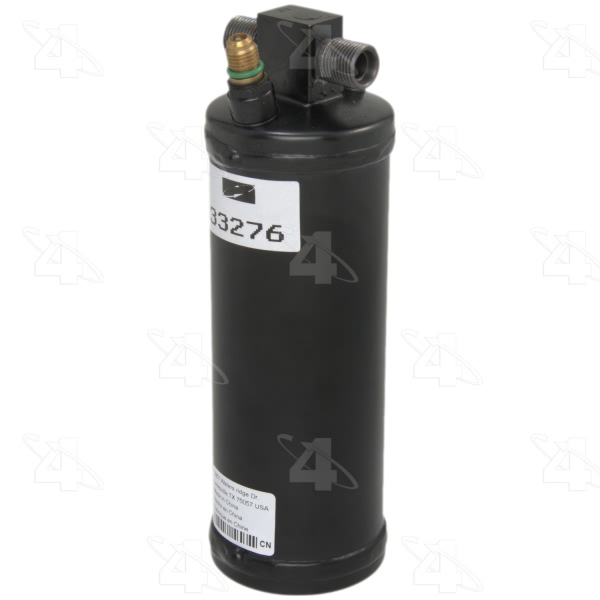

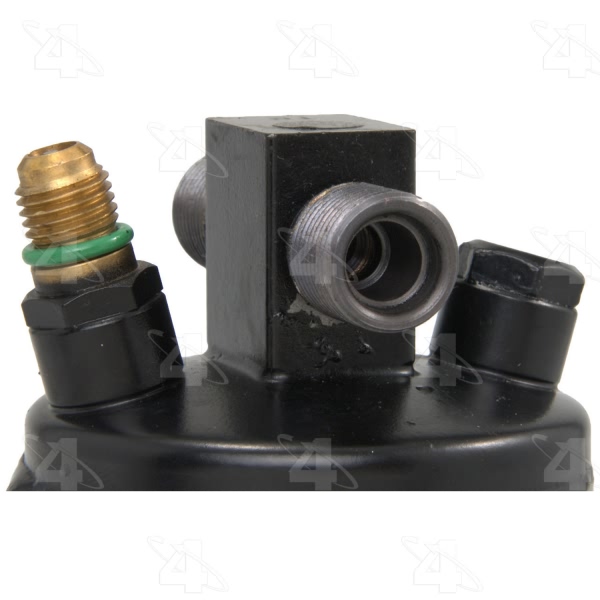

Part Description | A C Receiver Drier |
Body Diameter | 2.500 |
Body Length | 7.500 |
Bracket | w/o Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 190.500 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24606] / Green O-Ring |
O-Ring A Quantity | 3 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 7.500 |
P. R. V. | No |
Service Port | w/ Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.250 |
Switch Port Dia.MM | 6.350 |
UPC | 096361332768 |
Year Make Model | Trim | Engine |
---|---|---|
1980-1983 BMW 320i | All Trims | All Engines |
1985-1988 Chevrolet Spectrum | All Trims | All Engines |
1986 Dodge Mini Ram | All Trims | All Engines |
1986 Dodge Power Ram 50 | All Trims | All Engines |
1986 Dodge Ram 50 | All Trims | All Engines |
1989 Geo Spectrum | All Trims | All Engines |
1993 Hyundai Scoupe | All Trims | All Engines |
1985-1989 Isuzu I-Mark | All Trims | All Engines |
1983-1989 Isuzu Impulse | All Trims | All Engines |
1984 Isuzu Pickup | All Trims | 4 Cyl 1.9L |
