Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33274 |

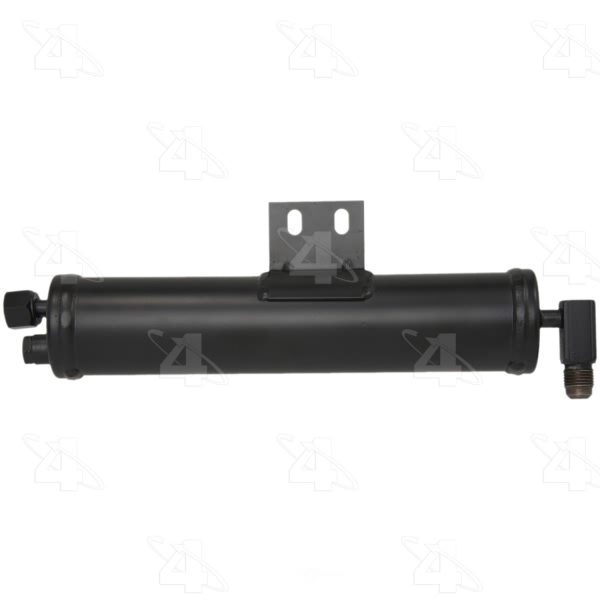

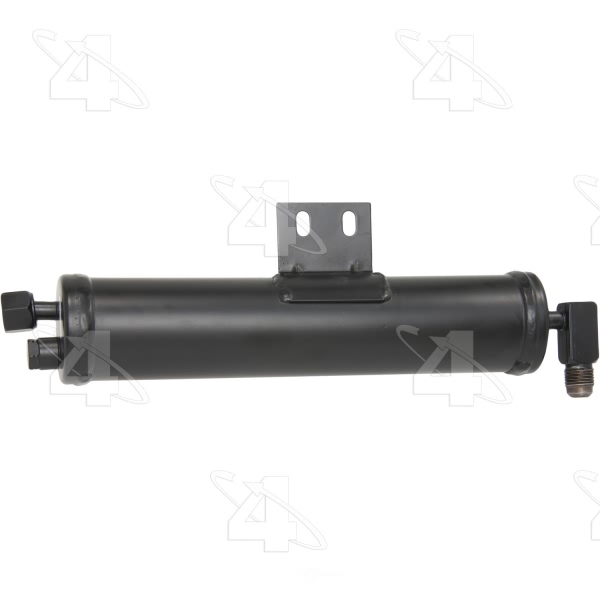

Part Description | A C Receiver Drier |
Body Diameter | 2.000 |
Body Length | 12.000 |
Bracket | w/ Bracket |
Connector B Type | Male Flare |
Connector Type | Female Flare |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Thread Diameter | 0.625 |
Inlet Filter Fitting Type | Female |
Inlet Fitting Diameter | 0.375 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 304.800 |
Material | Steel |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24612] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Female O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | 0.375 |
Outlet MM | 9.525 |
Overall Depth IN | 11.750 |
Overall Depth MM | 298.450 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Steel Filter Drier |
Switch Port | w/ Switch Port |
UPC | 096361332744 |
Year Make Model | Trim | Engine |
---|---|---|
1971 Ford Maverick | All Trims | All Engines |
1967-1968 Ford Mustang | All Trims | All Engines |
1971 Mercury Comet | All Trims | All Engines |
1967-1968 Mercury Cougar | All Trims | All Engines |
