Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33116 |

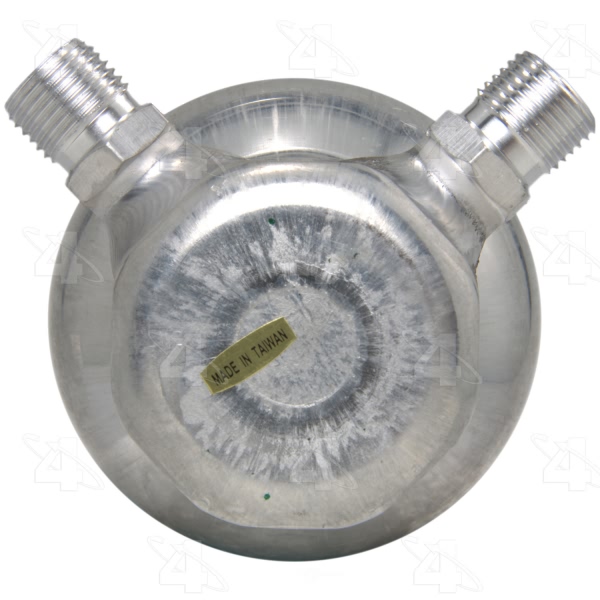

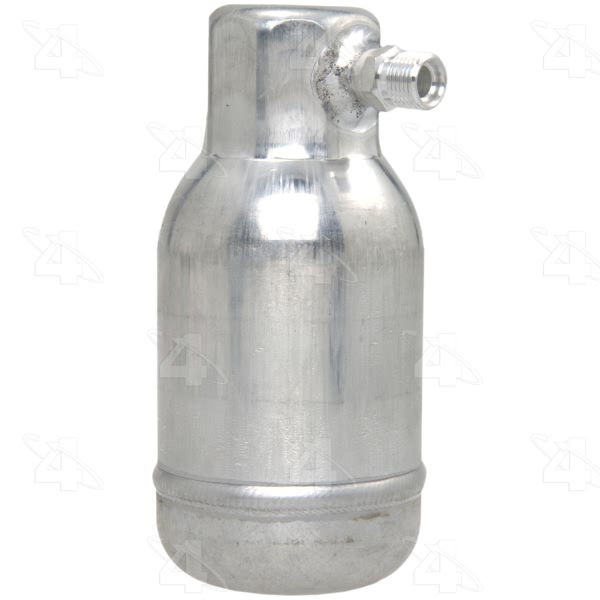

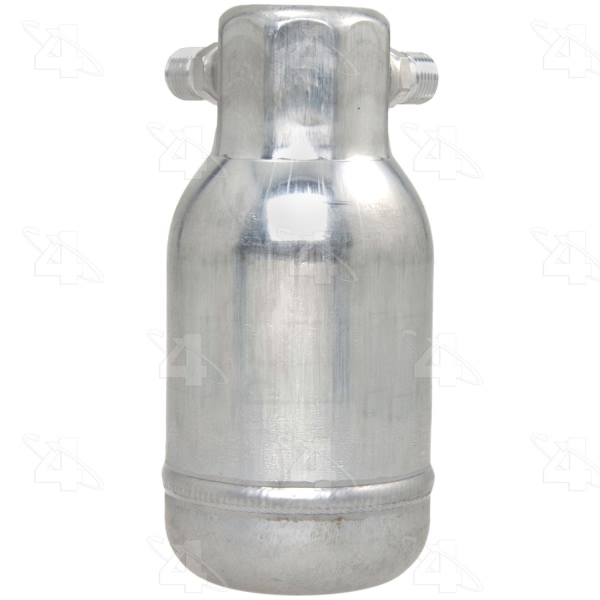

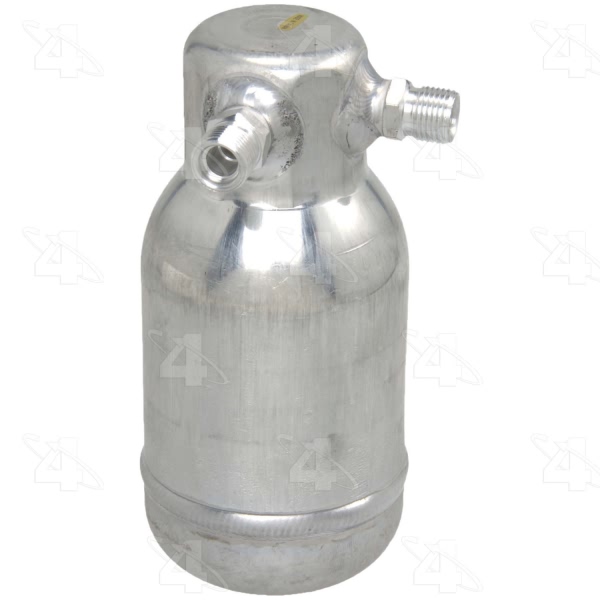

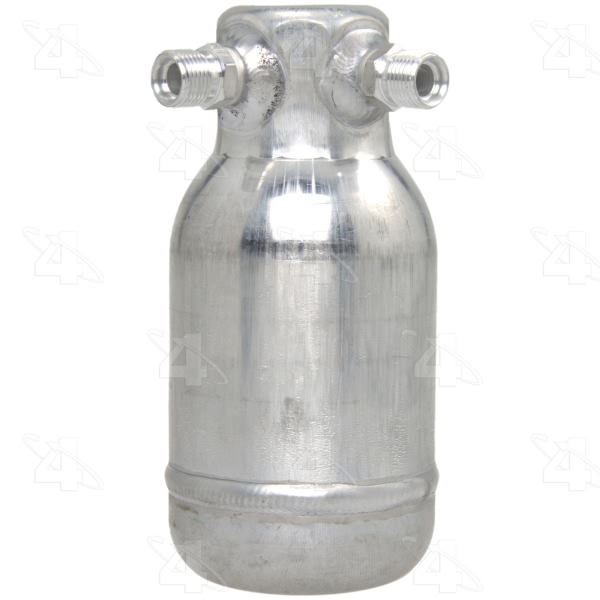

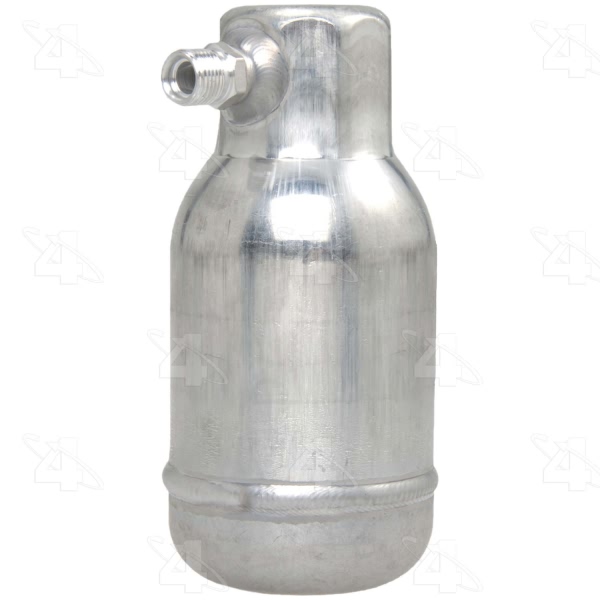

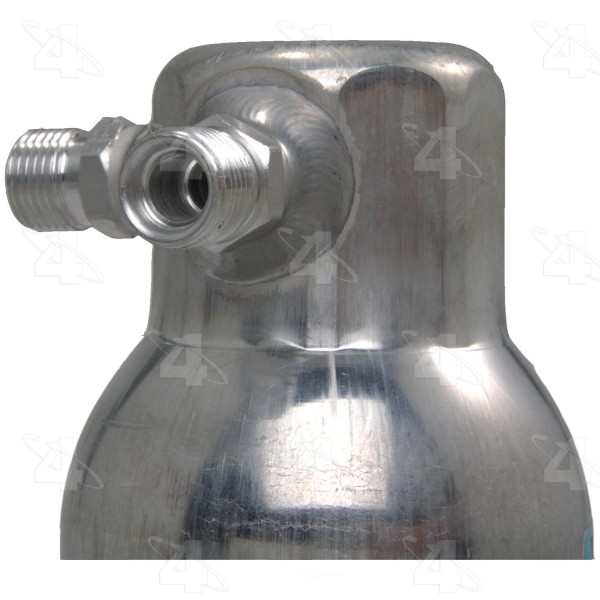

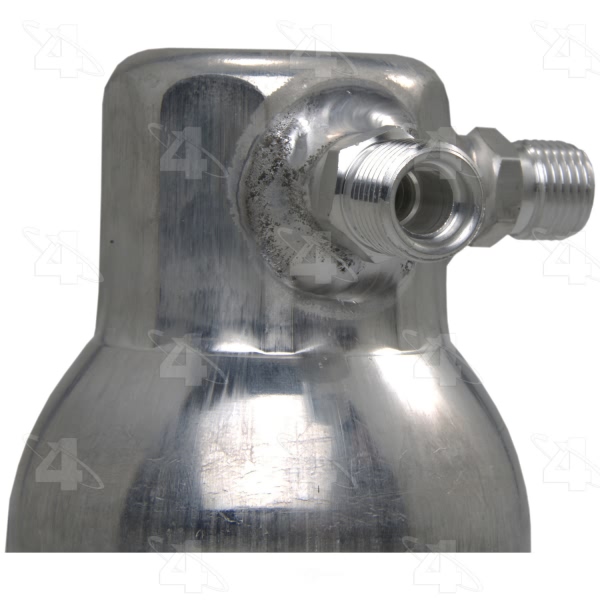

Part Description | A C Receiver Drier |
Body Diameter | 3.000 |
Body Length | 7.000 |
Bracket | w/o Bracket |
Connector B Type | Male Insert O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 76.200 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | .426 |
Inlet Fitting Type | Male Insert O-Ring |
Inlet Fraction | 3/8 |
Inlet IN | 0.375 |
Inlet MM | 9.525 |
Length MM | 177.800 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24612] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Male Insert O-Ring |
Outlet Fraction | 3/8 |
Outlet IN | .414 |
Outlet MM | 9.525 |
Overall Depth IN | 6.45 |
Pad Mount | w/o Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/o Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361331167 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Buick Skylark | All Trims | All Engines |
1992-1993 Chevrolet Beretta | All Trims | All Engines |
1992-1993 Chevrolet Corsica | All Trims | All Engines |
1992-1993 Oldsmobile Achieva | All Trims | All Engines |
1992-1993 Pontiac Grand Am | All Trims | All Engines |
