Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83220 |

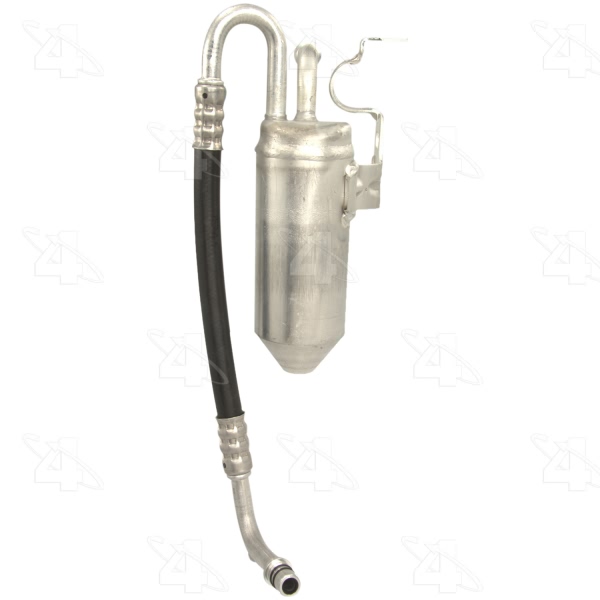

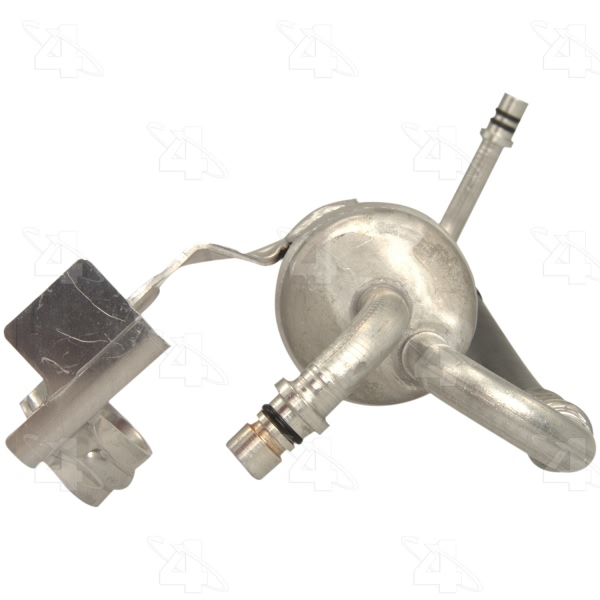

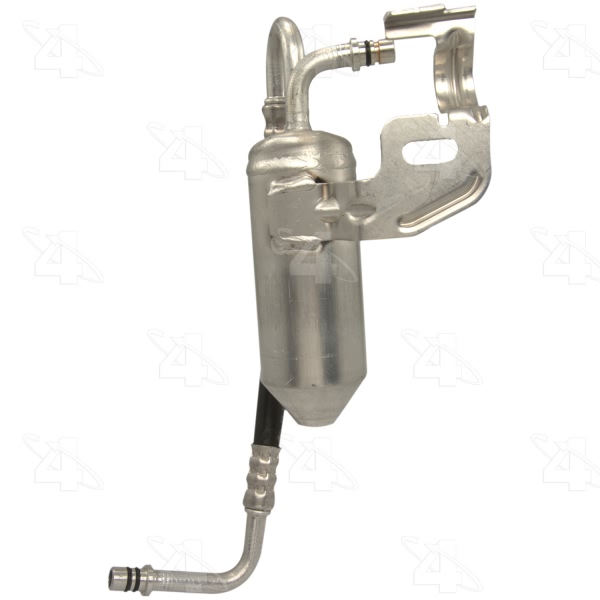

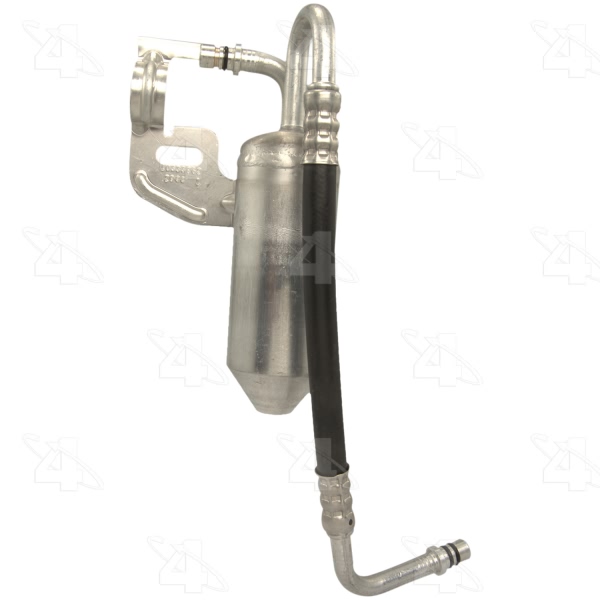

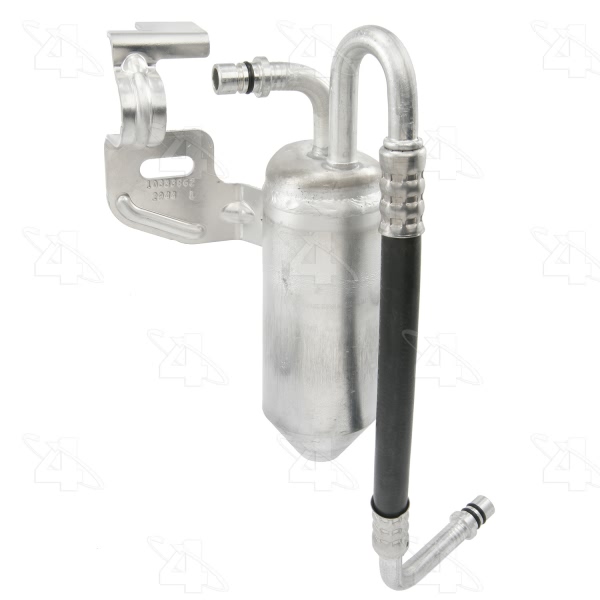

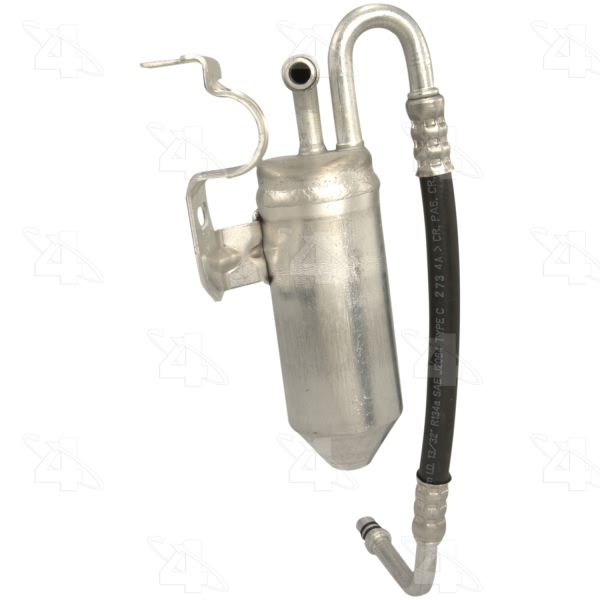

Part Description | A C Receiver Drier With Hose Assembly |
Body Diameter | 2.500 |
Body Length | 6.000 |
Bracket | w/ Bracket |
Connector B Type | Dual O-Ring |
Connector Type | Dual O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 63.500 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Male |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | .426 |
Inlet Fitting Type | Dual O-Ring |
Length MM | 152.400 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24668] / Green O-Ring |
O-Ring A Quantity | 4 |
Outlet Fitting Type | Dual O-Ring |
Outlet IN | .426 |
Overall Depth IN | 6.000 |
Service Port | w/ Service Port |
Sight Glass | No |
Style | Filter Drier w/ Hose |
Switch Port | w/o Switch Port |
UPC | 096361832206 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Chevrolet Impala | All Trims | All Engines |
2004-2005 Chevrolet Monte Carlo | All Trims | All Engines |
2004 Pontiac Grand Prix | All Trims | All Engines |
