Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 33716 |

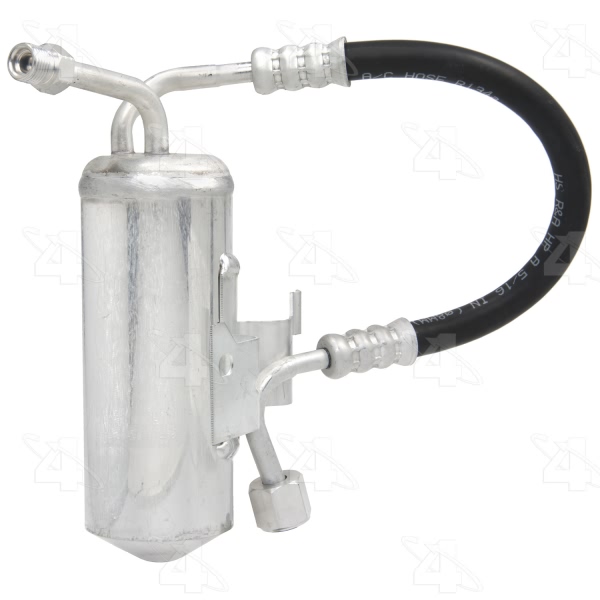

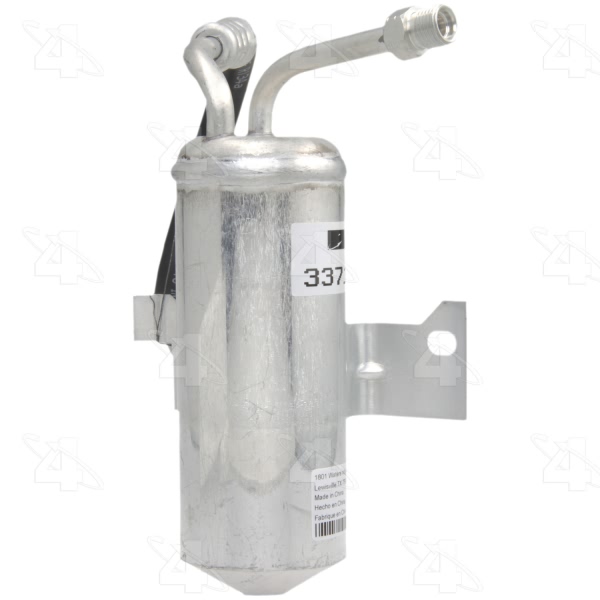

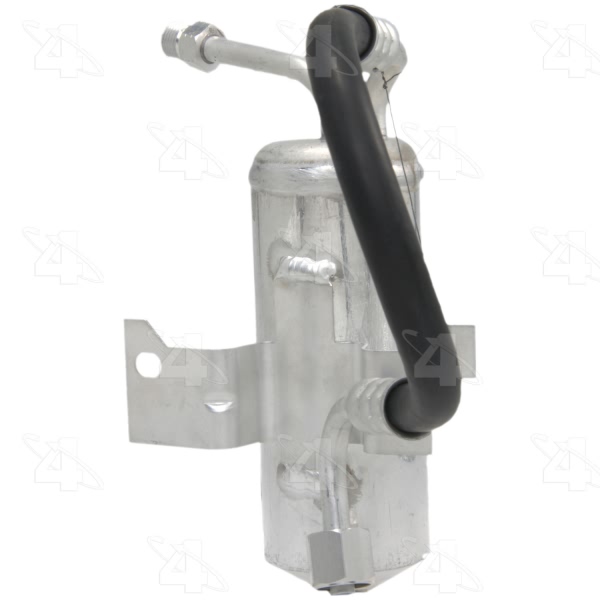

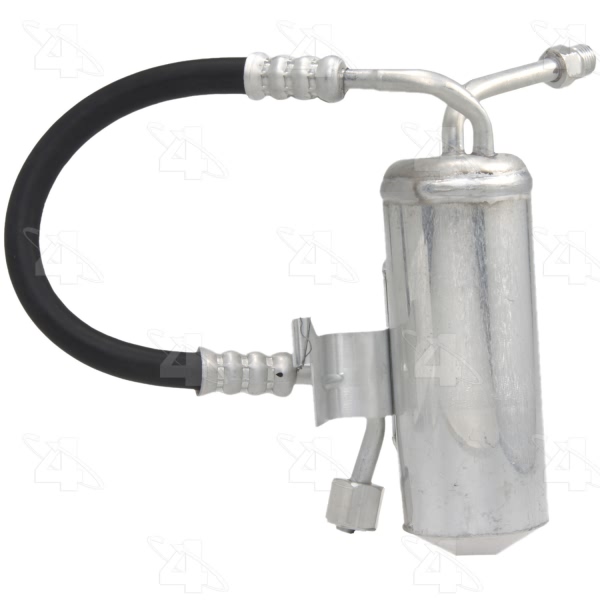

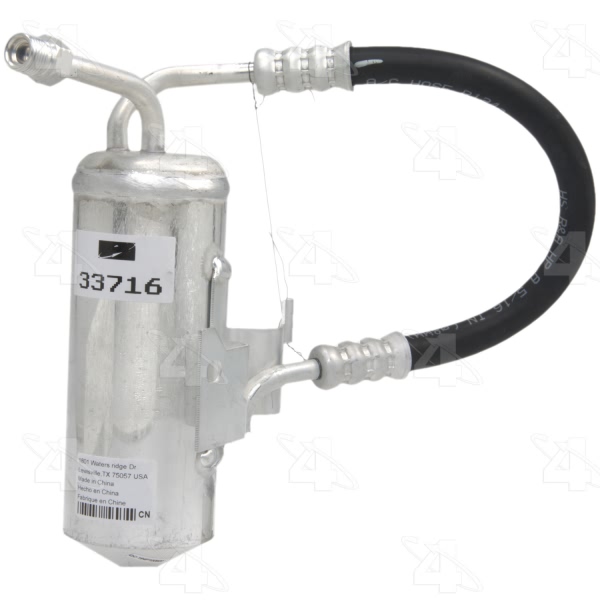

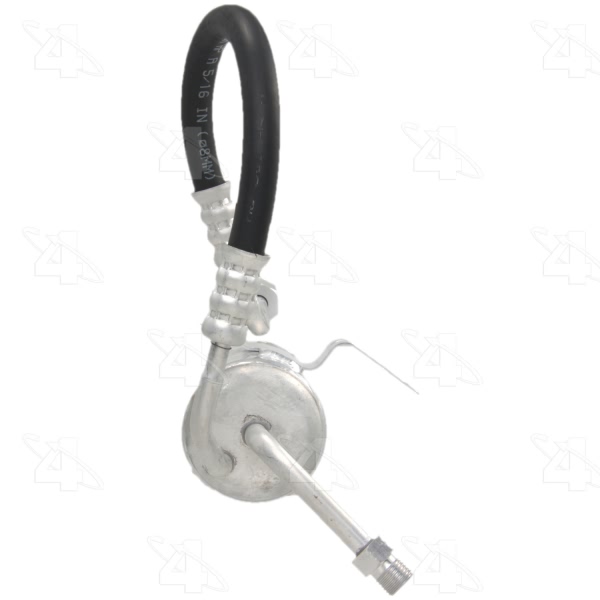

Part Description | A C Receiver Drier With Hose Assembly |
Body Diameter | 2.375 |
Body Length | 6.500 |
Bracket | w/ Bracket |
Connector B Type | Female O-Ring |
Connector Type | Male Insert O-Ring |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 60.325 |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Female |
Inlet Filter Fitting Type | Male |
Inlet Fitting Diameter | 0.375 |

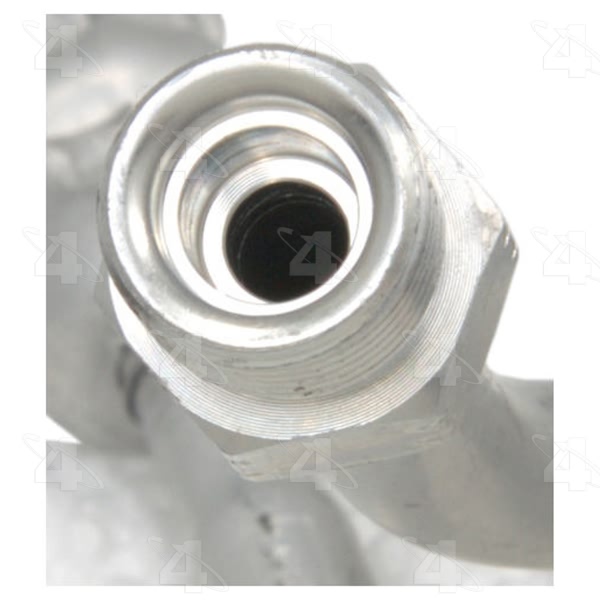

Inlet Fitting Type | Male Insert O-Ring |
Length MM | 165.000 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
New or Reman | New |
O-Ring A Number/Desc | [24646] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24606] / Green O-Ring |
O-Ring B Quantity | 1 |

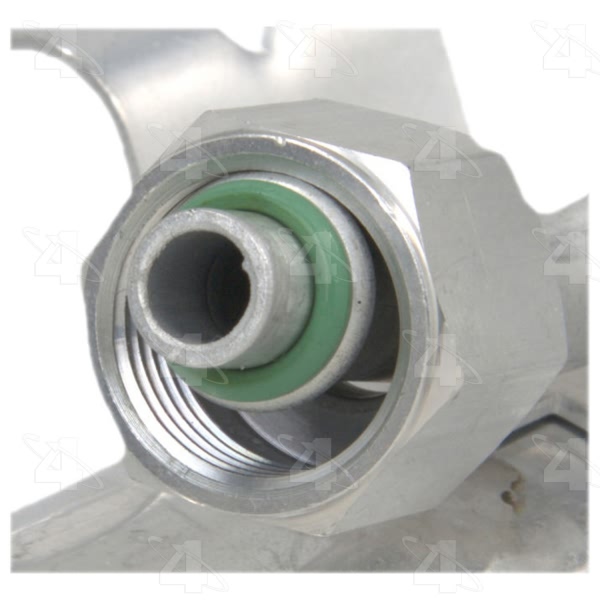

Outlet Fitting Type | Female O-Ring |
Outlet IN | 0.375 |
Overall Depth IN | 6.500 |
P. R. V. | No |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Filter Drier w/ Hose |
Switch Port | w/o Switch Port |
UPC | 096361337169 |
Year Make Model | Trim | Engine |
---|---|---|
1994-2002 Saturn SC1 | All Trims | All Engines |
1994-2002 Saturn SC2 | All Trims | All Engines |
1994-2002 Saturn SL | All Trims | All Engines |
1994-2002 Saturn SL1 | All Trims | All Engines |
1994-2002 Saturn SL2 | All Trims | All Engines |
1994-1999 Saturn SW1 | All Trims | All Engines |
1994-2001 Saturn SW2 | All Trims | All Engines |
