Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56827 |

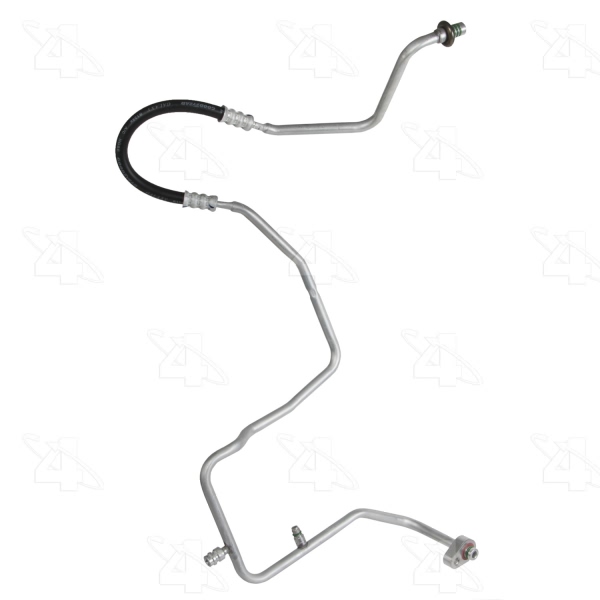

Part Description | A C Liquid Line Hose Assembly |
Bracket | w/o Bracket |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
O-Ring A Number/Desc | [24666] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24069] / Gasket |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/ Orifice Tube |
Refrigerant Type | R134-A |

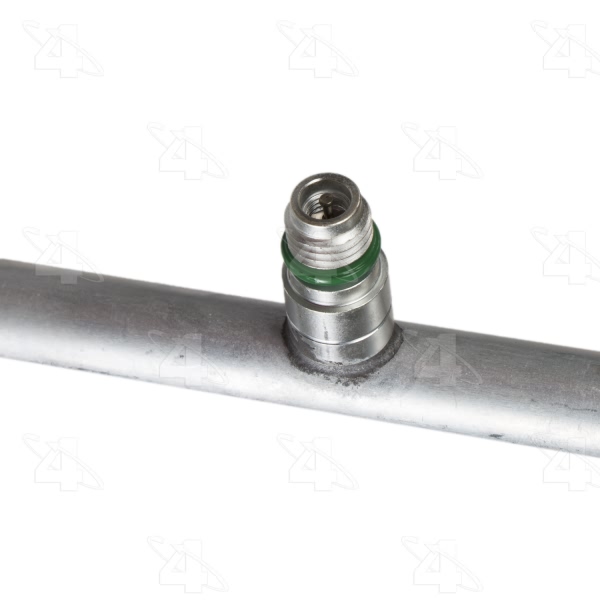

Service Port | w/ Service Port |
Service Port Size | 16 mm |
Service Port Type | R134-A Quick Disconnect |
Style | Liquid Line Hose Assembly w/ Captured Orifice Tube |

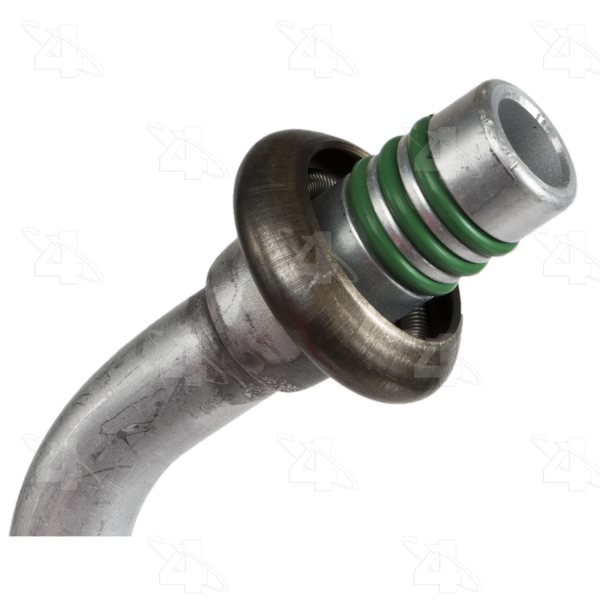

Suction End Type | Male Springlock |
Svc Port High Side | High Side |
Switch Port Quantity | 1 |
Switch Port Size | M10x1.250 |

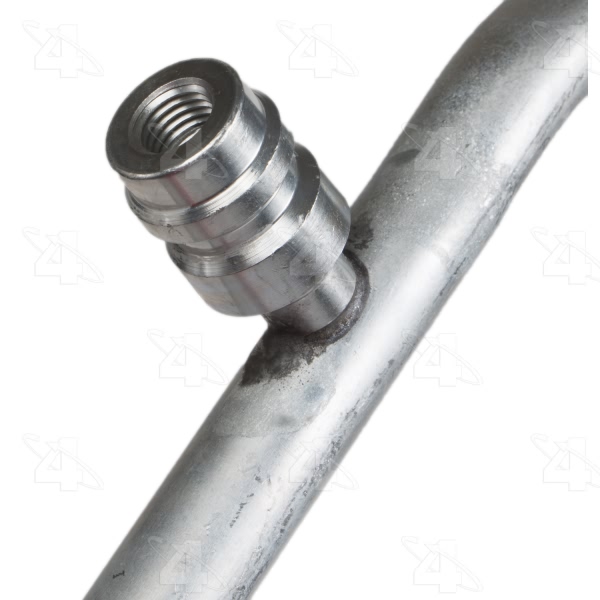

Switch Service Port | w/ Switch Port |
UPC | 096361568273 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2011 Dodge Dakota | All Trims | All Engines |
2006-2008 Mitsubishi Raider | All Trims | All Engines |
2011 Ram Dakota | All Trims | All Engines |
