Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56760 |

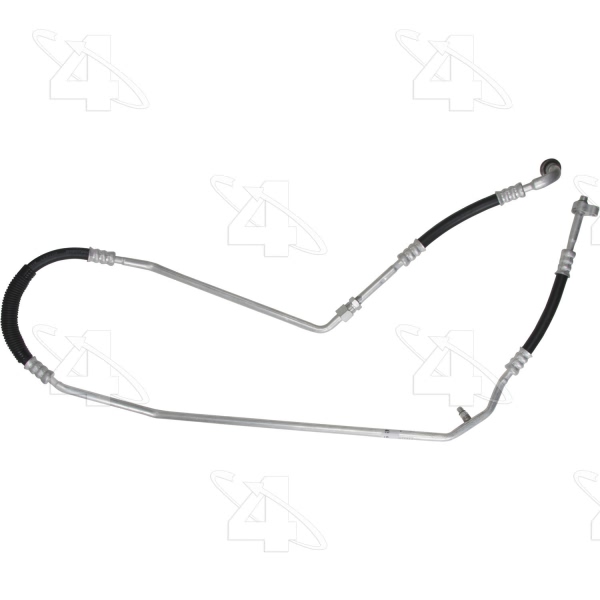

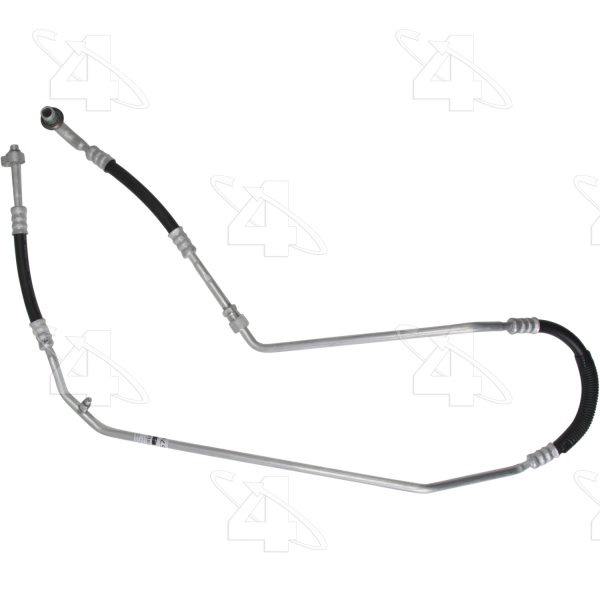

Part Description | A C Liquid Line Hose Assembly |
Bracket | w/o Bracket |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line MM | 0.625 |
O-Ring A Number/Desc | [24661] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24670] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24222] / Spring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24650] / Green O-Ring |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/ Orifice Tube |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Liquid Line Hose Assembly w/ Serviceable Orifice Tube |
Suction End Type | P-Nut Fitting |
Switch Port Quantity | 1 |
Switch Port Size | M10x1.250 |
Switch Service Port | w/ Switch Port |
UPC | 096361567603 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Ford Focus | All Trims | 4 Cyl 2.3L |
2005 Ford Focus | All Trims | 4 Cyl 2.0L |
