Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 39418 |

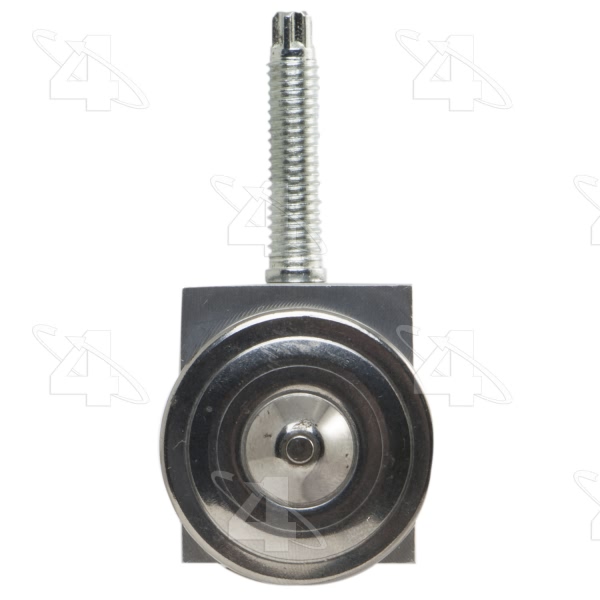

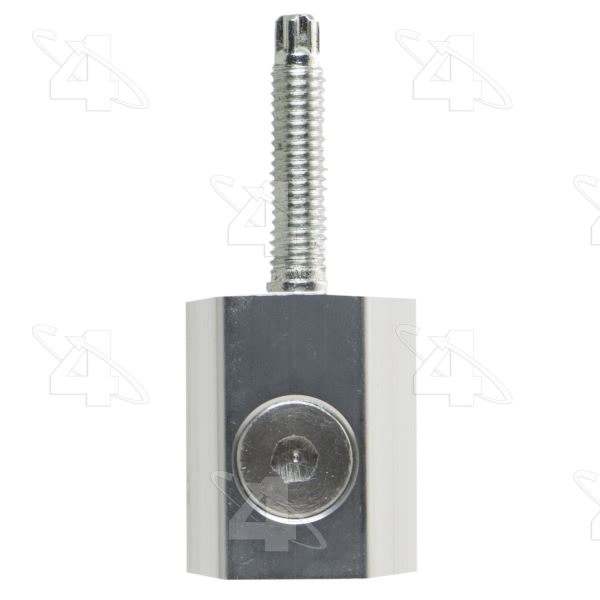

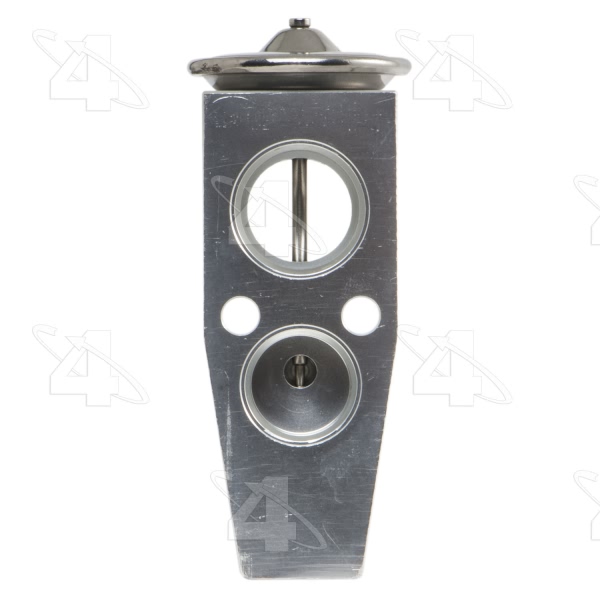

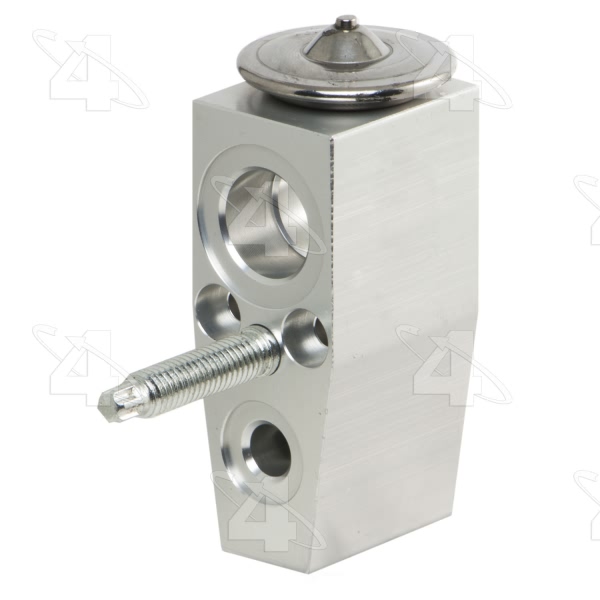

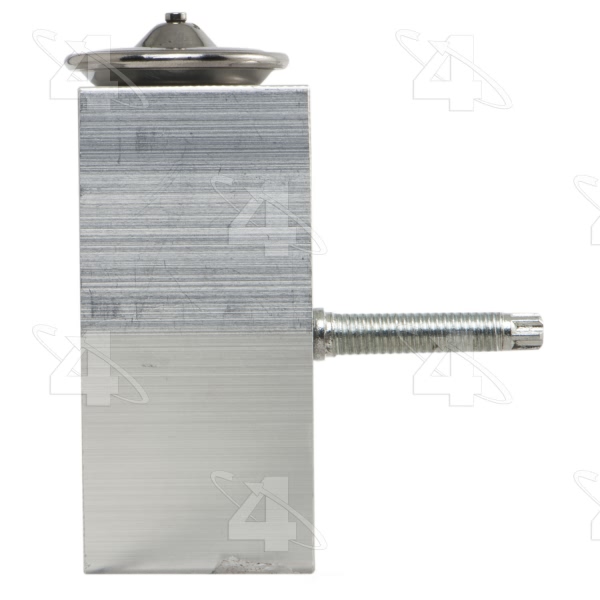

Part Description | A C Expansion Valve |
Color | Aluminum |
Liquid Inlet Fitting Gender | Female |
Liquid Inlet Fitting Thread Diameter | No. 6 |
Liquid Inlet Style | Sealing Washer |
Liquid Inlet Type | Sealing Washer |
Liquid Outlet Fitting Gender | Female |
Liquid Outlet Fitting Thread Diameter | No. 10 |
Liquid Outlet Style | Captured O-Ring |
Liquid Outlet Type | O-Ring |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Hole Quantity | 2 |
O-Ring A Number/Desc | [24401] / Slim Line Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24661] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24681] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24404] / Slimline Washer |
O-Ring D Quantity | 1 |
Refrigerant Type | R134A |
Style | w/o Solenoid |
Suction Inlet Fitting Gender | Female |
Suction Inlet Fitting Thread Diameter | No. 12 |
Suction Inlet Style | Captured O-Ring |
Suction Inlet Type | O-Ring |
Suction Outlet Fitting Gender | Female |
Suction Outlet Fitting Thread Diameter | No. 12 |
Suction Outlet Style | Sealing Washer |
Suction Outlet Type | Sealing Washer |
Super Heat | -16.0 |
Switch Included | Not Included |
Tonnage | 1.5 |
UPC | 096361394186 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2014 Ram 1500 | All Trims | All Engines |
2013-2014 Ram 2500 | All Trims | All Engines |
2013-2014 Ram 3500 | All Trims | All Engines |
2013-2014 Ram 4000 | All Trims | All Engines |
