Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 39377 |

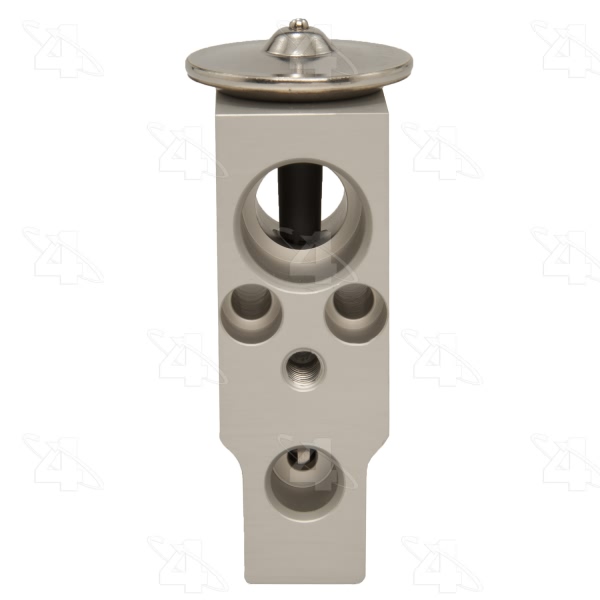

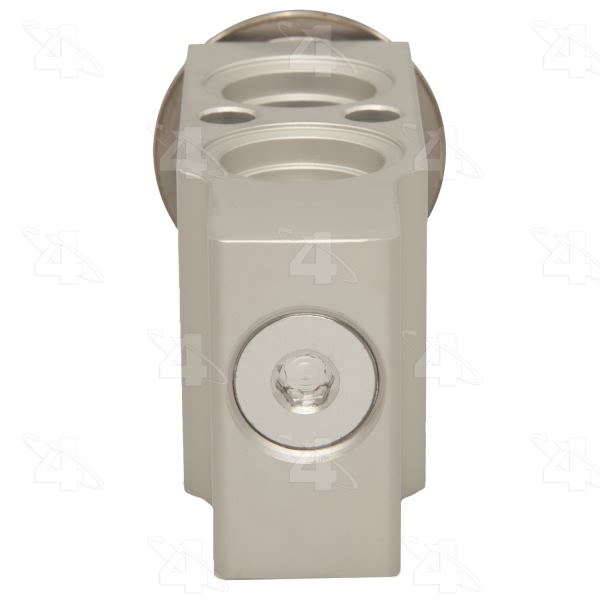

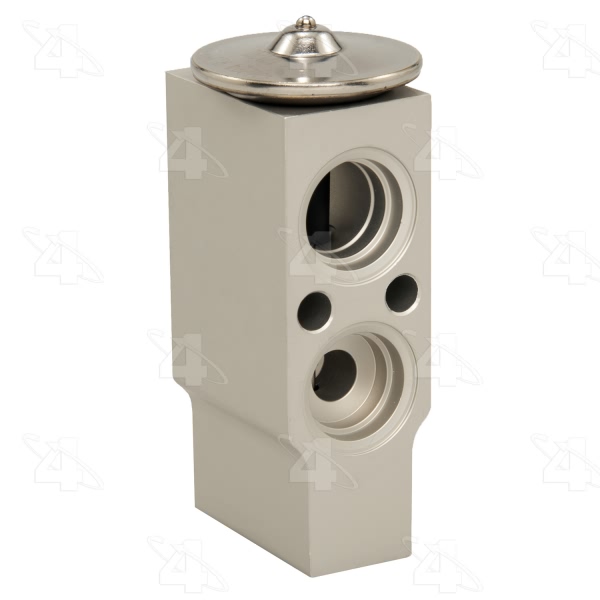

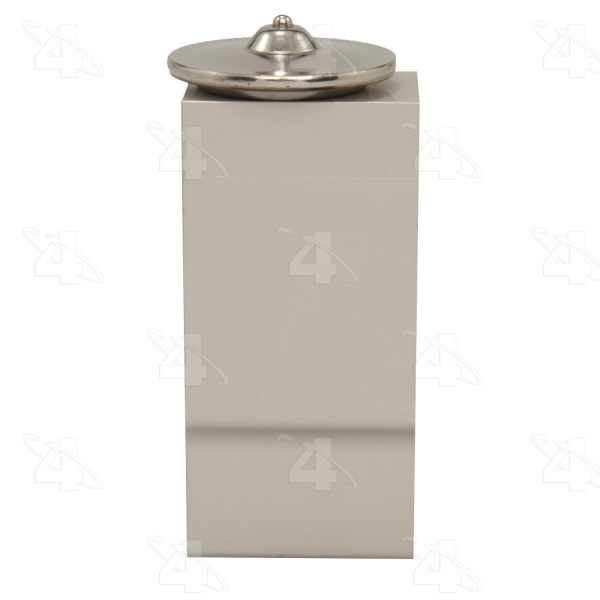

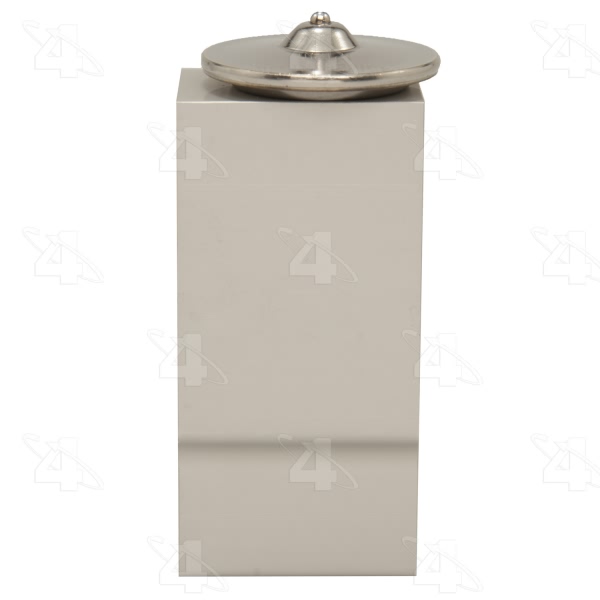

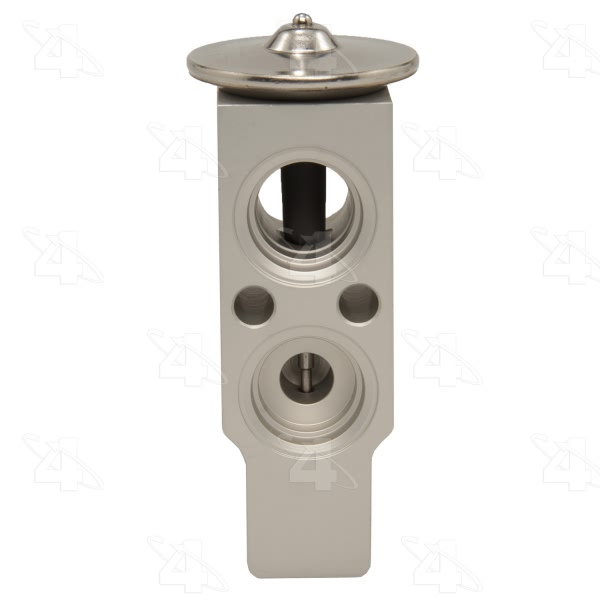

Part Description | A C Expansion Valve |
Color | Aluminum |
Liquid Inlet Fitting Gender | Female |
Liquid Inlet Fitting Thread Diameter | No. 6 |
Liquid Inlet Style | Caputred O-Ring |
Liquid Inlet Type | O-Ring |
Liquid Outlet Fitting Gender | Female |
Liquid Outlet Fitting Thread Diameter | No. 10 |
Liquid Outlet Style | FIO |
Liquid Outlet Type | Insert O-Ring |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Hole Quantity | 2 |
O-Ring A Number/Desc | [24610] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24611] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24681] / Green O-Ring |
O-Ring C Quantity | 1 |
Refrigerant Type | R134A |
Style | w/o Solenoid |
Suction Inlet Fitting Gender | Female |
Suction Inlet Fitting Thread Diameter | No. 10 |
Suction Inlet Style | FIO |
Suction Inlet Type | Insert O-Ring |
Suction Outlet Fitting Gender | Female |
Suction Outlet Fitting Thread Diameter | No. 12 |
Suction Outlet Style | Captured O-Ring |
Suction Outlet Type | O-Ring |
Super Heat | 3.500 |
Switch Included | Not Included |
Tonnage | 1.500 |
UPC | 096361393776 |
Year Make Model | Trim | Engine |
---|---|---|
2001 Suzuki Grand Vitara | All Trims | All Engines |
2002 Suzuki XL-7 | All Trims | All Engines |
