Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 39289 |

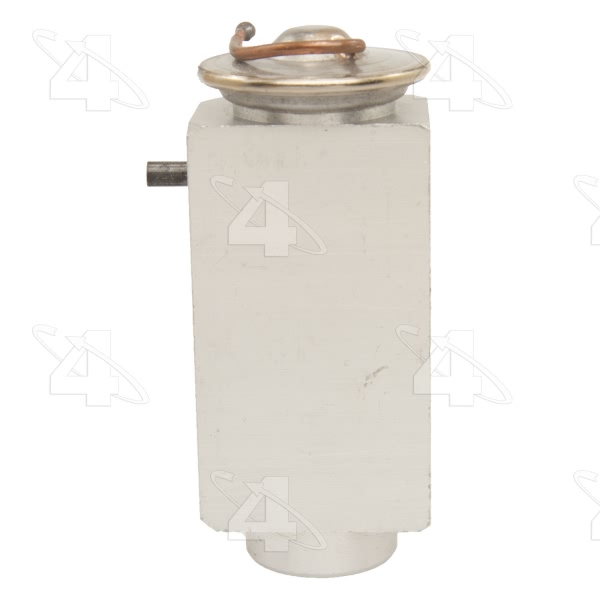

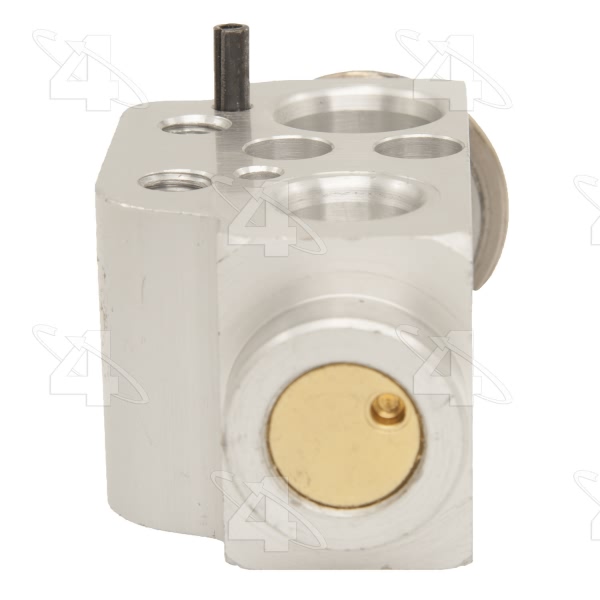

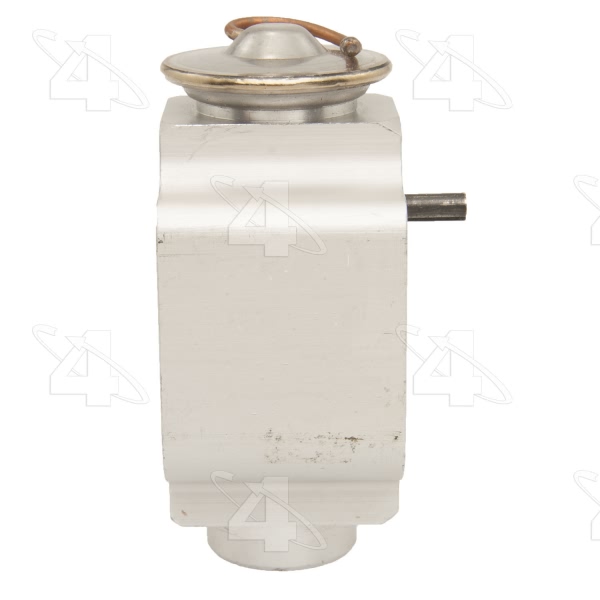

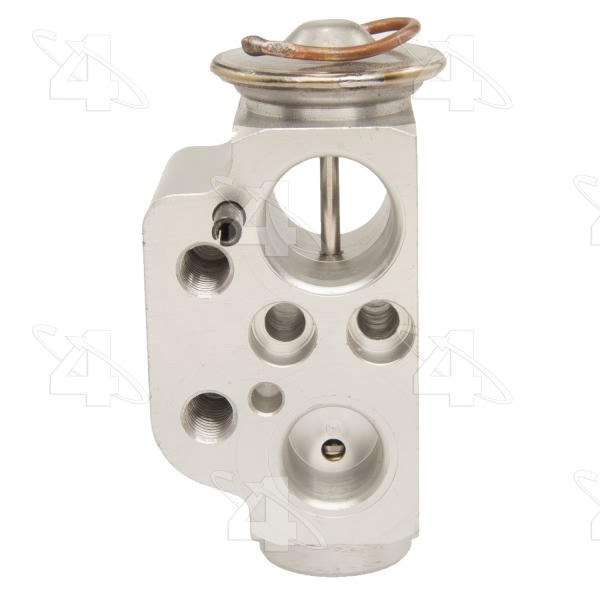

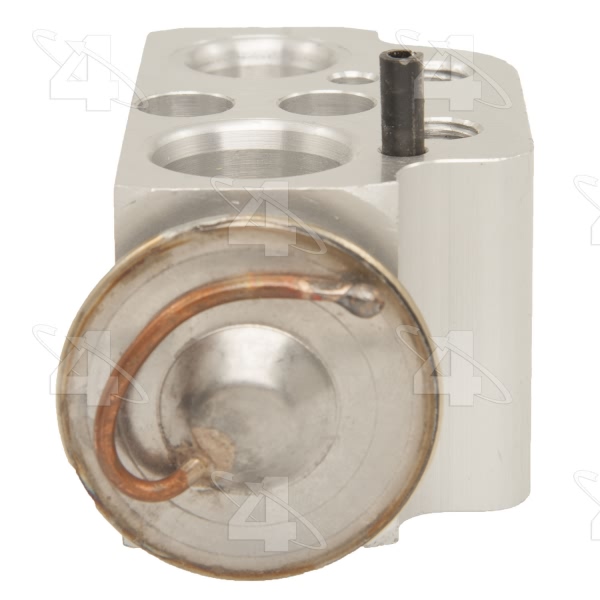

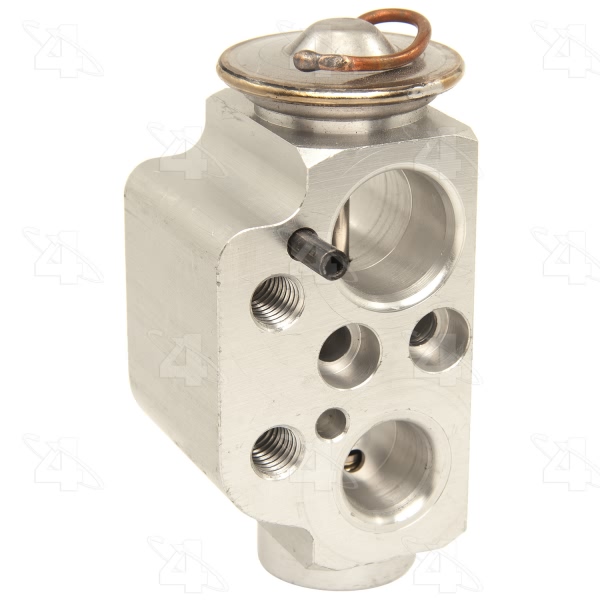

Part Description | A C Expansion Valve |
Color | Aluminum |
Liquid Inlet Fitting Gender | Female |
Liquid Inlet Fitting Thread Diameter | No. 8 |
Liquid Inlet Size IN | 0.540 |
Liquid Inlet Size MM | 13.700 |
Liquid Inlet Style | Captured O-Ring |
Liquid Inlet Type | Insert O-Ring |
Liquid Outlet Fitting Gender | Female |
Liquid Outlet Fitting Thread Diameter | No. 8 |
Liquid Outlet Style | Female Insert O-Ring |
Liquid Outlet Type | Insert O-Ring |
Lqd Out Size IN | 0.540 |
Lqd Out Size MM | 13.700 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Hole Quantity | 2 |
O-Ring A Number/Desc | [24668] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24672] / Green O-Ring |
O-Ring B Quantity | 1 |
Refrigerant Type | R134A |
Style | w/o Solenoid |
Suc In Size IN | 0.770 |
Suc In Size MM | 19.600 |
Suc Out Size IN | 0.700 |
Suc Out Size MM | 18.000 |
Suction Inlet Fitting Gender | Female |
Suction Inlet Fitting Thread Diameter | No. 10 or No. 12 |
Suction Inlet Style | Female Insert O-Ring |
Suction Inlet Type | Insert O-Ring |
Suction Outlet Fitting Gender | Female |
Suction Outlet Fitting Thread Diameter | No. 10 or No. 12 |
Suction Outlet Style | Captured O-Ring |
Suction Outlet Type | Insert O-Ring |
Super Heat | -2.500 |
Switch Included | Not Included |
Tonnage | 2.0 |
UPC | 096361392892 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2015 Audi Q7 | All Trims | All Engines |
2004-2017 Volkswagen Touareg | All Trims | All Engines |
