Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 39271 |

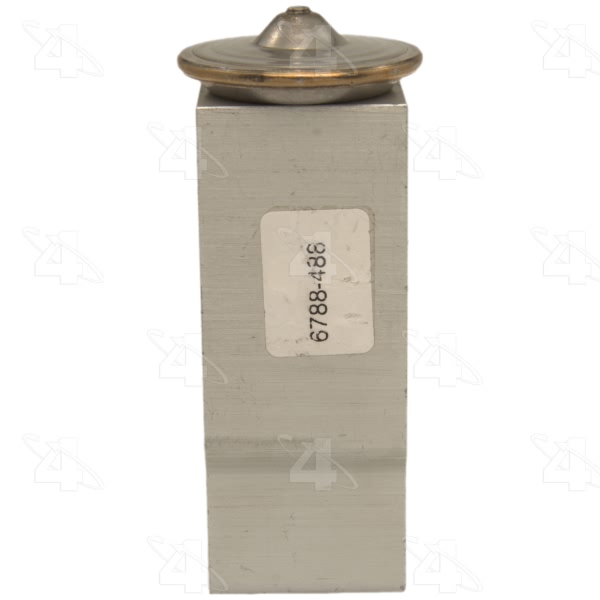

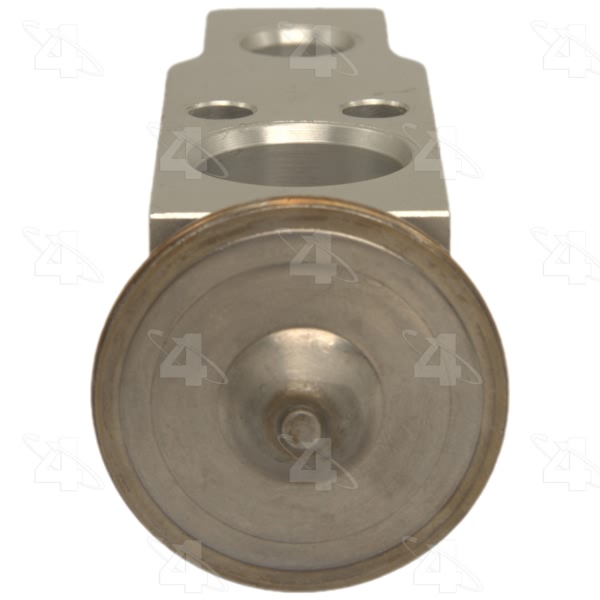

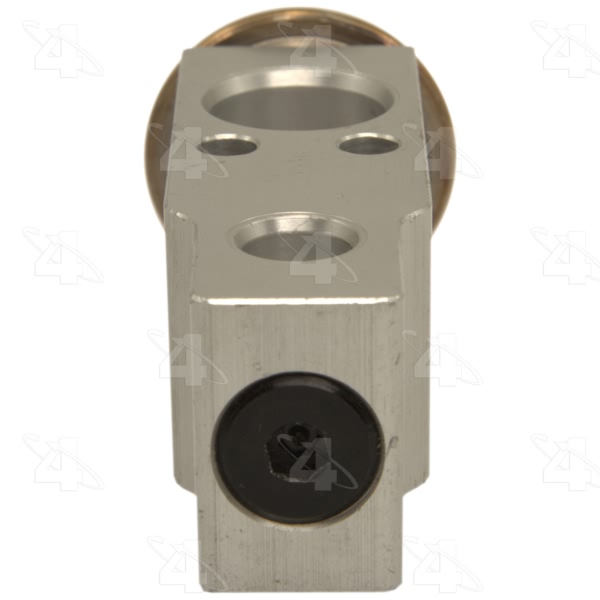

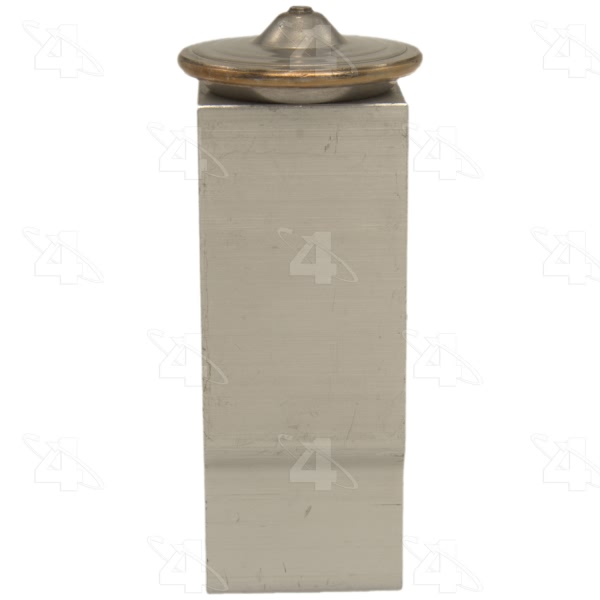

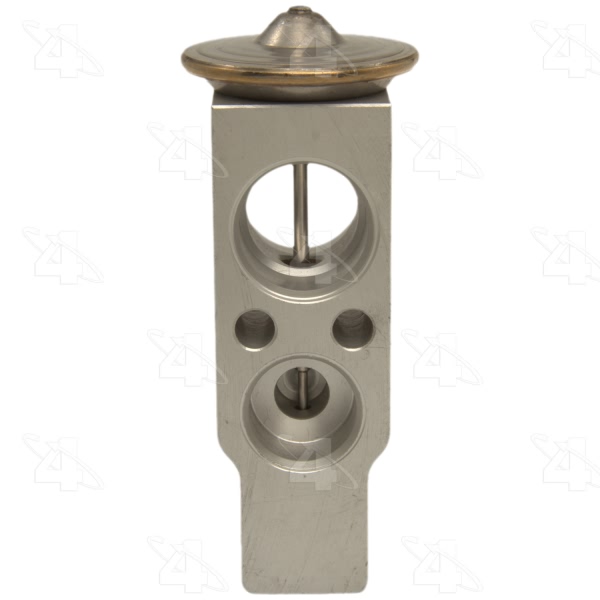

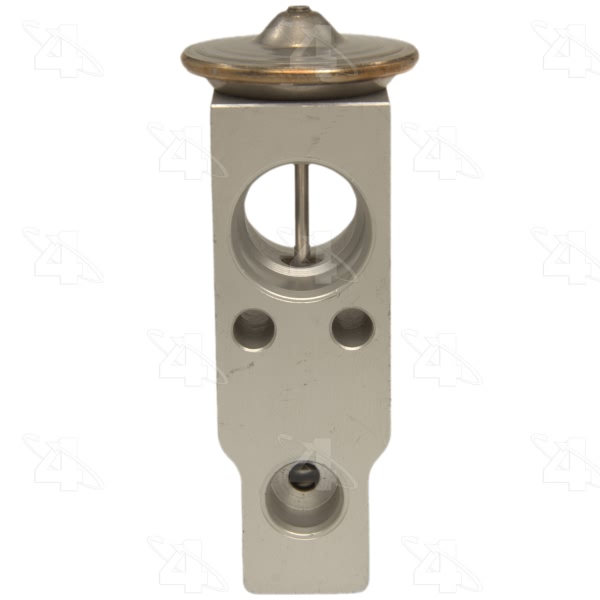

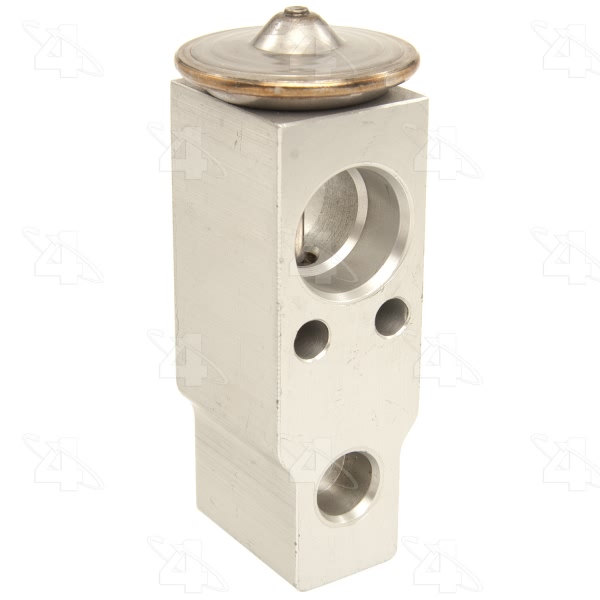

Part Description | A C Expansion Valve |
Color | Aluminum |
Liquid Inlet Fitting Gender | Female |
Liquid Inlet Fitting Thread Diameter | No. 6 |
Liquid Inlet Size IN | 0.390 |
Liquid Inlet Size MM | 10.100 |
Liquid Inlet Style | Captured O-Ring |
Liquid Inlet Type | O-Ring |
Liquid Outlet Fitting Gender | Female |
Liquid Outlet Fitting Thread Diameter | No. 10 or No. 8 |
Liquid Outlet Type | O-Ring |
Lqd Out Size IN | 0.600 |
Lqd Out Size MM | 15.400 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Hole Quantity | 2 |
O-Ring A Number/Desc | [24109] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24626] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24642] / Green O-Ring |
O-Ring C Quantity | 2 |
Refrigerant Type | R134A |
Style | w/o Solenoid |
Suc In Size IN | 0.710 |
Suc In Size MM | 18.200 |
Suc Out Size IN | 0.710 |
Suc Out Size MM | 18.200 |
Suction Inlet Fitting Gender | Female |
Suction Inlet Fitting Thread Diameter | No. 10 or No. 12 |
Suction Inlet Type | O-Ring |
Suction Outlet Fitting Gender | Female |
Suction Outlet Fitting Thread Diameter | No. 10 or No. 12 |
Suction Outlet Type | O-Ring |
Super Heat | -2.000 |
Switch Included | Not Included |
Tonnage | 1.5 |
UPC | 096361392717 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2013 Acura MDX | All Trims | All Engines |
2007-2009 Cadillac SRX | All Trims | All Engines |
2009-2015 Honda Pilot | All Trims | All Engines |
2006-2014 Honda Ridgeline | All Trims | All Engines |
