Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54914 |

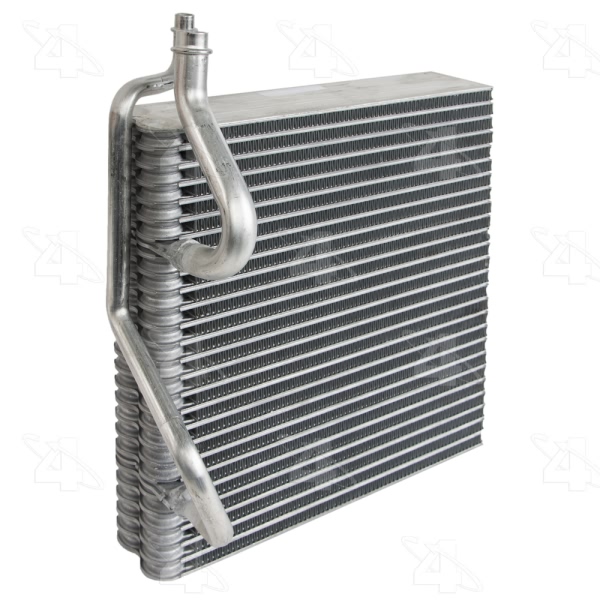

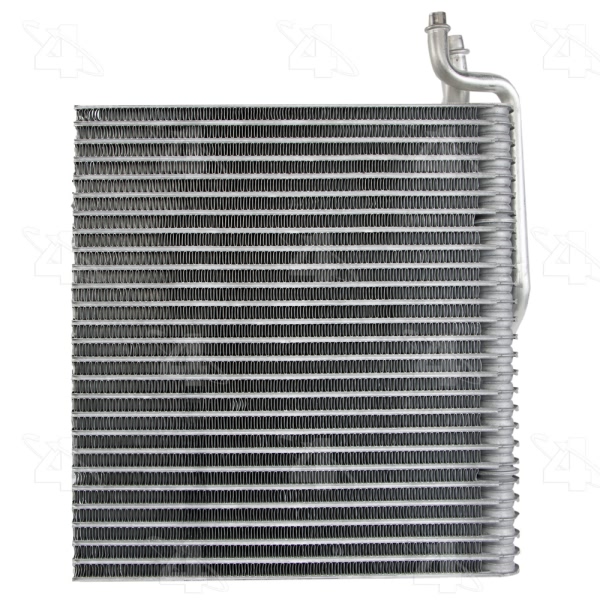

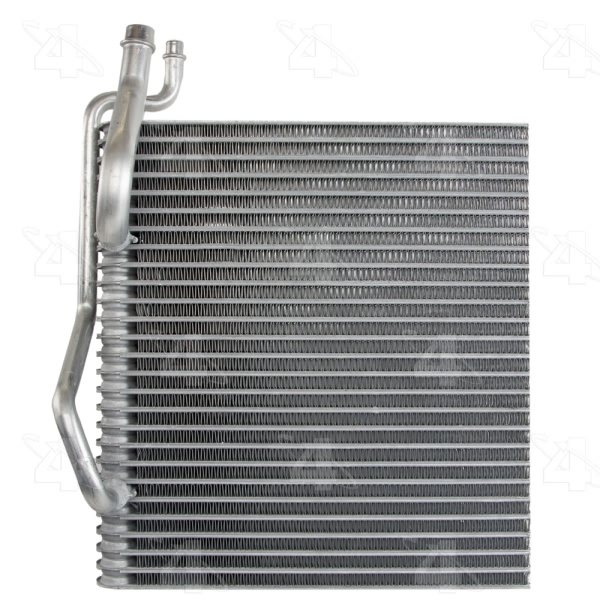

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-1/4 or 2-5/16 |
Core Depth MM | 57.150 or 58.737 |
Core Height Fraction | 11-1/4 or 11-1/8 |
Core Height MM | 282.575 or 285.750 |
Core Width Fraction | 10-1/2 or 10-5/8 |
Core Width MM | 266.700 or 269.875 |
Depth | 2.250 or 2.3125 |
Height | 11.125 or 11.250 |
Inlet Fitting Outside Diameter | No. 8 |
Inlet Fitting Type | Block Fitting |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24612] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Outside Diameter | No. 12 |
UPC | 096361549142 |
Width | 10.500 or 10.625 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Cadillac Escalade | All Trims | All Engines |
2003-2006 Cadillac Escalade ESV | All Trims | All Engines |
2003-2006 Cadillac Escalade EXT | All Trims | All Engines |
2003-2006 Chevrolet Avalanche 1500 | All Trims | All Engines |
2003-2006 Chevrolet Avalanche 2500 | All Trims | All Engines |
2007 Chevrolet Cheyenne | All Trims | All Engines |
2003-2007 Chevrolet Silverado 1500 | All Trims | All Engines |
2007 Chevrolet Silverado 1500 Classic | All Trims | All Engines |
2003 Chevrolet Silverado 1500 HD | All Trims | All Engines |
2005-2006 Chevrolet Silverado 1500 HD | All Trims | All Engines |
