Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54874 |

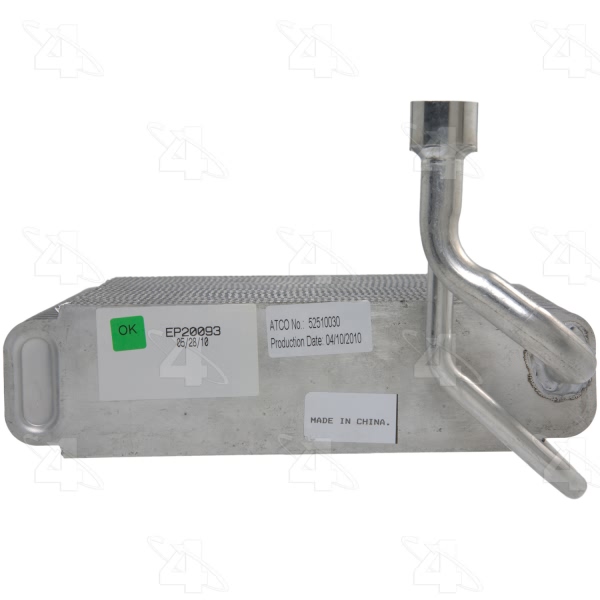

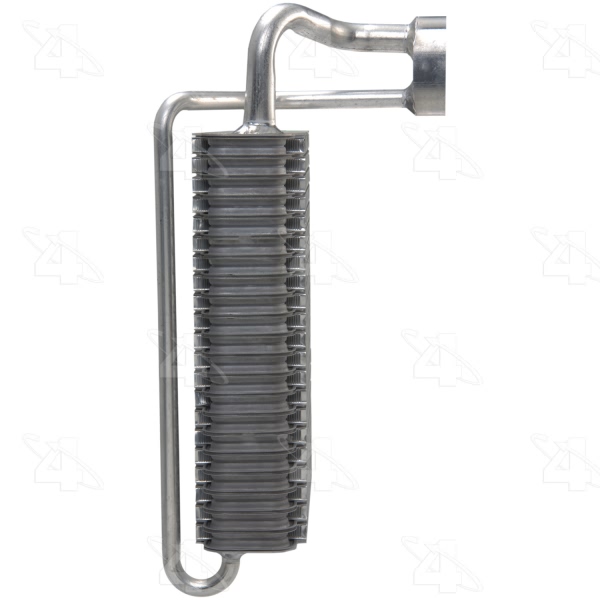

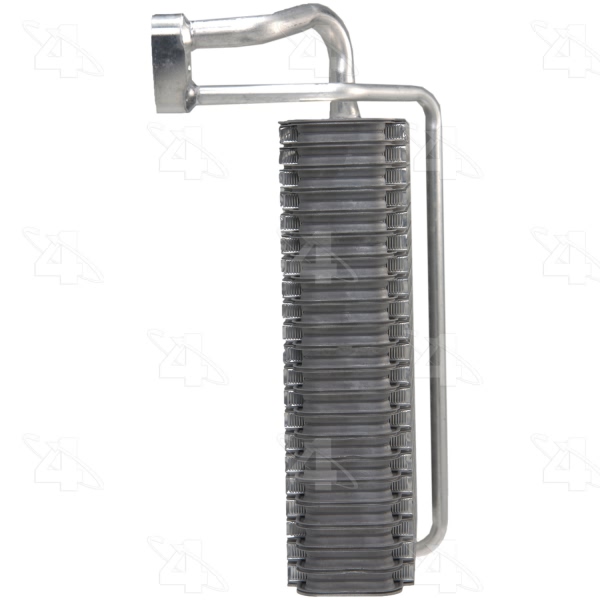

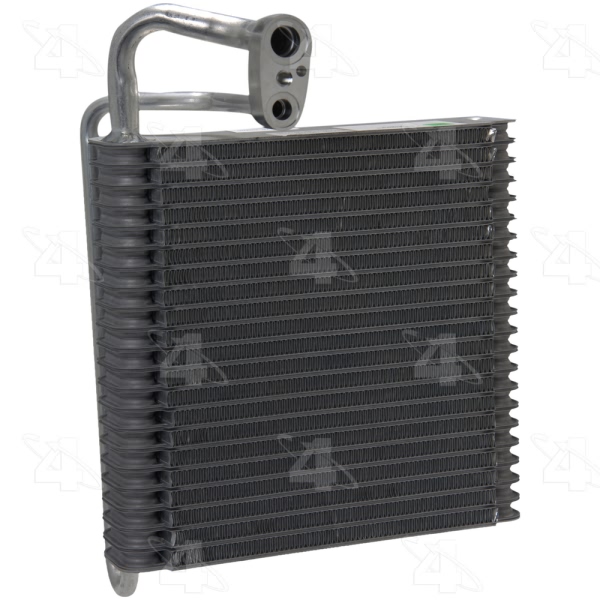

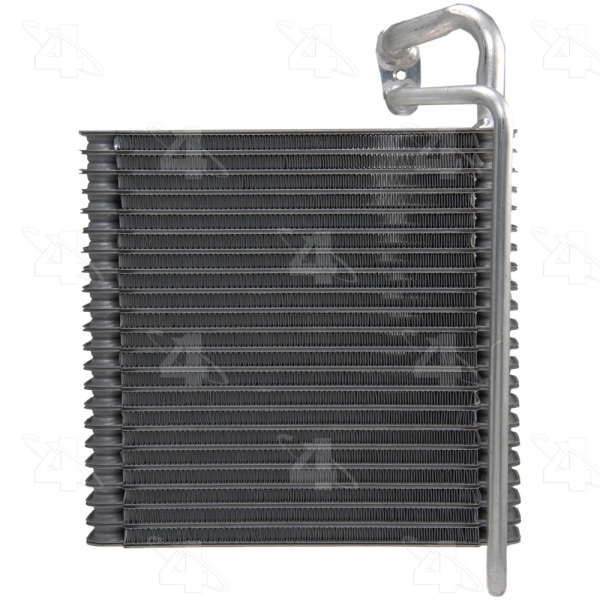

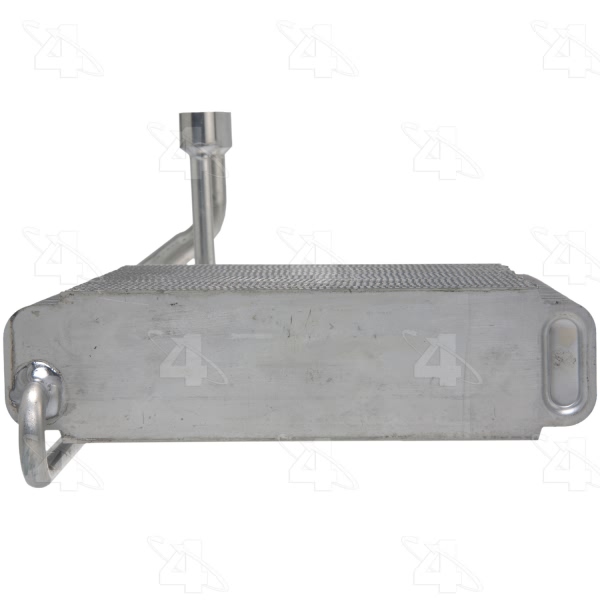

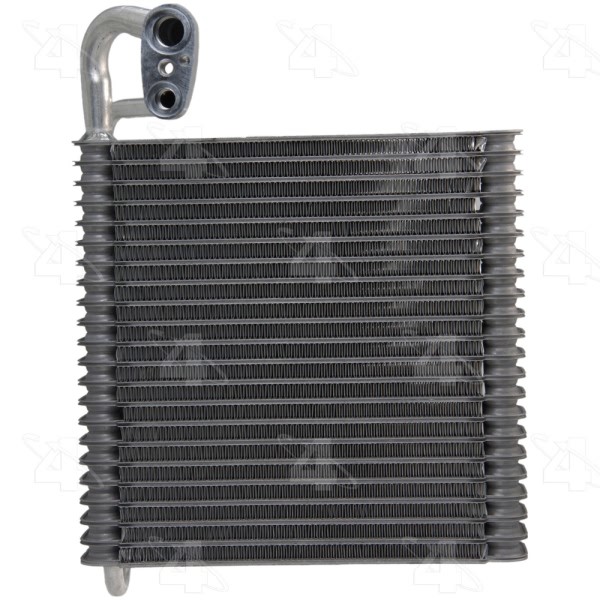

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-7/8 or 3 |
Core Depth MM | 73.025 or 76.200 |
Core Height Fraction | 10-1/2 or 10-3/4 |
Core Height MM | 266.700 or 273.050 |
Core Width Fraction | 11 or 11-1/8 |
Core Width MM | 279.400 |
Depth | 2.875 or 3.000 |
Height | 10.500 or 10.750 |

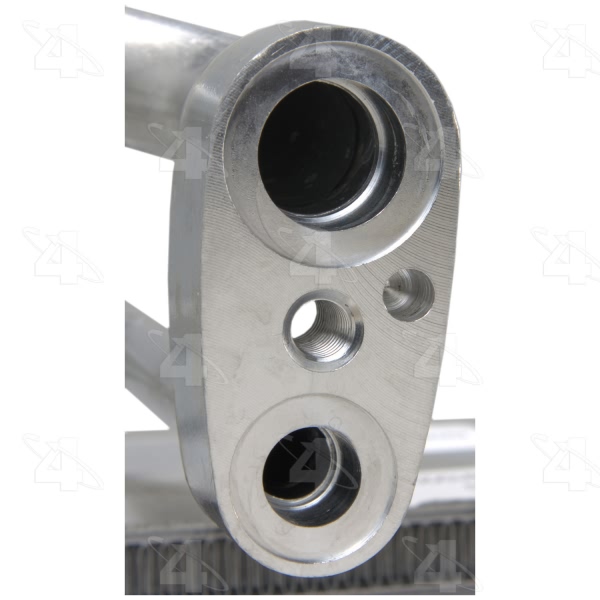

Inlet Fitting Type | Block Fitting |
Material | Aluminum |
O-Ring A Number/Desc | [24402] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24404] / Slimline Washer |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Block Fitting |
UPC | 096361548749 |
Width | 11.000 or 11.125 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2005 Buick LeSabre | All Trims | 6 Cyl 3.8L |
1995-1999 Buick Riviera | All Trims | All Engines |
2000-2005 Cadillac DeVille | All Trims | All Engines |
2000-2004 Cadillac Seville | All Trims | All Engines |
1995-1999 Oldsmobile Aurora | All Trims | All Engines |
2001-2003 Oldsmobile Aurora | All Trims | All Engines |
2000-2005 Pontiac Bonneville | All Trims | All Engines |
