Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54871 |

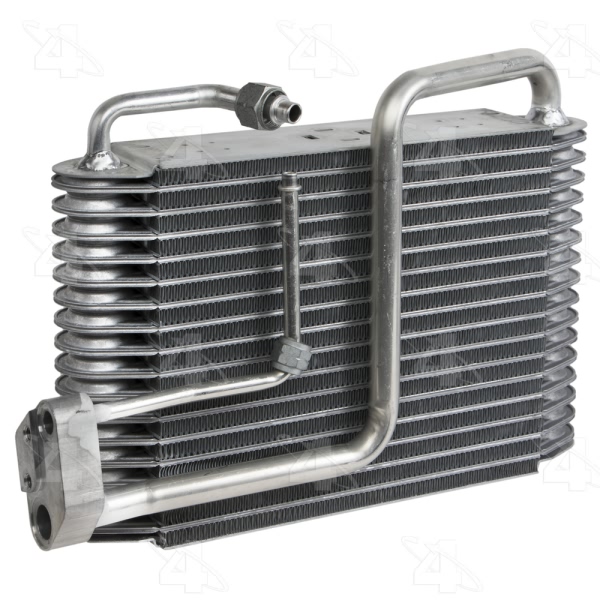

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-7/8 |
Core Depth MM | 73.025 |
Core Height Fraction | 8-1/2 or 8-1/4 or 8-3/8 |
Core Height MM | 209.550 or 212.725 or 215.900 |
Core Width Fraction | 13-1/2 or 13-3/8 |
Core Width MM | 339.725 or 342.900 |
Depth | 2.875 |
Height | 8.250 or 8.375 or 8.500 |
Inlet Fitting Outside Diameter | No. 6 / No. 8 |

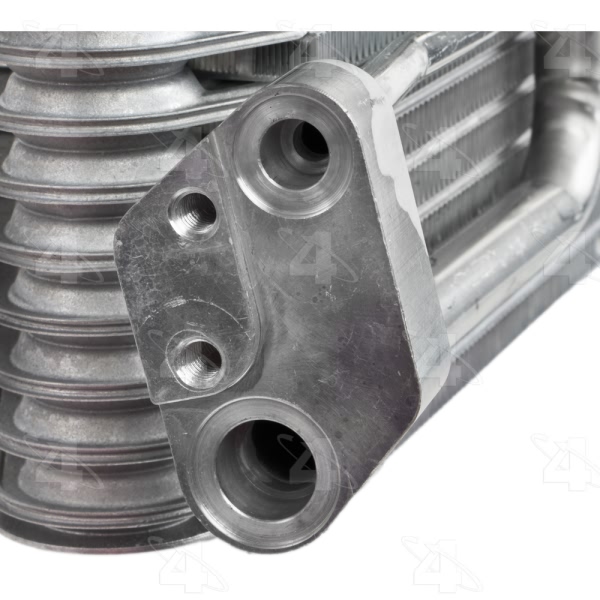

Inlet Fitting Type | Block Fitting |
Material | Aluminum |
O-Ring A Number/Desc | [24402] / Slimline Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24404] / Slimline Washer |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24606] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24608] / Green O-Ring |
O-Ring D Quantity | 1 |
Outlet Fitting Type | Block Fitting |
UPC | 096361548718 |
Width | 13.375 or 13.500 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Cadillac Escalade ESV | All Trims | All Engines |
2000-2006 Chevrolet Suburban 1500 | All Trims | All Engines |
2000-2006 Chevrolet Suburban 2500 | All Trims | All Engines |
2000-2006 GMC Yukon XL 1500 | All Trims | All Engines |
2000-2006 GMC Yukon XL 2500 | All Trims | All Engines |
