Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54867 |

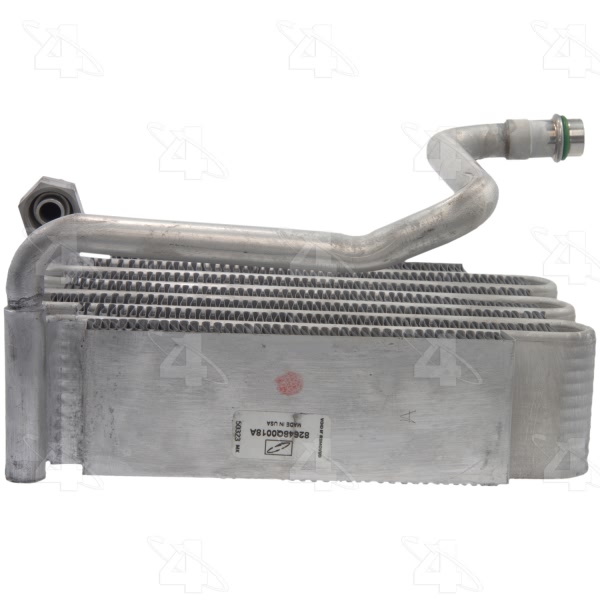

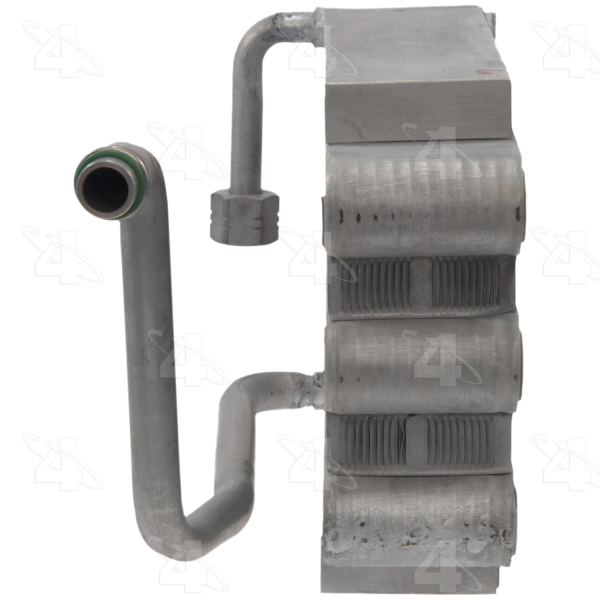

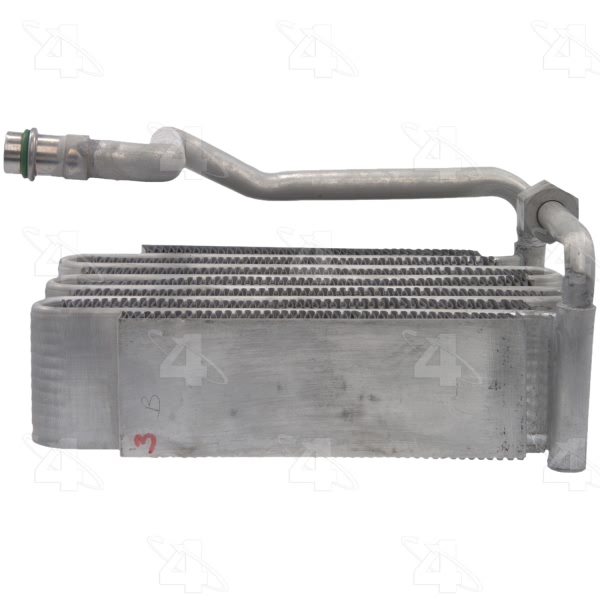

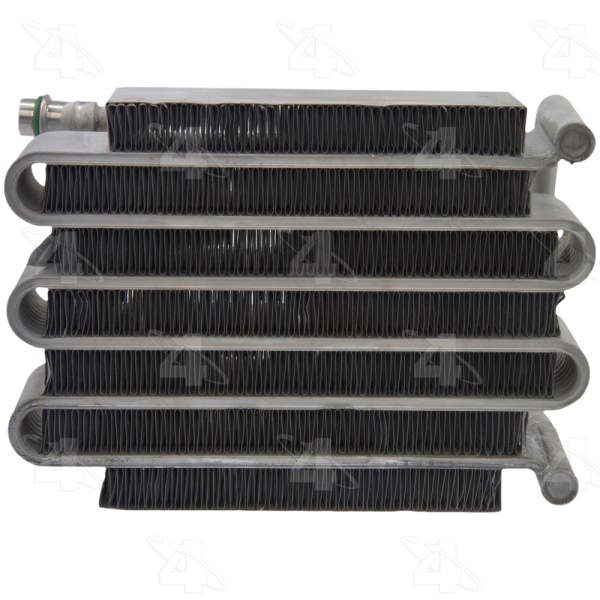

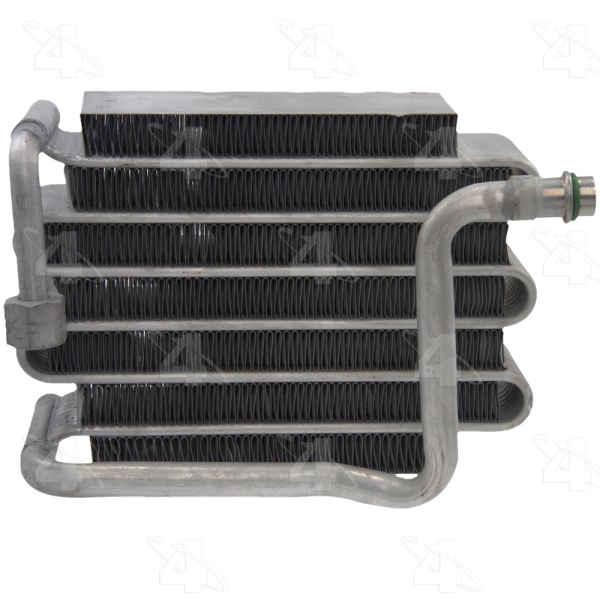

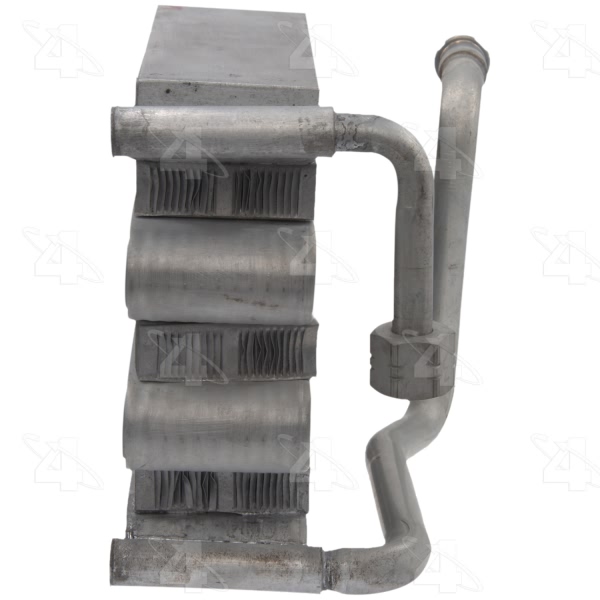

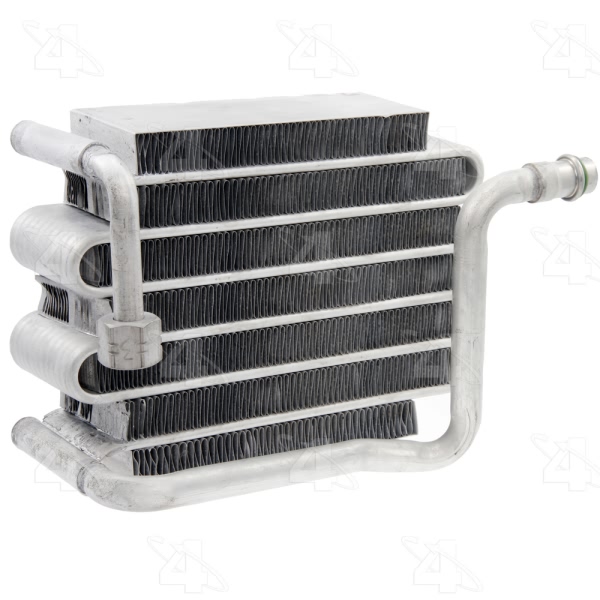

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-3/8 or 2-5/16 |
Core Depth MM | 58.737 or 60.325 |
Core Height Fraction | 6-5/8 or 6-9/16 |
Core Height MM | 166.6875 or 168.275 |
Core Width Fraction | 9-1/4 |
Core Width MM | 234.950 |
Depth | 2.3125 or 2.375 |
Height | 6.5625 or 6.625 |
Inlet Fitting Outside Diameter | No. 8 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24642] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Outside Diameter | No. 12 |
UPC | 096361548671 |
Width | 9.250 |
Year Make Model | Trim | Engine |
---|---|---|
2004 Buick Rainier | All Trims | All Engines |
2002-2004 Chevrolet Trailblazer | All Trims | All Engines |
2002-2004 Chevrolet Trailblazer EXT | All Trims | All Engines |
2002-2004 GMC Envoy | All Trims | All Engines |
2002-2004 GMC Envoy XL | All Trims | All Engines |
2004 GMC Envoy XUV | All Trims | All Engines |
2003-2004 Isuzu Ascender | All Trims | All Engines |
2002 Oldsmobile Bravada | All Trims | All Engines |
