Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54807 |

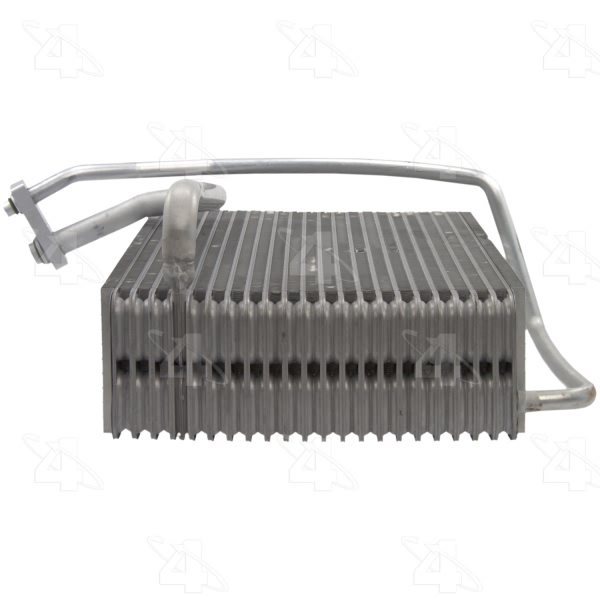

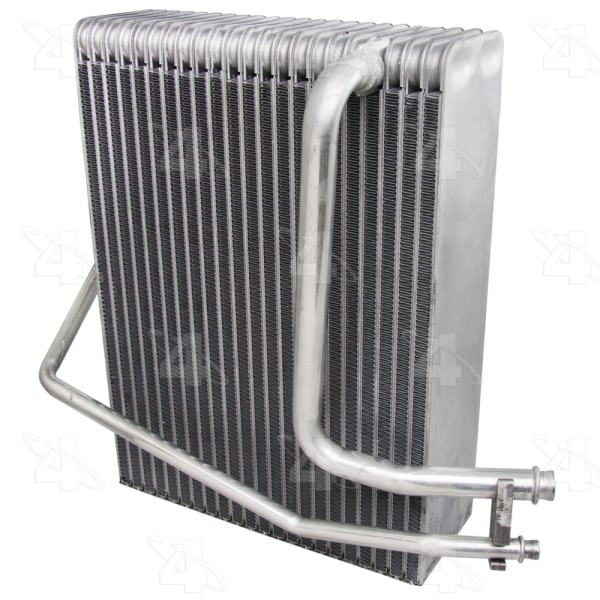

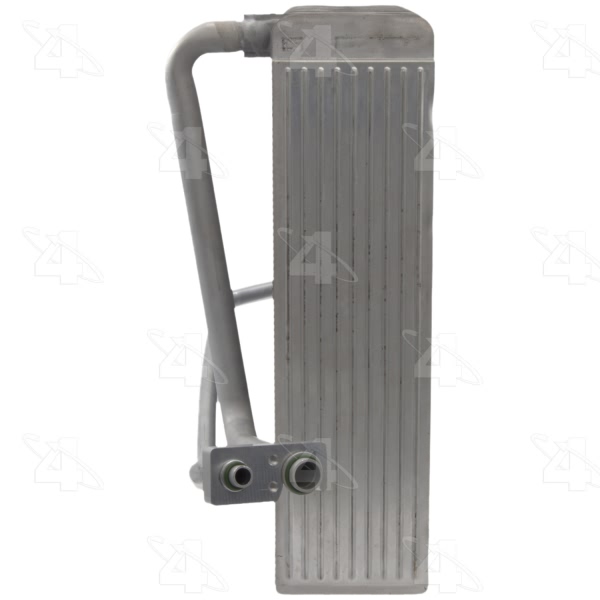

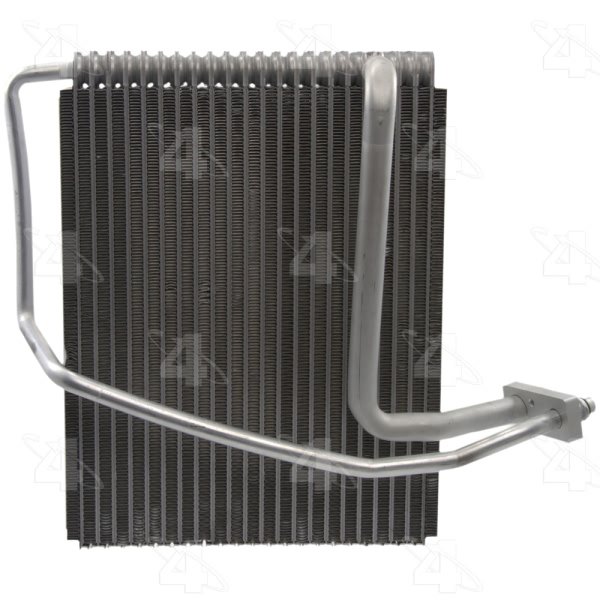

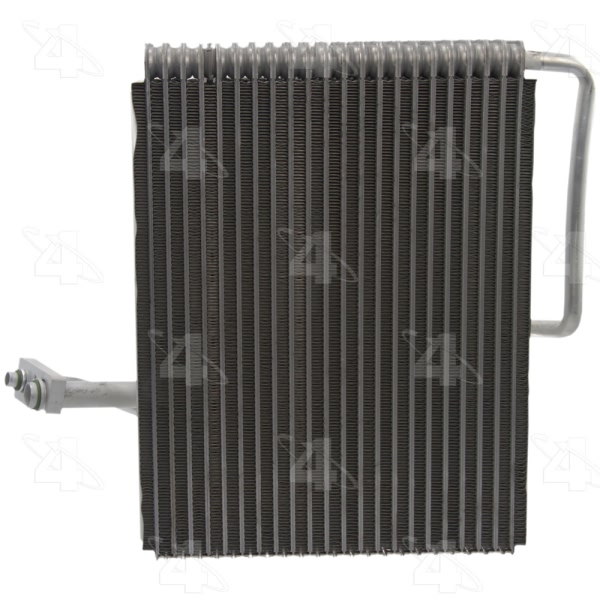

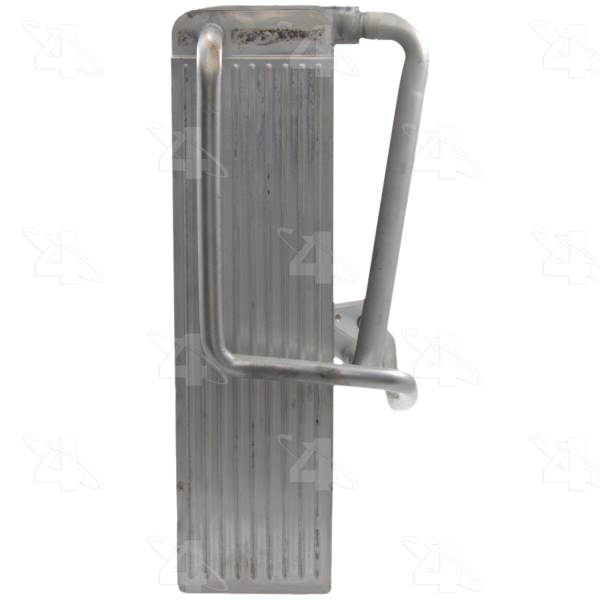

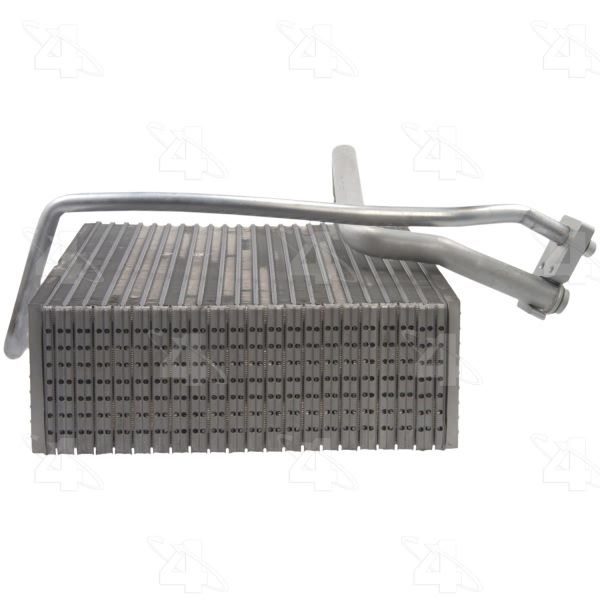

Part Description | A C Evaporator Core |
Core Depth Fraction | 3-1/2 or 3-5/8 |
Core Depth MM | 88.900 or 92.075 |
Core Height Fraction | 9 or 9-7/8 |
Core Height MM | 228.600 or 250.825 |
Core Width Fraction | 13-1/8 or 13-5/8 |
Core Width MM | 333.375 or 346.075 |
Depth | 3.500 or 3.625 |
Height | 9.000 or 9.875 |
Inlet Fitting Outside Diameter | No. 8 |

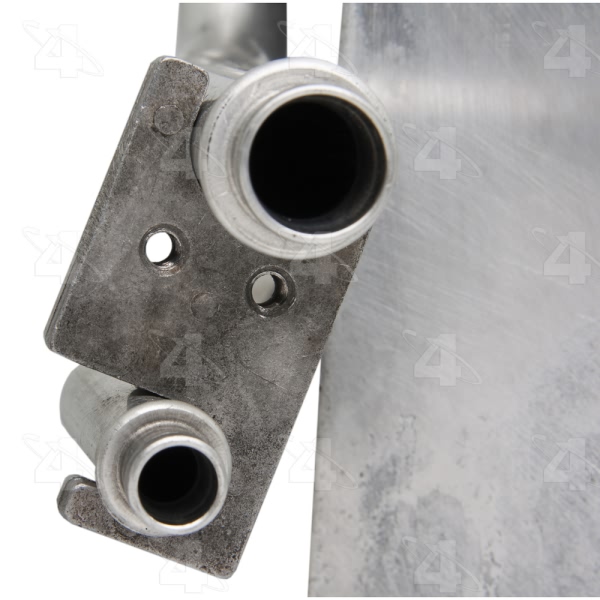

Inlet Fitting Type | Block Fitting |
Material | Aluminum |
O-Ring A Number/Desc | [24622] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24649] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Outside Diameter | No. 12 |
UPC | 096361548077 |
Width | 13.125 or 13.625 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Chrysler Grand Voyager | All Trims | All Engines |
2004-2008 Chrysler Pacifica | All Trims | All Engines |
2001-2007 Chrysler Town & Country | All Trims | All Engines |
2001-2003 Chrysler Voyager | All Trims | All Engines |
2001-2007 Dodge Caravan | All Trims | All Engines |
2001-2007 Dodge Grand Caravan | All Trims | All Engines |
