Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54628 |

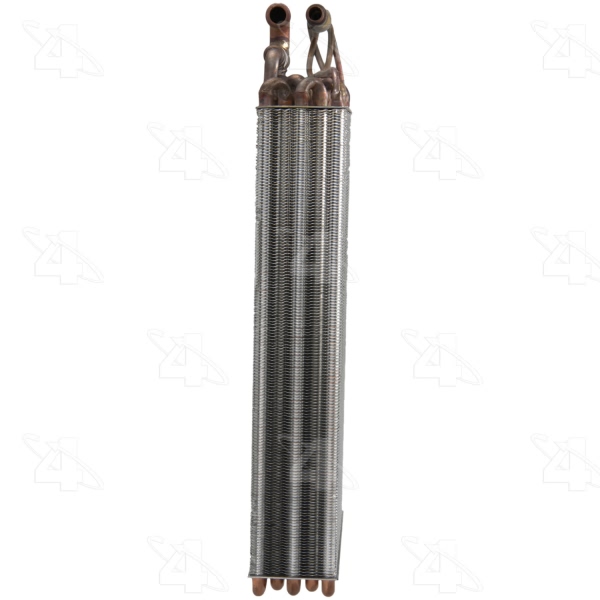

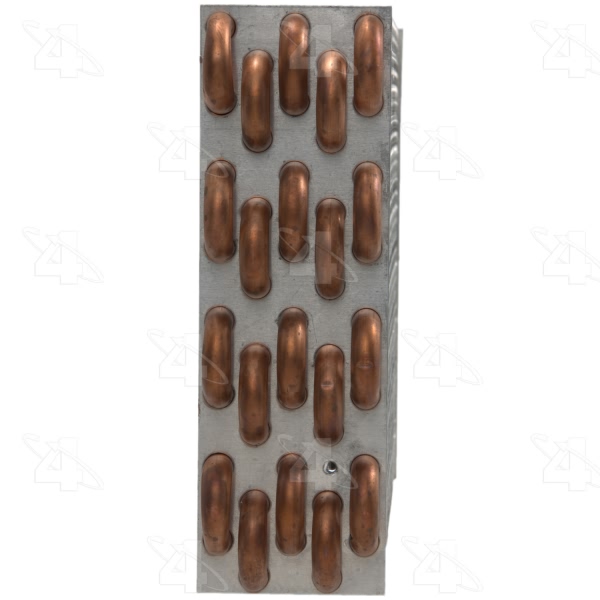

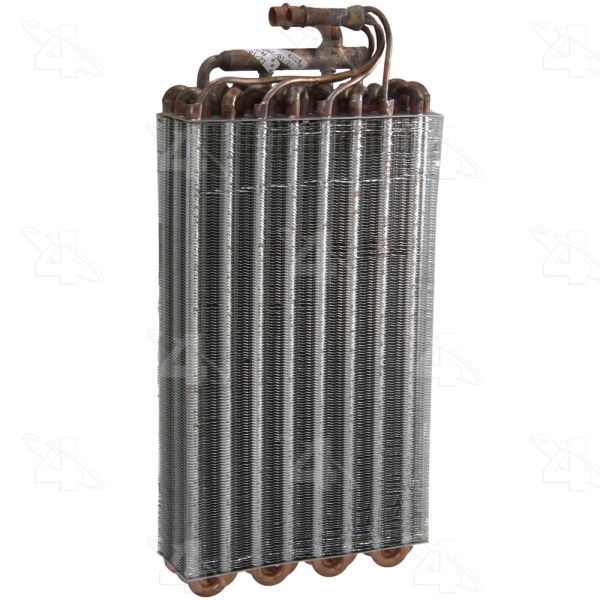

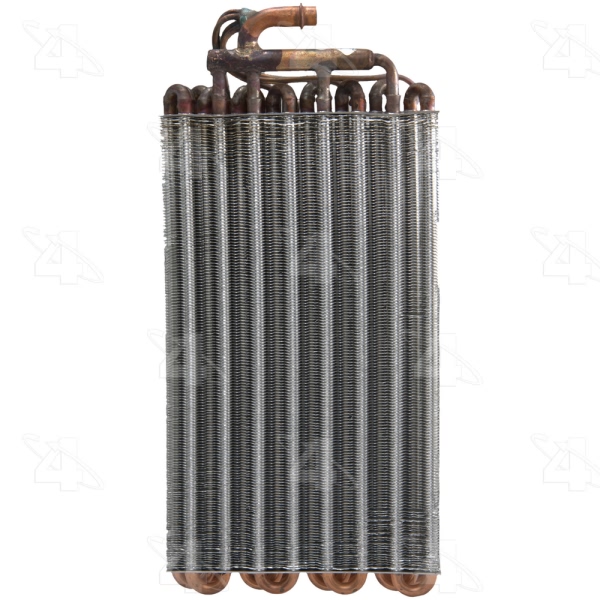

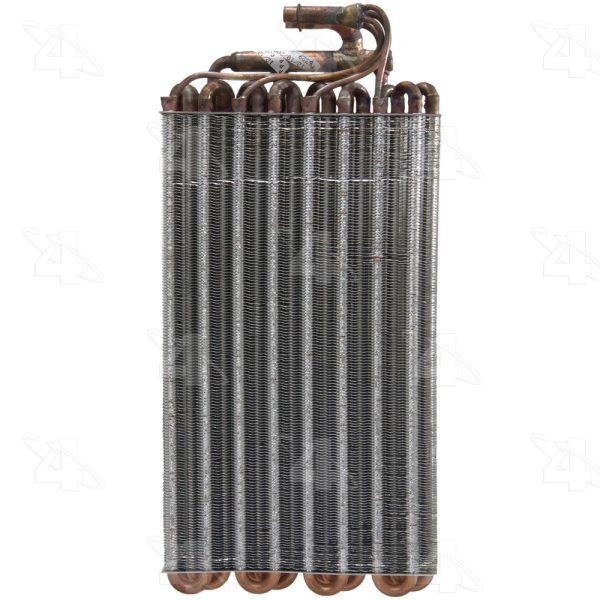

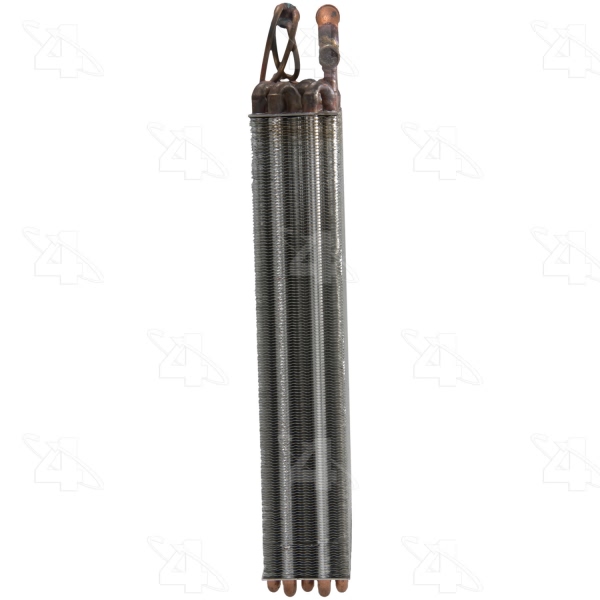

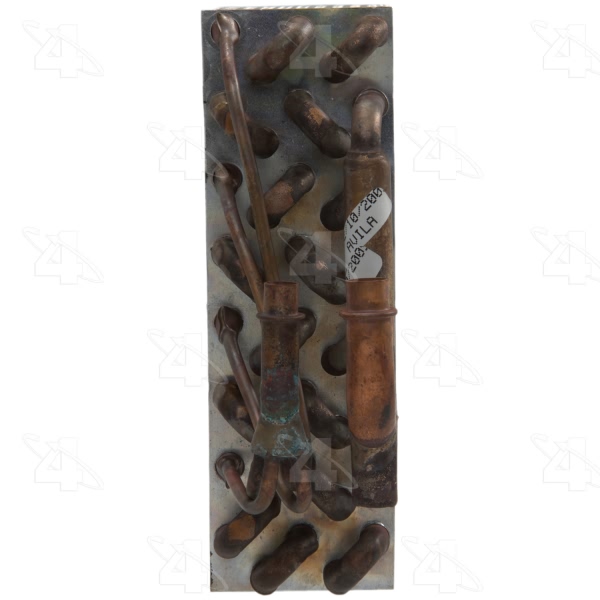

Part Description | A C Evaporator Core |
Core Depth Fraction | 2-1/8 |
Core Depth MM | 53.975 |
Core Height Fraction | 8 |
Core Height MM | 203.200 |
Core Width Fraction | 13-1/2 |
Core Width MM | 342.900 |
Depth | 2.125 |
Height | 8.000 |
Inlet Fitting Outside Diameter | No. 8 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Outside Diameter | No. 10 |
UPC | 096361546288 |
Width | 13.500 |
Year Make Model | Trim | Engine |
---|---|---|
1989-1995 BMW 525i | All Trims | All Engines |
1993 BMW 525iT | All Trims | All Engines |
1994-1995 BMW 530i | All Trims | All Engines |
1989-1993 BMW 535i | All Trims | All Engines |
1994-1995 BMW 540i | All Trims | All Engines |
1987-1992 BMW 735i | All Trims | All Engines |
1988-1992 BMW 735iL | All Trims | All Engines |
1993-1994 BMW 740i | All Trims | All Engines |
1993-1994 BMW 740iL | All Trims | All Engines |
1988-1994 BMW 750iL | All Trims | All Engines |
