Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54626 |

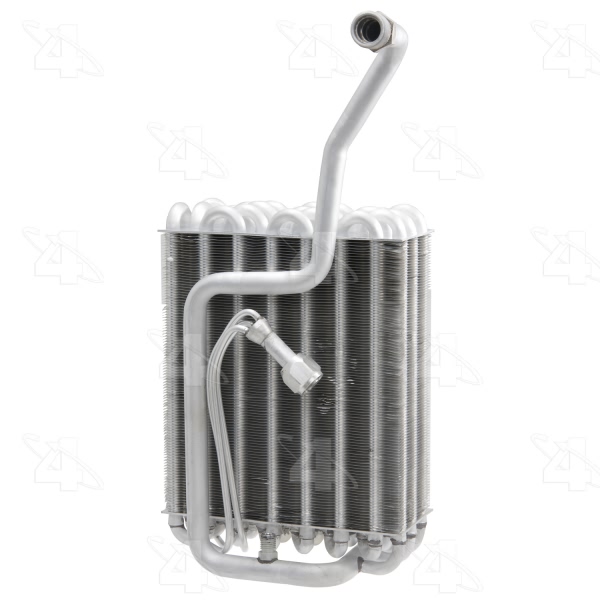

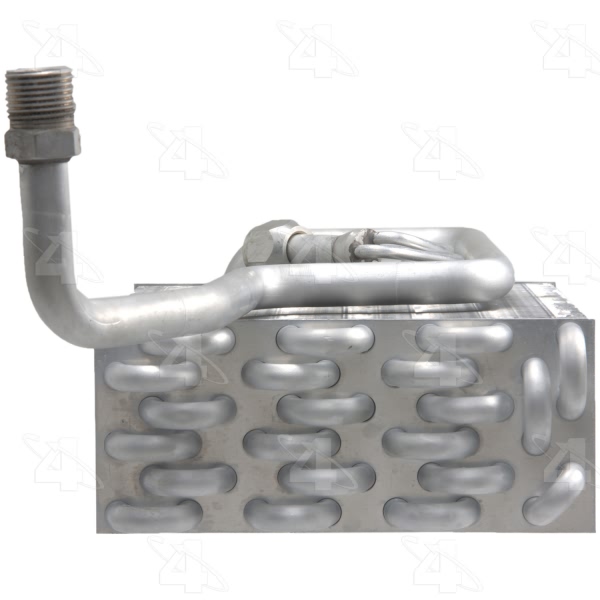

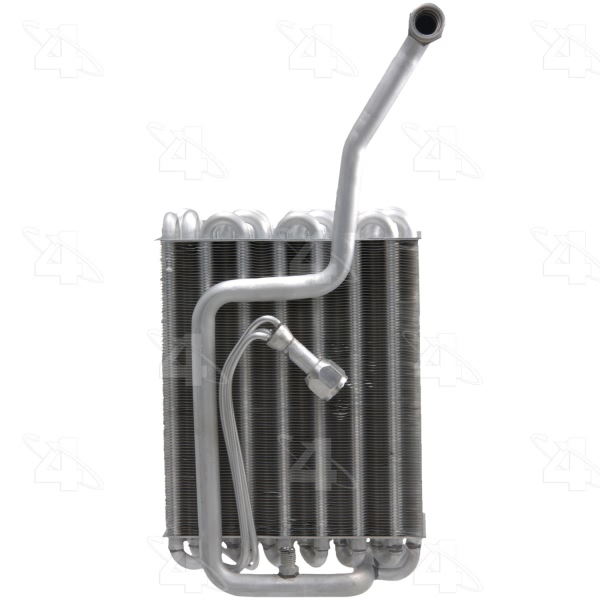

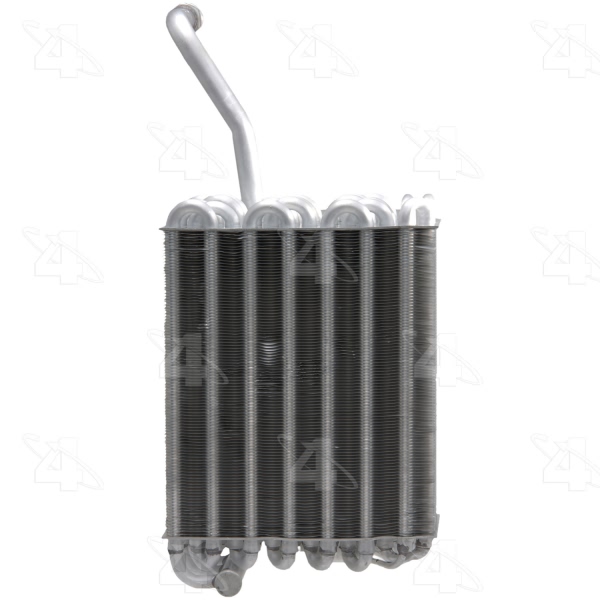

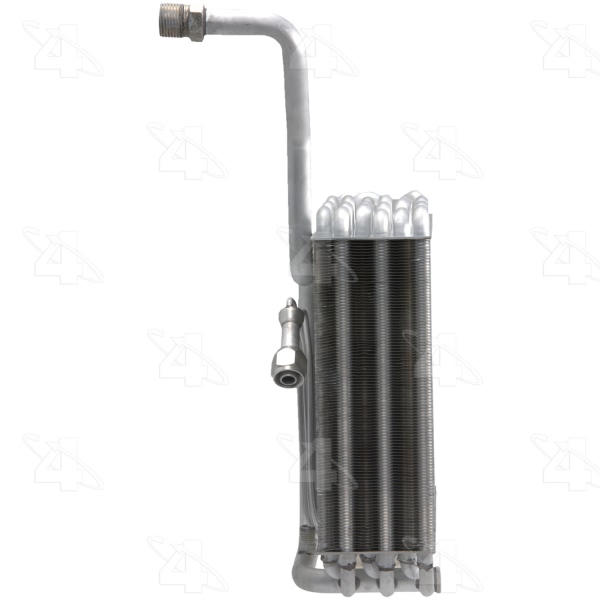

Part Description | A C Evaporator Core |
Core Depth Fraction | 3 |
Core Depth MM | 76.200 |
Core Height Fraction | 7 or 9-5/8 |
Core Height MM | 177.800 or 244.475 |
Core Width Fraction | 6-7/8 or 8 |
Core Width MM | 174.625 or 203.200 |
Depth | 3.000 |
Height | 7.000 or 9.625 |
Inlet Fitting Outside Diameter | No. 8 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Outside Diameter | No. 10 |
UPC | 096361546264 |
Width | 6.875 or 8.000 |
Year Make Model | Trim | Engine |
---|---|---|
1985-1986 BMW 524td | All Trims | All Engines |
1982-1988 BMW 528e | All Trims | All Engines |
1983-1984 BMW 533i | All Trims | All Engines |
1985-1988 BMW 535i | All Trims | All Engines |
1988 BMW 535is | All Trims | All Engines |
1985-1989 BMW 635CSi | All Trims | All Engines |
1987 BMW L6 | All Trims | All Engines |
1986-1987 BMW L7 | All Trims | All Engines |
1988 BMW M5 | All Trims | All Engines |
