Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54601 |

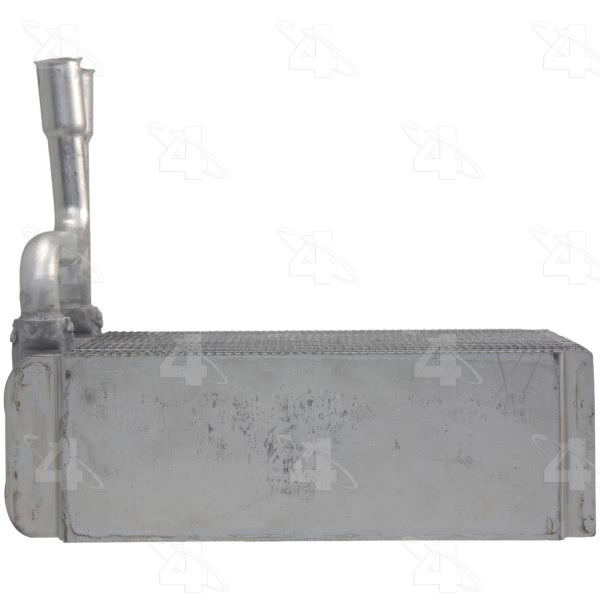

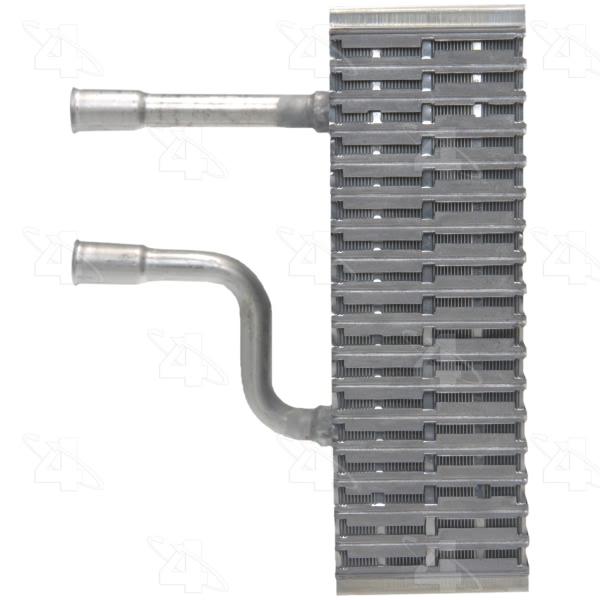

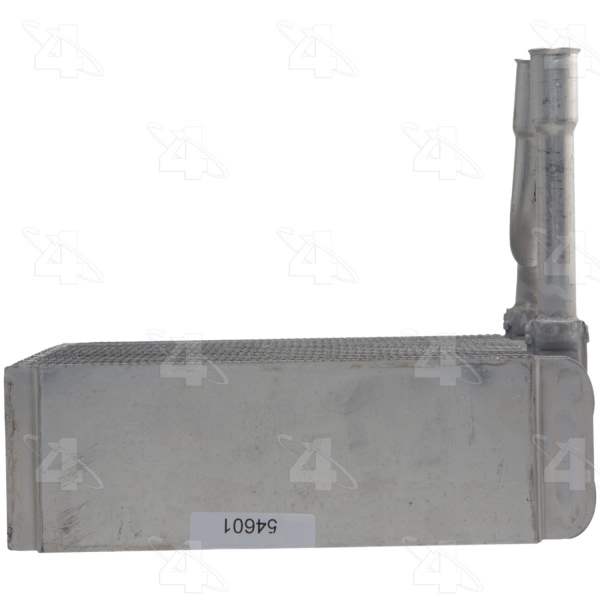

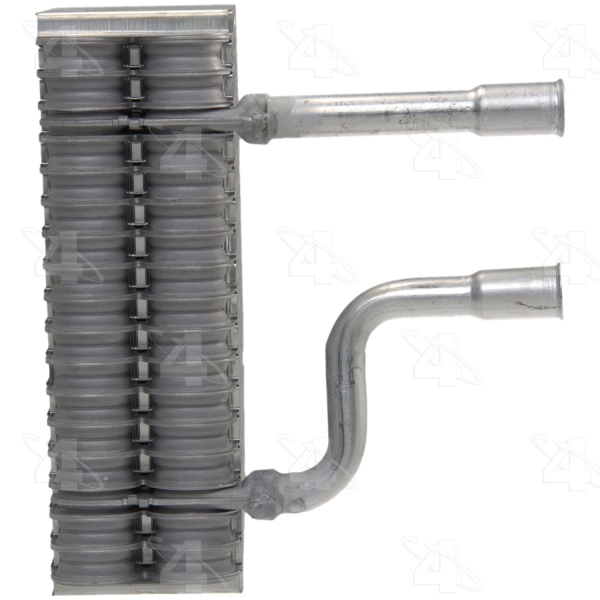

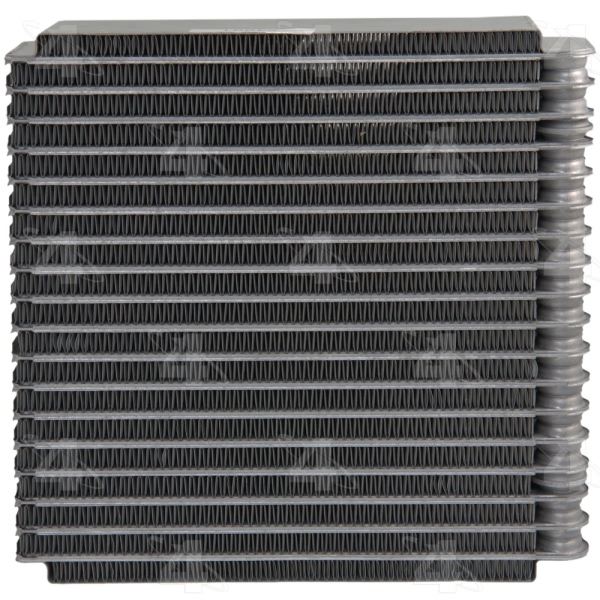

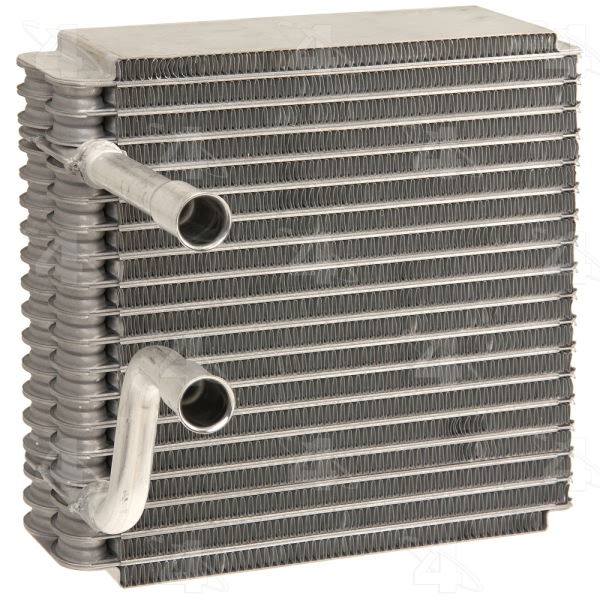

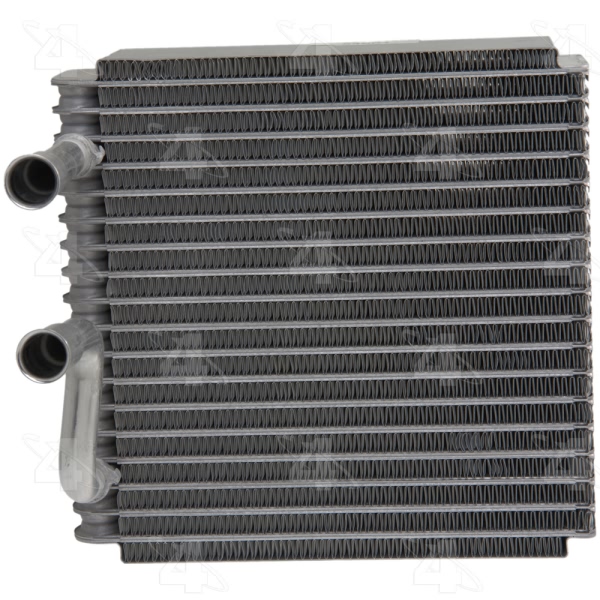

Part Description | A C Evaporator Core |
Core Depth Fraction | 13-1/8 or 2-7/8 |
Core Depth MM | 333.375 or 73.025 |
Core Height Fraction | 8-1/2 or 8-3/8 or 8-7/8 |
Core Height MM | 212.725 or 215.900 or 225.425 |
Core Width Fraction | 9-1/4 |
Core Width MM | 234.950 |
Depth | 13.125 or 2.875 |
Height | 8.375 or 8.500 or 8.875 |

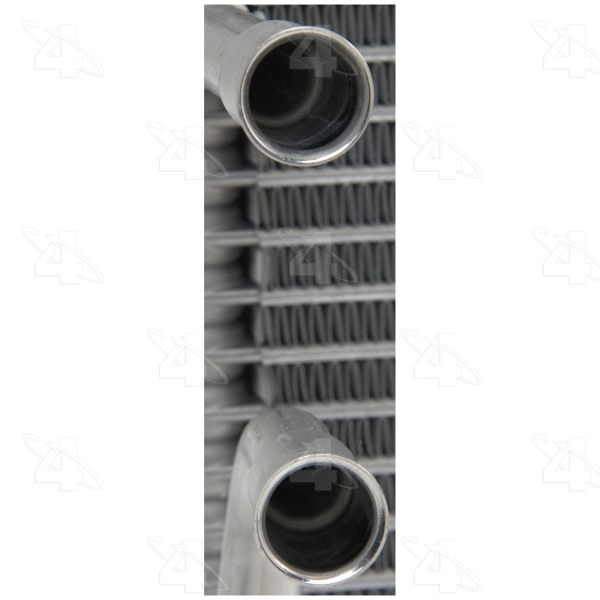

Inlet Fitting Outside Diameter | No. 10 |
Material | Aluminum |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 4 |
Outlet Fitting Outside Diameter | No. 10 |
UPC | 096361546011 |
Width | 9.250 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2007 Ford Focus | All Trims | All Engines |
2010-2012 Ford Transit Connect | All Trims | All Engines |
