Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 54586 |

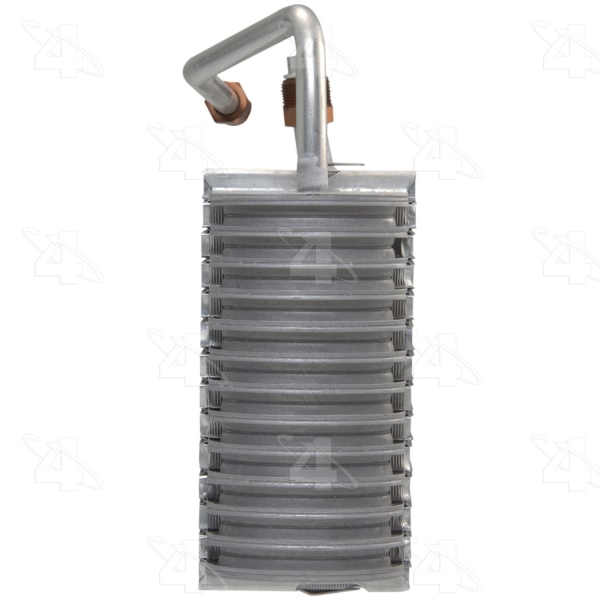

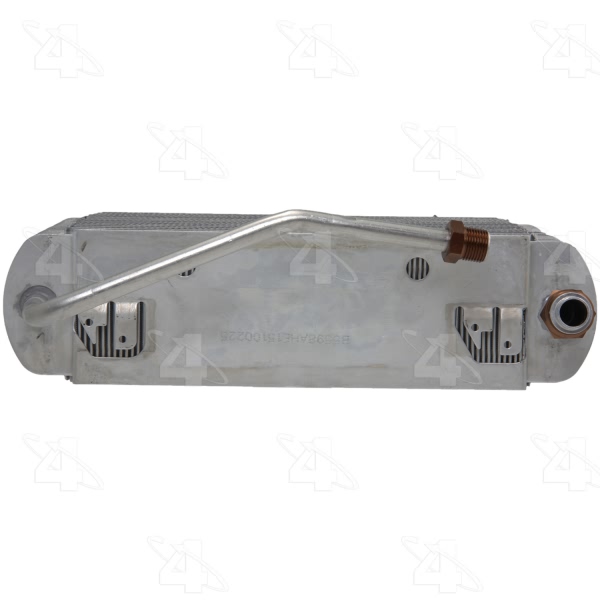

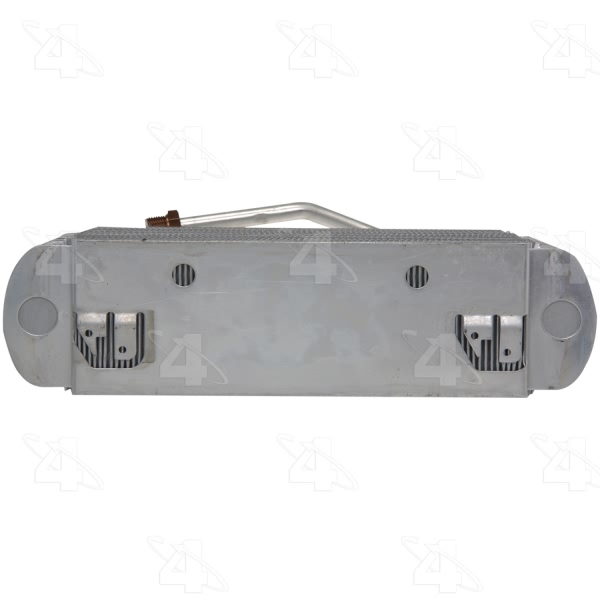

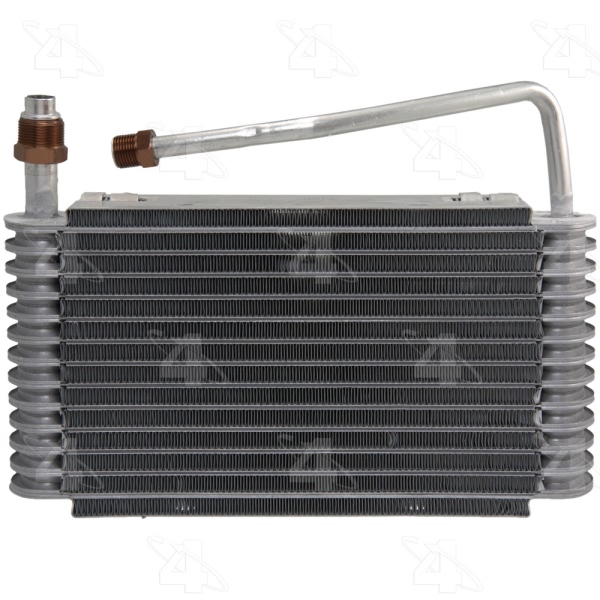

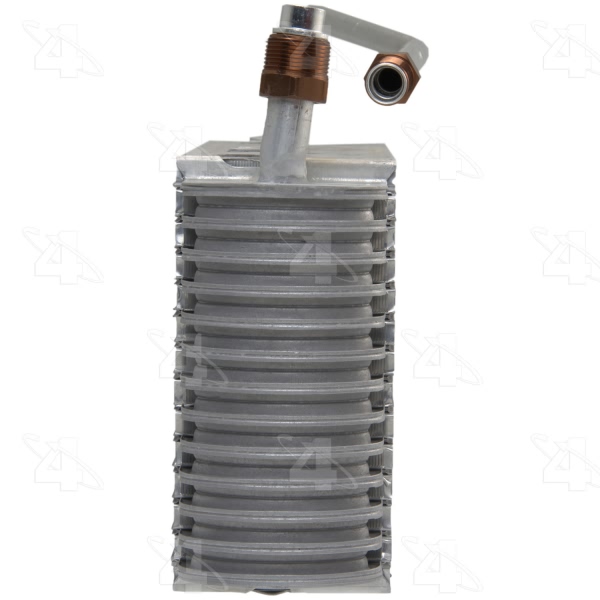

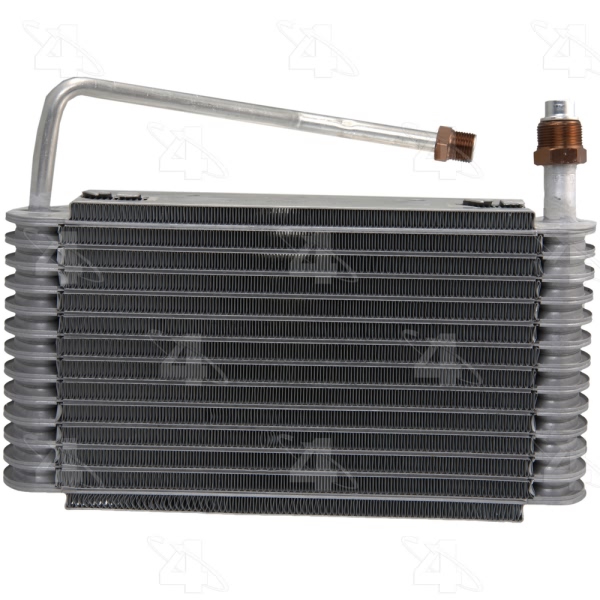

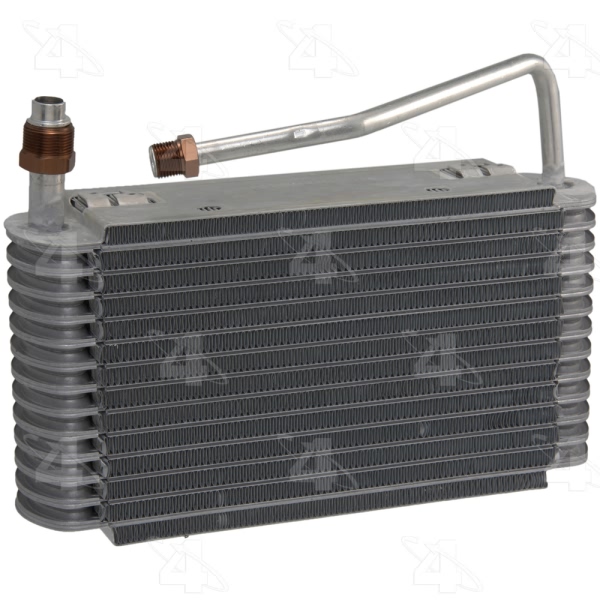

Part Description | A C Evaporator Core |
Core Depth Fraction | 3-1/2 or 3-9/16 |
Core Depth MM | 88.900 or 90.487 |
Core Height Fraction | 7 or 7-1/4 |
Core Height MM | 177.800 or 184.150 |
Core Width Fraction | 13-1/2 or 13-5/8 |
Core Width MM | 342.900 or 346.075 |
Depth | 3.500 or 3.563 |
Height | 7.000 or 7.250 |

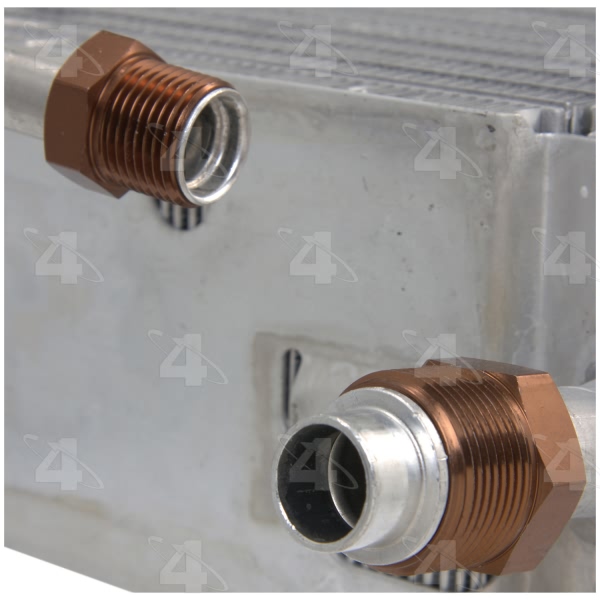

Inlet Fitting Outside Diameter | No. 8 |
Material | Aluminum |
O-Ring A Number/Desc | [24608] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24610] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [38623] / Orifice Tube |
O-Ring C Quantity | 1 |
Outlet Fitting Outside Diameter | No. 10 |
UPC | 096361545861 |
Width | 13.500 or 13.625 |
Year Make Model | Trim | Engine |
---|---|---|
1988 Chevrolet Camaro | All Trims | 8 Cyl 5.7L |
1989-1992 Chevrolet Camaro | All Trims | All Engines |
1988 Pontiac Firebird | All Trims | 8 Cyl 5.7L |
1989-1992 Pontiac Firebird | All Trims | All Engines |
